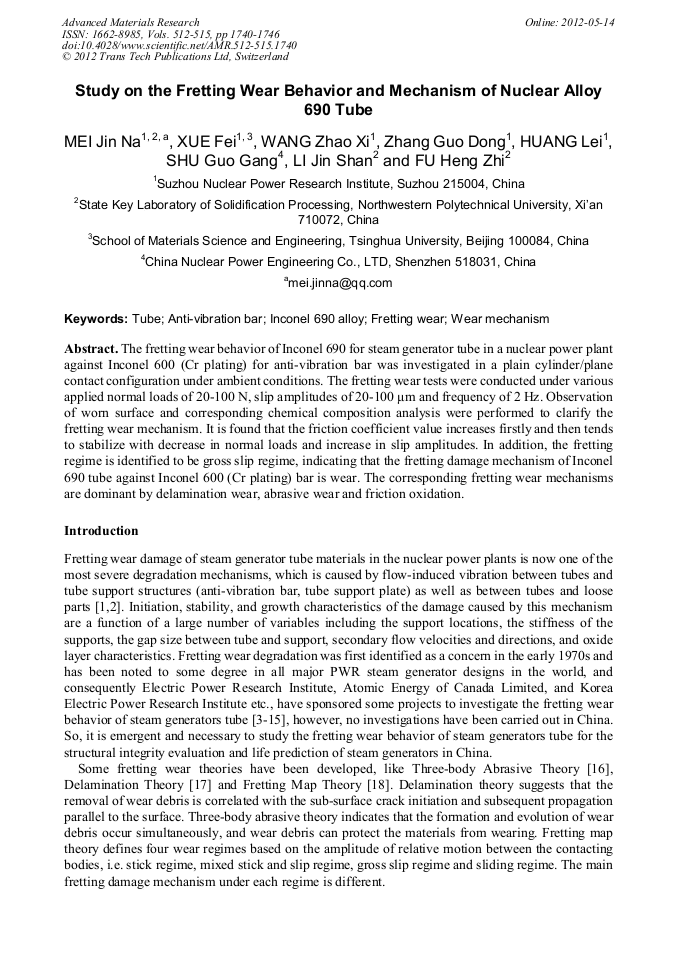

Study on the Fretting Wear Behavior and Mechanism of Nuclear Alloy 690 Tube

Abstract:

The fretting wear behavior of Inconel 690 for steam generator tube in a nuclear power plant against Inconel 600 (Cr plating) for anti-vibration bar was investigated in a plain cylinder/plane contact configuration under ambient conditions. The fretting wear tests were conducted under various applied normal loads of 20-100 N, slip amplitudes of 20-100 μm and frequency of 2 Hz. Observation of worn surface and corresponding chemical composition analysis were performed to clarify the fretting wear mechanism. It is found that the friction coefficient value increases firstly and then tends to stabilize with decrease in normal loads and increase in slip amplitudes. In addition, the fretting regime is identified to be gross slip regime, indicating that the fretting damage mechanism of Inconel 690 tube against Inconel 600 (Cr plating) bar is wear. The corresponding fretting wear mechanisms are dominant by delamination wear, abrasive wear and friction oxidation.

• Periodical: Advanced Materials Research (Volumes 512-515)
• Pages: 1740-1746
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.512-515.1740
• Online since: May 2012
• Authors: Jin Na Mei, Fei Xue, Zhao Xi Wang, Guo Dong Zhang, Lei Huang, Guo Gang Shu, Jin Shan Li, Heng Zhi Fu
• Keywords: Anti-Vibration Bar, Fretting Wear, Inconel 690 Alloy, Tube, Wear Mechanism

References

[1] P.J. Hofmann and T. Schettler. PWR Steam generator tube fretting and fatigue wear. California: EPRI, 1989.

[2] C.Y. Park. Steam generator management program: PWR steam generator tube wear-alloy 690/supports and alloy 690/foreign objects. California: EPRI, 2007.

[3] M.H. Attia and E. Magel. Experimental investigation of long-term fretting wear of multi-span steam generator tubes with U-bend sections. Wear, 1999, 225-229: 563–574.

DOI: 10.1016/s0043-1648(98)00382-2

[4] S.H. Jeong, C.W. Cho and Y.Z. Lee. Friction and wear of Inconel 690 for steam generator tube in elevated temperature water under fretting condition. Tribology International, 2005, 38: 283-288.

DOI: 10.1016/j.triboint.2004.08.012

[5] D.G. Kim and Y.Z. Lee. Experimental investigation on sliding and fretting wear of steam generator tube materials. Wear, 2001, 250: 673-680.

DOI: 10.1016/s0043-1648(01)00676-7

[6] W.S. Lee, C.Y. Liu and T.N. Sun. Deformation behavior of Inconel 690 super alloy evaluated by impact test. Journal of Materials Processing Technology, 2004, 153-154: 219-225.

DOI: 10.1016/j.jmatprotec.2004.04.275

[7] Y.H. LEE, I.S. Kim, S.S. Kang and H.D. Chung. A study on wear coefficients and mechanisms of steam generator tube materials. Wear, 2001, 250: 718-725.

DOI: 10.1016/s0043-1648(01)00680-9

[8] N.J. Fisher, A.B. Chow and M.K. Weckwerth. Experimental fretting-wear studies of steam generator materials. ASME Journal of Pressure Vessel Technology, 1995, 117: 312-320.

DOI: 10.1115/1.2842129

[9] F.M. Guerout, N.J. Fisher, D.A. Grandison and M.K. Weckwerth. Effect of temperature on steam generator fretting-wear. ASME PVP Flow-Induced Vibration, 328, 1996: 233-246.

[10] M. Yetisir, E. Mckerrow, M.J. Pettigrew. Fretting wear damage of heat exchanger tubes: a proposed damage criterion based on tube vibration response. ASME Journal of Pressure Vessel Technology, 1998, 120: 297-305.

DOI: 10.1115/1.2842061

[11] N.J. Fisher, M.J. Olesen, R.J. Rogers and P.L. Ko. Simulation of tube-to-support dynamic interaction in heat exchange equipment. ASME Journal of Pressure Vessel Technology, 1989, 111: 378-384.

DOI: 10.1115/1.3265694

[12] C.Y. Park. Steam generator management program: pressurized water reactor steam generator tube wear-alloy 690/SS316, alloy 690/alloy 690. EPRI Technical Report 1020642, 2010.

DOI: 10.1115/pvp2019-93498

[13] C.Y. Park. Steam generator management program: PWR steam generator tube wear-alloy 690/supports and alloy 690/foreign objects. EPRI Technical Report 1014801, 2007.

[14] M. Rao. Steam generator vibration and wear prediction. EPRI Final Report TR-103502, 1998.

[15] P.J. Hoffman. PWR steam generator tube fretting and wear characteristics. EPRI Final Report TR-103506, 1998.

[16] Y. Berthier, L. Vincent, M. Godet. Velocity accommodation in fretting. Wear, 1988, 125: 25-38.

DOI: 10.1016/0043-1648(88)90191-3

[17] R.B. Waterhouse. The role of adhesion and delamination in the fretting wear of metallic materials. Wear, 1977, 45: 355-364.

DOI: 10.1016/0043-1648(77)90026-6

[18] O. Vingsbo and S. Soderberg. On fretting maps. Wear of Materials, 1987, 2: 885-894.

[19] Z.R. Zhou and M.H. Zhu. Composite fretting wear. Shanghai: Shanghai Jiao Tong University. 2004: 33-39. (In Chinese)

[20] S.Z. Wen and P. Huang. Priciples of Tribology (Third Edition). Beijing: Tsinghua University. 2008: 302-303. (In Chinese)
