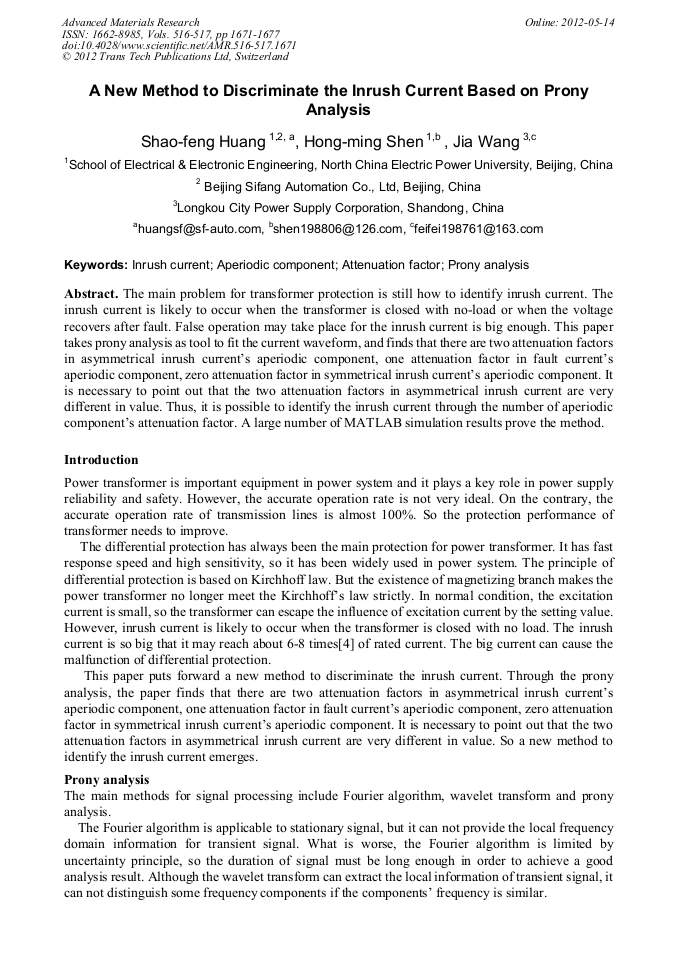

A New Method to Discriminate the Inrush Current Based on Prony Analysis

Abstract:

The main problem for transformer protection is still how to identify inrush current. The inrush current is likely to occur when the transformer is closed with no-load or when the voltage recovers after fault. False operation may take place for the inrush current is big enough. This paper takes prony analysis as tool to fit the current waveform, and finds that there are two attenuation factors in asymmetrical inrush current’s aperiodic component, one attenuation factor in fault current’s aperiodic component, zero attenuation factor in symmetrical inrush current’s aperiodic component. It is necessary to point out that the two attenuation factors in asymmetrical inrush current are very different in value. Thus, it is possible to identify the inrush current through the number of aperiodic component’s attenuation factor. A large number of MATLAB simulation results prove the method.

• Periodical: Advanced Materials Research (Volumes 516-517)
• Pages: 1671-1677
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.516-517.1671
• Online since: May 2012
• Authors: Shao Feng Huang, Hong Ming Shen, Jia Wang
• Keywords: Aperiodic Component, Attenuation Factor, Inrush Current, Prony Analysis

References

[1] Wei CAO, Bin-wei WENG, Chen CHEN: Prony Analysis of Power System Transient Variables, Transactions of China Electrotechnical Society, Vol.6(2000),pp.56-60(In Chinese)

[2] Hauer J F, Demeure C J: Initial Results in Prony Analysis of Power System Response Signals(IEEE Summer Meeting ,California:1989).

[3] Dong-jie XU, Ren-mu HE, Hai-long GAO: Transfer Function Identification Using Iterative Prony Method, Vol.6(2004), pp.40-43(In Chinese)

[4] Bao-hui Zhang, Xiang-gen Yin: Power System Protective Relaying, China Electric Power Press(2004).

[5] Xue Wang: A method to discriminate inrush current based on Prony anlysis, Relay , Vol.6(2007)(In Chines)

[6] Trudnowski D J: Making Prony analysis more accurate using multiple signals (IEEE Transactions on Power System: 1990).

DOI: 10.1109/59.744537

[7] Jun-jie Xiong, Lan-qiu Wan: Prony analysis of Electromechanical Oscillation Based On PMU and Local On line Supervisory System, Southeast University(2007).
