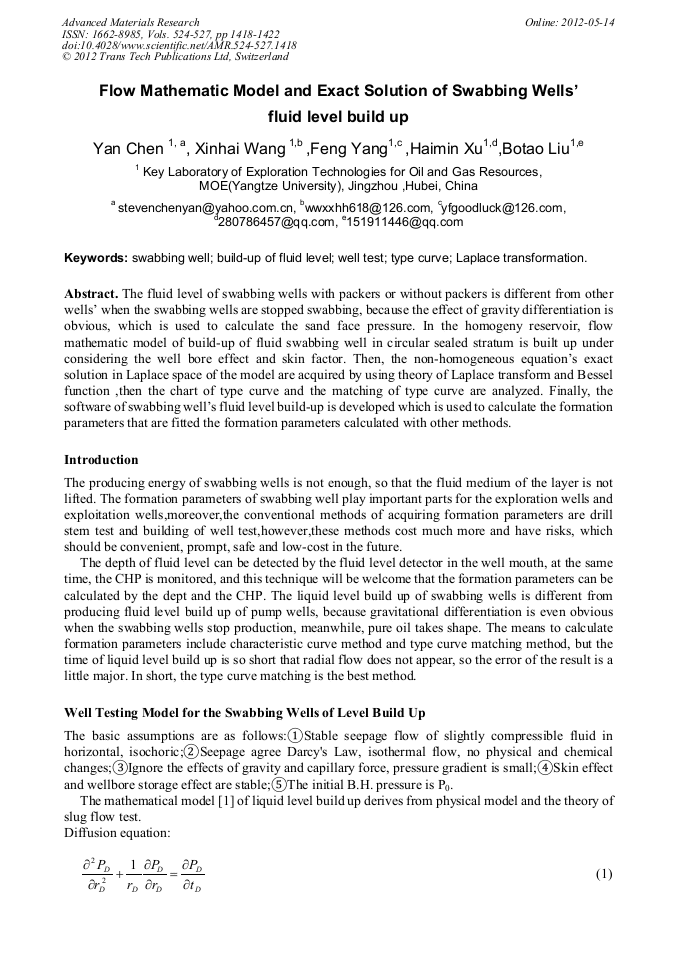

Flow Mathematic Model and Exact Solution of Swabbing Wells’ Fluid Level Build up

Abstract:

The fluid level of swabbing wells with packers or without packers is different from other wells’ when the swabbing wells are stopped swabbing, because the effect of gravity differentiation is obvious, which is used to calculate the sand face pressure. In the homogeny reservoir, flow mathematic model of build-up of fluid swabbing well in circular sealed stratum is built up under considering the well bore effect and skin factor. Then, the non-homogeneous equation’s exact solution in Laplace space of the model are acquired by using theory of Laplace transform and Bessel function ,then the chart of type curve and the matching of type curve are analyzed. Finally, the software of swabbing well’s fluid level build-up is developed which is used to calculate the formation parameters that are fitted the formation parameters calculated with other methods.

• Periodical: Advanced Materials Research (Volumes 524-527)
• Pages: 1418-1422
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.524-527.1418
• Online since: May 2012
• Authors: Yan Chen, Xin Hai Wang, Feng Yang, Hai Min Xu, Bo Tao Liu
• Keywords: Build-up of Fluid Level, Laplace Transformation, Swabbing Well, Type Curve, Well Test

References

[1] Wang Xinhai. Analysis of Flowing Well Testing Data with Hill Shape with Numerical Simulation [J].Well Testing.2001, 10 (3):18-20,In Chinese.

[2] Stehfest H. Numerical inversion of Laplace transforms [J].ACM, 1970, 13(1):47-49.

[3] Han Fengui,Lin Jiaen,Sun Jingli. The Method of Well Testing Analysis Based on Annulus Liquid Level Data[J].Fault-Block Oil & Gas Field.2004,11(6):83-86,In Chinese.

[4] Xue Yongchao. Study on the fractured model of low permeability reservoir in Xinli Oilfield [J].Fault-Block Oil & Gas Field.2010,17(4):462-465,In Chinese.

[5] Xu Chunbi, Yi Jun, Li Wenhua, et.al. Seepage Flow Mathematic Model and Exact Solution of Swabbing Wells [J].Journal of Chongqing University.2000, 23(1):146-149, In Chinese.
