Investigation on Dislocation Network in Al-5.8Cu Aluminum Alloy Impacted Plate

Yu Zhang; Hong Guan; Zhi Guo Gao

doi:10.4028/www.scientific.net/AMR.535-537.1023

Paper Titles

Bending Properties of AA7055 Aluminum Alloy Reinforced with In Situ TiB₂ Particles
p.1005

The Influence of Ni on the Microstructure of Co-Base ODS Alloys
p.1011

Atomistic Simulation for the Site Preference of Tb₃(Fe_28-XCo_X)V_1.0 Compounds
p.1015

Formation Mechanism of Low Angle Boundary of DD6 Single Crystal Superalloy Blades
p.1019

Investigation on Dislocation Network in Al-5.8Cu Aluminum Alloy Impacted Plate
p.1023

A Study on Influence of Annealing and Aging on High Temperature Internal Friction in Al-Zr Alloy
p.1027

Study of Crystal Structural about La_2/3(Ca_(1-X)Zn_X)_1/3MnO₃
p.1031

Precise Re-Os Dating of Molybdenite from the Northern Dabie Molybdenum Belt in Central China and its Geodynamic Implications
p.1035

Synthesis and Structure Determination of Carbonized Nano Mesoporous Materials Based on Vegetable Raw Materials
p.1041

HomeAdvanced Materials ResearchAdvanced Materials Research Vols. 535-537Investigation on Dislocation Network in Al-5.8Cu...

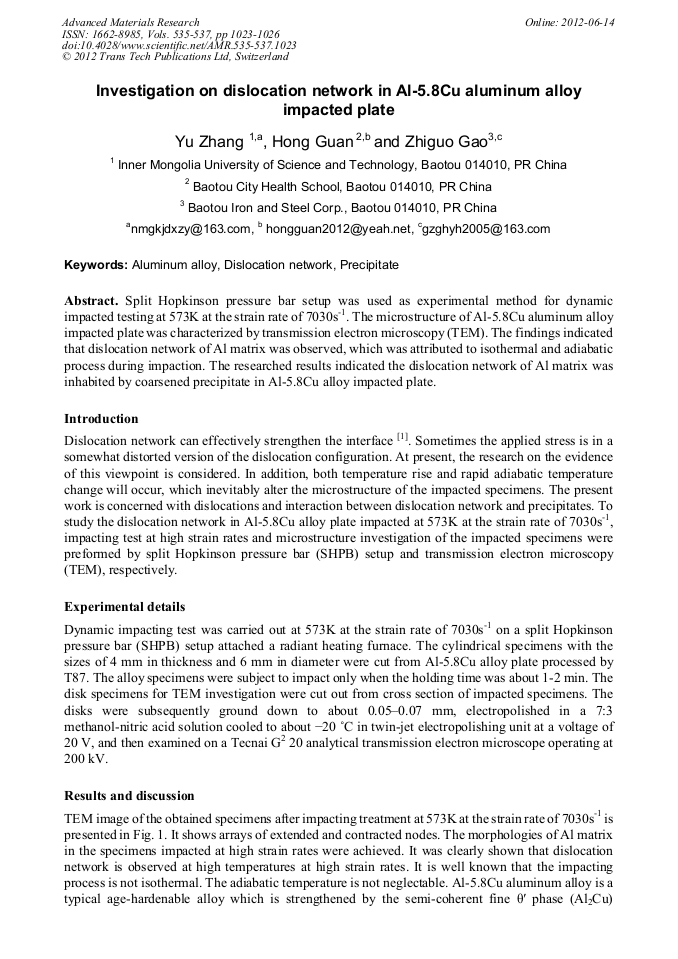

Investigation on Dislocation Network in Al-5.8Cu Aluminum Alloy Impacted Plate

Abstract:

Split Hopkinson pressure bar setup was used as experimental method for dynamic impacted testing at 573K at the strain rate of 7030s-1. The microstructure of Al-5.8Cu aluminum alloy impacted plate was characterized by transmission electron microscopy (TEM). The findings indicated that dislocation network of Al matrix was observed, which was attributed to isothermal and adiabatic process during impaction. The researched results indicated the dislocation network of Al matrix was inhabited by coarsened precipitate in Al-5.8Cu alloy impacted plate.
