Formation Mechanism of Low Angle Boundary of DD6 Single Crystal Superalloy Blades

Article Preview

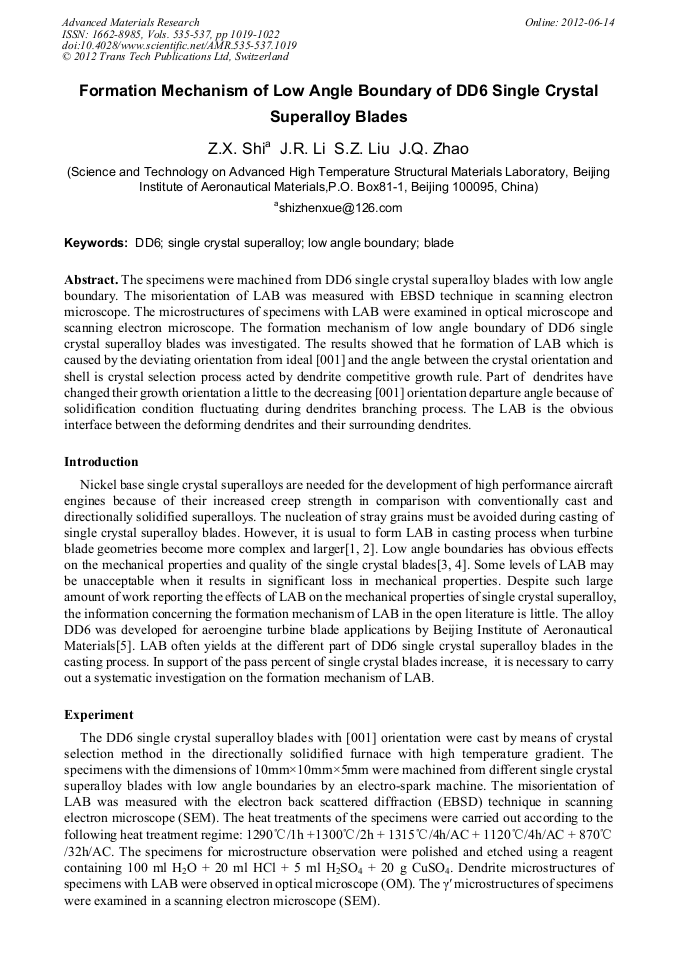

Abstract:

The specimens were machined from DD6 single crystal superalloy blades with low angle boundary. The misorientation of LAB was measured with EBSD technique in scanning electron microscope. The microstructures of specimens with LAB were examined in optical microscope and scanning electron microscope. The formation mechanism of low angle boundary of DD6 single crystal superalloy blades was investigated. The results showed that he formation of LAB which is caused by the deviating orientation from ideal [001] and the angle between the crystal orientation and shell is crystal selection process acted by dendrite competitive growth rule. Part of dendrites have changed their growth orientation a little to the decreasing [001] orientation departure angle because of solidification condition fluctuating during dendrites branching process. The LAB is the obvious interface between the deforming dendrites and their surrounding dendrites.

You might also be interested in these eBooks

Info:

Periodical:

Advanced Materials Research (Volumes 535-537)

Pages:

1019-1022

Citation:

Online since:

June 2012

Export:

Price:

Permissions CCC:

Permissions PLS:

Сopyright:

© 2012 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

[1] M. Gell, D.N. Duhl, A.F. Giamei, in: Superalloys 1980, edtied by J.K. Tien, S.T. Wlodek, M. Gell, American Society for Metal, Metal Park, 1980, p.205

DOI: 10.7449/1980/superalloys_1980_205_214

Google Scholar

[2] D.M. Shah, A. Cetel. in: Superalloys 2000, edtied by T.M. Pollock, R.D. Kissinger, R.R. Bowman, et al. The Minerals, Metals & Materials Society, Warrendale, 2000, p.295

Google Scholar

[3] H. Tamaki, A. Yoshimari, A. Okayama, S. Nakamura. in: Superalloys 2000, edtied by T.M. Pollock, R.D. Kissinger, R.R. Bowman, et al. The Minerals, Metals & Materials Society, Warrendale, 2000, p.766

Google Scholar

[4] K. Harris, J.B. Wahl. in: Superalloys 2004, edtied by K.A. Green, T.M. Pollock, H. Harada, et al, The Minerals, Metals & Materials Society, Warrendale, 2004, p.45

Google Scholar

[5] J.R. Li, Z.G. Zhong, D.Z. Tang, S.Z. Liu, P. Wei, P.Y. Wei, Z.T. Wu, D. Huang, H. Mei. in: Superalloys 2000, edtied by T.M. Pollock, R.D. Kissinger, R.R. Bowman, et al. The Minerals, Metals & Materials Society, Warrendale, 2000, p.777

Google Scholar

[6] N. Siredey, M. Boufoussi, S. Denis, J. Lacaze. Journal of Crystal Growth, 30(1993), p.132

Google Scholar

[7] A. Wagner, B. A. Shollock, M. Mclean. Materials Science and Engineering A, 374(2004), p.270

Google Scholar

[8] K. Dragnevski, A.M. Mullis, D.J. Walker. Acta Mater, 50(2002), p.3743

Google Scholar

[9] L.M. Fabietti, R. Trivedi. Journal of Crystal Growth, 173(1997), p.503

Google Scholar

[10] F. Liu, X.F. Guo, G.C. Yang. Materials Science and Engineering A, 311 (2001), p.54

Google Scholar

[11] N. Stanford, A. Djakovic, B.A. Shollock, M. McLean, N. D'Souza, P.A. Jennings. Scripta Materialia, 2004 (50), p.159

Google Scholar
