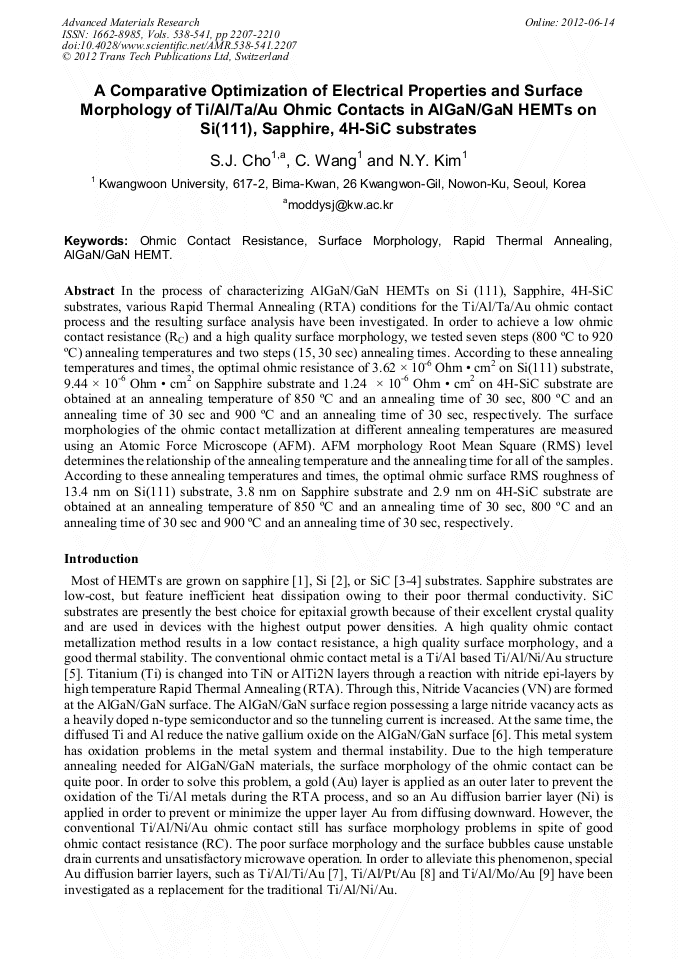

A Comparative Optimization of Electrical Properties and Surface Morphology of Ti/Al/Ta/Au Ohmic Contacts in AlGaN/GaN HEMTs on Si(111), Sapphire, 4H-SiC Substrates

Abstract:

In the process of characterizing AlGaN/GaN HEMTs on Si (111), Sapphire, 4H-SiC substrates, various Rapid Thermal Annealing (RTA) conditions for the Ti/Al/Ta/Au ohmic contact process and the resulting surface analysis have been investigated. In order to achieve a low ohmic contact resistance (RC) and a high quality surface morphology, we tested seven steps (800 °C to 920 °C) annealing temperatures and two steps (15, 30 sec) annealing times. According to these annealing temperatures and times, the optimal ohmic resistance of 3.62 × 10^-6 Ohm • cm² on Si(111) substrate, 9.44 × 10^-6 Ohm • cm² on Sapphire substrate and 1.24 × 10^-6 Ohm • cm² on 4H-SiC substrate are obtained at an annealing temperature of 850 °C and an annealing time of 30 sec, 800 °C and an annealing time of 30 sec and 900 °C and an annealing time of 30 sec, respectively. The surface morphologies of the ohmic contact metallization at different annealing temperatures are measured using an Atomic Force Microscope (AFM). AFM morphology Root Mean Square (RMS) level determines the relationship of the annealing temperature and the annealing time for all of the samples. According to these annealing temperatures and times, the optimal ohmic surface RMS roughness of 13.4 nm on Si(111) substrate, 3.8 nm on Sapphire substrate and 2.9 nm on 4H-SiC substrate are obtained at an annealing temperature of 850 °C and an annealing time of 30 sec, 800 °C and an annealing time of 30 sec and 900 °C and an annealing time of 30 sec, respectively.
