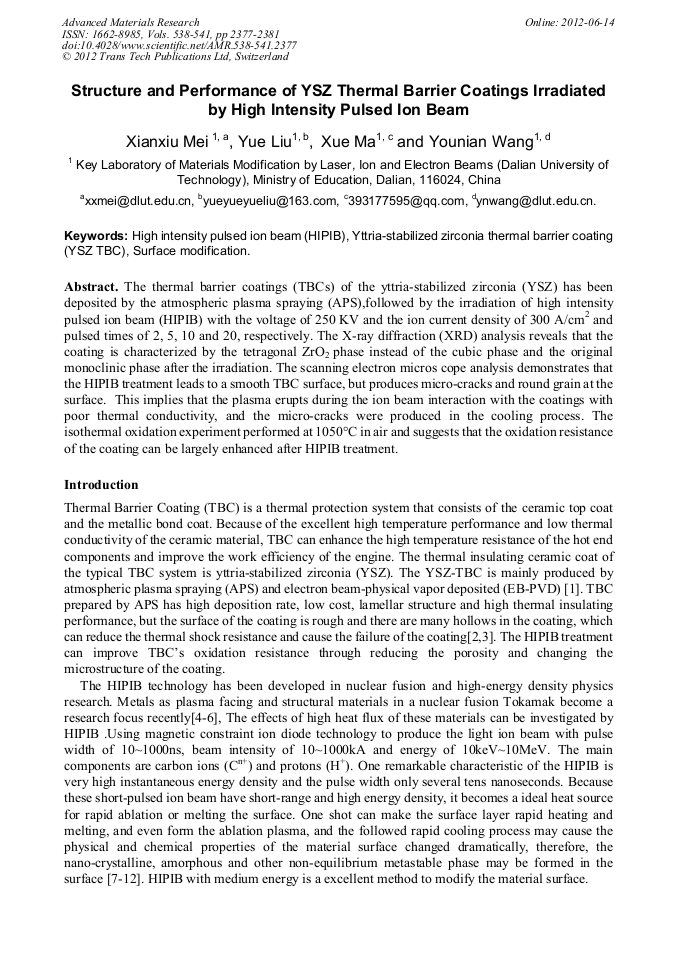

Structure and Performance of YSZ Thermal Barrier Coatings Irradiated by High Intensity Pulsed Ion Beam

Abstract:

The thermal barrier coatings (TBC) of the yttria-stabilized zirconia (YSZ) has been deposited by the atmospheric plasma spraying (APS),followed by the irradiation of high intensity pulsed ion beam (HIPIB) with the voltage of 250 KV and the ion current density of 300 A/cm2 and pulsed times of 2, 5, 10 and 20, respectively. The X-ray diffraction (XRD) analysis reveals that the coating is characterized by the tetragonal ZrO2 phase instead of the cubic phase and the original monoclinic phase after the irradiation. The scanning electron micros cope analysis demonstrates that the HIPIB treatment leads to a smooth TBC surface, but produces micro-cracks and round grain at the surface. This implies that the plasma erupts during the ion beam interaction with the coatings with poor thermal conductivity, and the micro-cracks were produced in the cooling process. The isothermal oxidation experiment performed at 1050°C in air and suggests that the oxidation resistance of the coating can be largely enhanced after HIPIB treatment.

• Periodical: Advanced Materials Research (Volumes 538-541)
• Pages: 2377-2381
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.538-541.2377
• Online since: June 2012
• Authors: Xian Xiu Mei, Yue Liu, Xue Ma, You Nian Wang
• Keywords: High Intensity Pulsed Ion Beam (HIPIB), Surface Modification, Yttria-Stabilized Zirconia Thermal Barrier Coating (YSZ TBC)

References

[1] U.Schulz,et al.Aer. Sci. Technol, 7, 73(2003).

[2] D.Strauss, G.Muller, et.al. Surface Coat. Technol, 135,196(2001).

[3] G.Mueller, V. Engelko.et al., AIP Conf. Proc.650,325(2002).

[4] Yue-Lin Liu, Ying Zhang, Hong-Bo Zhou, and Guang-Hong Lu, Phys Rev B 79, 172103 (2009).

[5] G.Hong-Bo Zhou, Yue-Lin Liu, Shuo Jin, Ying Zhang, G.-N. Luo and Guang-Hong Lu, Nucl Fusion 50, 115010 (2010).

[6] Lei Zhang, Ying Zhang, Wen-Tong Geng and Guang-Hong Lu, Europhys. Lett. 98, 17001 (2012).

[7] A.D. Pogrebnjak, G.E. Remnev, I.G. Romanov, Nucl Instr and Meth B: 43, 41(1989).

[8] V.A. Shulov, N.A. Nochovnaya, G.E. Remnev Mater. Sci.Eng.A,243(1998),p.290.

[9] S. Yan, Y.J. Shang, X.F. Xu et al. Nucl Instr and MethB 272, 450 (2012).

[10] H. A. Davis, G. E. Remnev, K. Yatsui et al. Mater. Res. Bull. 21, 58(1996).

[11] G.E. Remnev, I.F. Isakov, M.S. Opekounov et al. Surface Coat. Technol. 114, 206 (1999).

[12] X. X. Mei, W. F. Sun, S. Z. Hao, et al. Surface Coat. Technol. 201, 5072 (2007)

[13] D. Wu, C. Liu, X.P. Zhu et al. Nucl Instr and MethB 267, 3140 (2009).
