Study on Corrosion Resistance of Al, Ni Brass with Processing State

Abstract:

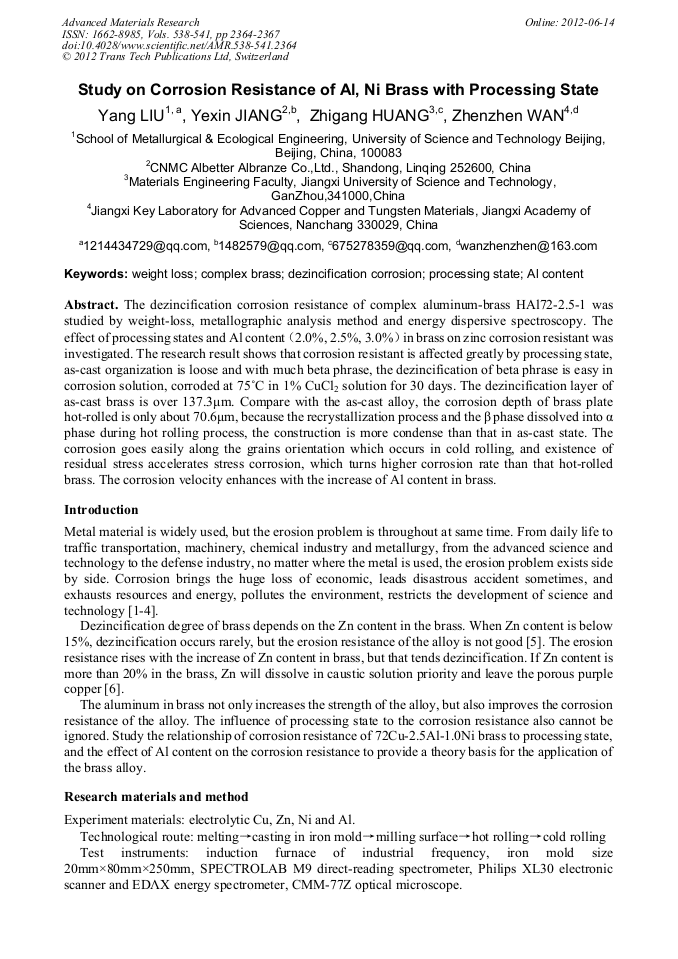

The dezincification corrosion resistance of complex aluminum-brass HAl72-2.5-1 was studied by weight-loss, metallographic analysis method and energy dispersive spectroscopy. The effect of processing states and Al content（2.0%、2.5%、3.0%）in brass on zinc corrosion resistant was investigated. The research result shows that corrosion resistant is affected greatly by processing state, as-cast organization is loose and with much beta phrase, the dezincification of beta phrase is easy in corrosion solution, corroded at 75°C in 1% CuCl₂ solution for 30 days. The dezincification layer of as-cast brass is over 137.3μm. Compare with the as-cast alloy, the corrosion depth of brass plate hot-rolled is only about 70.6μm, because the recrystallization process and the β phase dissolved into α phase during hot rolling process, the construction is more condense than that in as-cast state. The corrosion goes easily along the grains orientation which occurs in cold rolling, and existence of residual stress accelerates stress corrosion, which turns higher corrosion rate than that hot-rolled brass. The corrosion velocity enhances with the increase of Al content in brass.

• Periodical: Advanced Materials Research (Volumes 538-541)
• Pages: 2364-2367
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.538-541.2364
• Online since: June 2012
• Authors: Yang Liu, Yexin Jiang, Zhi Gang Huang, Zhen Zhen Wan
• Keywords: Al Content, Complex Brass, Dezincification Corrosion, Processing State, Weight Loss

References

[1] Qiuxia SUN. Materials Corrosion and Protection. Metallurgical Industry Press, Beijing, (2001).

[2] Yong LI, Yinglu ZHU. Advances in Researches of Dezincification Mechanism of Brass. Corrosion and Protection,Vol. 27(5)(2006), pp.222-225,262.

[3] Jihui WANG, Xiaoxia JIANG, Shizhuo LI. Advances of Researches on the Dezincification Mechanism of Brass.Chinese Journal of Materials Research, Vol. 13(1)(1999), pp.1-8.

[4] Gao KW, Chu W Y, Li H L. Correspondence Between Hydrogen Enhancing Dezincification Layer-Induced Stress and Susceptibility to SCC of brass.Materials Science and Engineering, Vol.4(2004),pp.51-56.

DOI: 10.1016/s0921-5093(03)00322-8

[5] Juan ZHANG, Zhuo LI, Ning TANG, Chang CHEN. Study on Corrosion Behavior of Rare-earth Aluminum Brass in NaCl+NH4Cl Solution. Transactions of Materials and Hear Treatment, Vol. 30(1)(2009),pp.104-108.

[6] Shengli YANG, Yu WU. Advances of Research on the Dezincification Mechanism of Brass. World Nonferrous Metals Vol. 4(2011),pp.50-55.

[7] Ning TANG, Zhuo LI, Jianyi CHENG, Zhu XIAO. Study of corrosion behavior of aluminum brass with Rare-earth in NaCl Solution. Transactions of Materials and Hear Treatment, 2007, 28(6):104-108.

[8] Mingjun JIANG, Xiaochuan GUO, Jun YANG. The characteristics and Protective Methods of Brass Dezincification Corrosion. Journal of Logistical Engineering University,Vol.24(4) (2008), pp.35-39.

[9] Xianzhong GUO, Kewei GAO, Lijie QIAO.SCC Susceptibility and its Correspondence to Dezincification Layer-Induced Stress for Brass. Acta Metallurgica Sinica, Vol. 36 (7)(2000),pp.753-756.

[10] Ruiqing Liu, Wenjin Shang, Zhigang Huang, Yuxia Wang. Effects of annealing temperature and Al content on microstructures and properties of Al-brass. Procedia Engineering, Vol. 27(2012), pp.1823-1828.

DOI: 10.1016/j.proeng.2011.12.656
