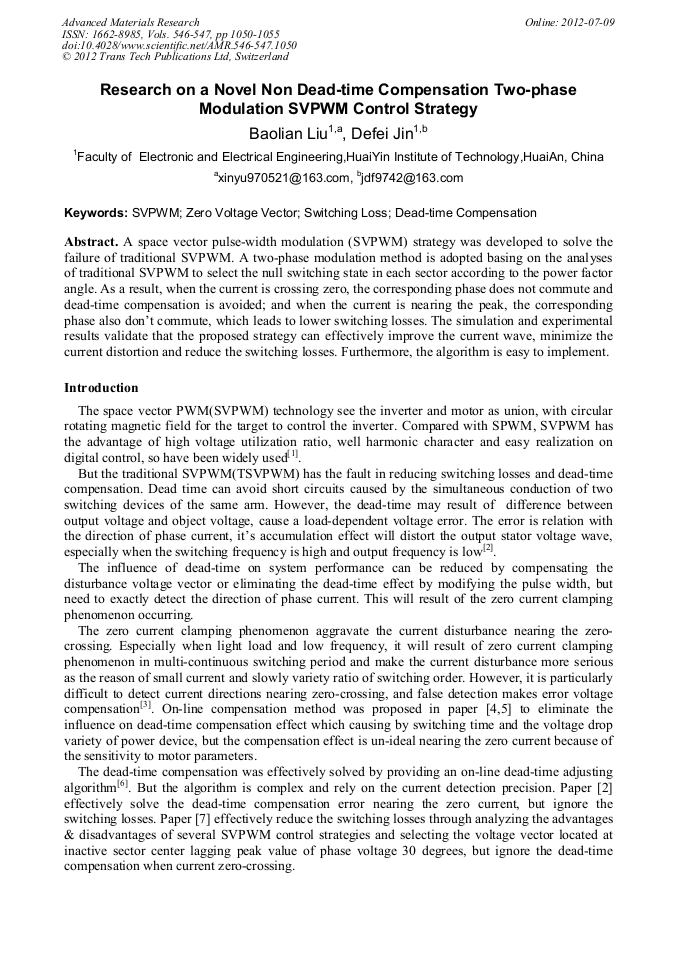

Research on a Novel Non Dead-Time Compensation Two-Phase Modulation SVPWM Control Strategy

Abstract:

A space vector pulse-width modulation (SVPWM) strategy was developed to solve the failure of traditional SVPWM. A two-phase modulation method is adopted basing on the analyses of traditional SVPWM to select the null switching state in each sector according to the power factor angle. As a result, when the current is crossing zero, the corresponding phase does not commute and dead-time compensation is avoided; and when the current is nearing the peak, the corresponding phase also don’t commute, which leads to lower switching losses. The simulation and experimental results validate that the proposed strategy can effectively improve the current wave, minimize the current distortion and reduce the switching losses. Furthermore, the algorithm is easy to implement.

• Periodical: Advanced Materials Research (Volumes 546-547)
• Pages: 1050-1055
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.546-547.1050
• Online since: July 2012
• Authors: Bao Lian Liu, De Fei Jin
• Keywords: Dead-Time Compensation, SVPWM, Switching Loss, Zero Voltage Vector

References

[1] A M Trzynadlowski, R L Kirlin, S F Legowski. Space Vector PWM Technique with Minimum Switching Losses and a Variable Pulse Rate[J]. IEEE Trans on Industrial Electornics, 1997, 44(2), pp.173-181.

DOI: 10.1109/41.564155

[2] Cheng Xiaomeng, Lu Haifeng, Qu Wenlong. SVPWM Strategy for Inverter Dead time Compensation[J]. Journal of Tsing hua Univ (Sci&Tech), 2008, Vol. 48, No. 7, pp.1077-1080.

[3] Attaianese C, Tomasso G. P Redictive Compensation of dead-time Effects in VSI Feeding Induction Motors[J]. IEEE Trans on Industry Applications, 2001, 37(3), pp.856-863.

DOI: 10.1109/28.924768

[4] Urasaki N, Senjyu T, Uezato K, etal. On-line dead-time Compensation Method for Permanent Magnet Synchronous Motor Drive[C]. IEEE ICIT'02, 2002, pp.268-273.

DOI: 10.1109/icit.2002.1189905

[5] Hyun Soo Kim, Hyung Tae Moon, Myung-Joong Youn. On-line dead-time compensation method using disturbance observer[J]. IEEE Transactions on Power Electronics, 2003, 18(6), pp.1336-1345.

DOI: 10.1109/tpel.2003.818833

[6] Urasaki N, Senjyu T, Uezato K, et al. On-line dead-time compensation method for voltage source inverter fed motor drives[C]. IEEE APEC'04, 2004, pp.122-127.

DOI: 10.1109/apec.2004.1295798

[7] He Zheng-yi, Ji Xue-wu, Qu Wen-. A Novel SVPWM Compensation Strategy Based on Regulating Dead Time On-Line[J]. Trans of China Electrotechnical society 2009, Vol. 24, No. 6, pp.42-47.

[8] Wang Jin-dong, Zhang He-sheng. Study on Optimal Space Vector Pulse Width Modulation Strategies for AC Motor[J]. Power Electronics 2009, Vol. 43, No. 9, pp.55-57.

[9] Zhang Yinhai, Wang Songsong, Ge Jinfa. A Novel SVPWM Modulation Method. TRANSACTIONS OF CHINA ELECTROTECHNICAL SOCIETY, 2010, 25(8), pp.99-103.

[10] Wan Jianru, Wei Zhiqiang, Li Lian. A Novel Control Method for the Problem of SVPWM Dead-Time. TRANSACTIONS OF CHINA ELECTROTECHNICAL SOCIETY, 2006, vol21, No. 7, pp.105-108.
