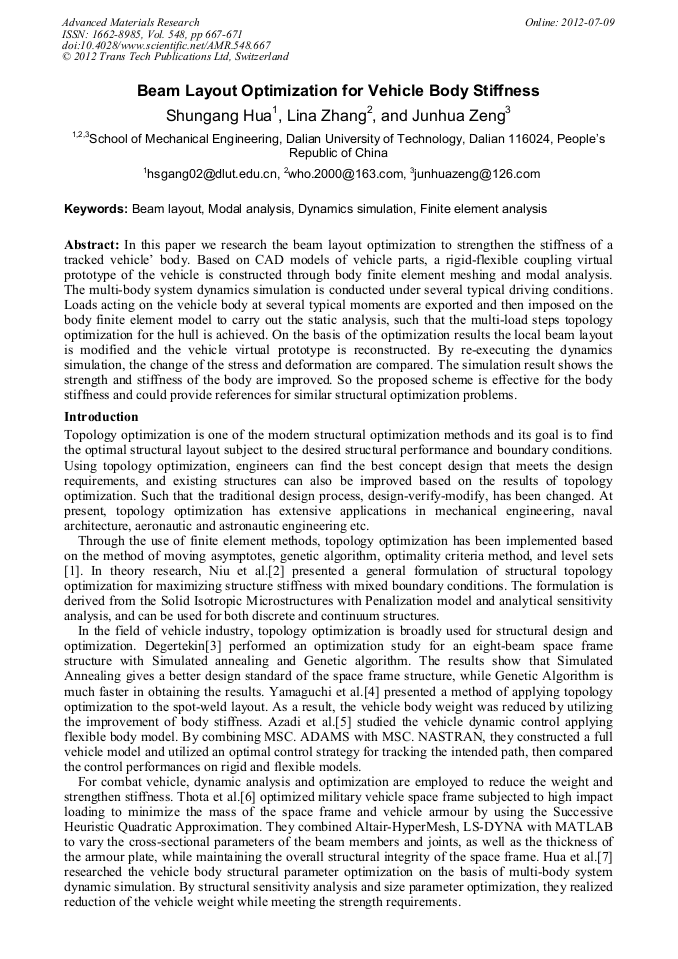

Beam Layout Optimization for Vehicle Body Stiffness

Abstract:

In this paper we research the beam layout optimization to strengthen the stiffness of a tracked vehicle’ body. Based on CAD models of vehicle parts, a rigid-flexible coupling virtual prototype of the vehicle is constructed through body finite element meshing and modal analysis. The multi-body system dynamics simulation is conducted under several typical driving conditions. Loads acting on the vehicle body at several typical moments are exported and then imposed on the body finite element model to carry out the static analysis, such that the multi-load steps topology optimization for the hull is achieved. On the basis of the optimization results the local beam layout is modified and the vehicle virtual prototype is reconstructed. By re-executing the dynamics simulation, the change of the stress and deformation are compared. The simulation result shows the strength and stiffness of the body are improved. So the proposed scheme is effective for the body stiffness and could provide references for similar structural optimization problems.

• Periodical: Advanced Materials Research (Volume 548)
• Pages: 667-671
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.548.667
• Online since: July 2012
• Authors: Shun Gang Hua, Li Na Zhang, Jun Hua Zeng
• Keywords: Beam Layout, Dynamic Simulation, Finite Element Analysis (FEA), Modal Analysis

References

[1] M.P. Bendsoe and O. Sigmund, Topology Optimization: Theory, Methods and Applications [M] . Berlin : Springer , (2003).

[2] F. Niu, S.L. Xu and G.D. Cheng: A general formulation of structural topology optimization for maximizing structural stiffness, Struct. Multidisc. Optim. Springer-Verlag (2010).

DOI: 10.1007/s00158-010-0585-8

[3] S.O. Degertekin: A Comparison of Simulated Annealing and Genetic Algorithm for Optimum Design of Nonlinear Steel Space Frames, Struct. Multidisc. Optim., 2007, Vol. 34, pp.347-359.

DOI: 10.1007/s00158-007-0096-4

[4] A. Yamaguchi, G. Wakana, K. Obayashi, T. Okabe and M. Bechtel: Spot-weld Layout Optimization for Body Stiffness by Topology Optimization. SAE, 2008-01-0878.

DOI: 10.4271/2008-01-0878

[5] A. Shahram, A. Masoud and H. Mohsen: Vehicle dynamic control of a passenger car applying flexible body model, Vehicle System Dynamics, 2010, v 48, n 5, pp.587-617.

DOI: 10.1080/00423110902974092

[6] J. Thota, M.B. Trabia and B.J. O'Toole: Optimization of A Military Vehicle Space Frame Subject to High Impact Loading. ASME International Mechanical Engineering Congress and Exposition. IMECE2008, pp.47-55.

DOI: 10.1115/imece2008-66979

[7] S.G. Hua, Z.H. Zhu and L.N. Zhang: Vehicle Body Structural Parameter Optimization Based on Dynamics simulation, Proceedings of the International Conference on Advanced Technology of Design and Manufacture 2010, pp.51-55.

DOI: 10.1049/cp.2010.1259

[8] JOÃO P. C. GONÇALVES and JORGE A. C. AMBRÓSIO: Optimization of vehicle suspension Systems for improved comfort of road vehicles using flexible multi-body dynamics. Nonlinear Dynamics, 2003, 34: 113-131.

DOI: 10.1023/b:nody.0000014555.46533.82
