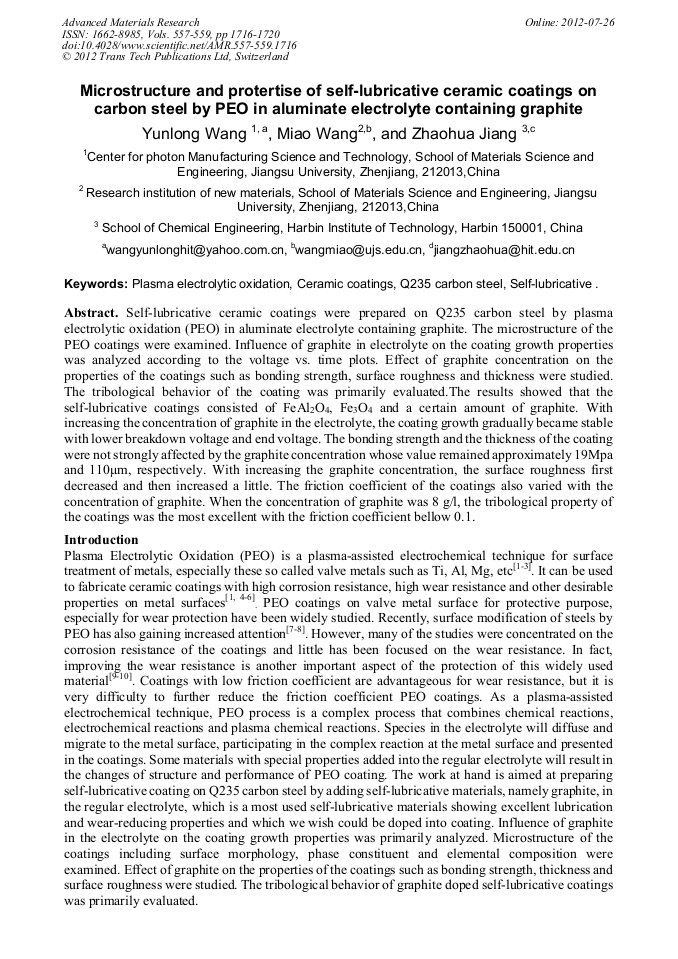

Microstructure and Protertise of Self-Lubricative Ceramic Coatings on Carbon Steel by PEO in Aluminate Electrolyte Containing Graphite

Abstract:

Self-lubricative ceramic coatings were prepared on Q235 carbon steel by plasma electrolytic oxidation (PEO) in aluminate electrolyte containing graphite. The microstructure of the PEO coatings were examined. Influence of graphite in electrolyte on the coating growth properties was analyzed according to the voltage vs. time plots. Effect of graphite concentration on the properties of the coatings such as bonding strength, surface roughness and thickness were studied. The tribological behavior of the coating was primarily evaluated.The results showed that the self-lubricative coatings consisted of FeAl₂O₄, Fe₃O₄ and a certain amount of graphite. With increasing the concentration of graphite in the electrolyte, the coating growth gradually became stable with lower breakdown voltage and end voltage. The bonding strength and the thickness of the coating were not strongly affected by the graphite concentration whose value remained approximately 19Mpa and 110μm, respectively. With increasing the graphite concentration, the surface roughness first decreased and then increased a little. The friction coefficient of the coatings also varied with the concentration of graphite. When the concentration of graphite was 8 g/l, the tribological property of the coatings was the most excellent with the friction coefficient bellow 0.1.

• Periodical: Advanced Materials Research (Volumes 557-559)
• Pages: 1716-1720
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.557-559.1716
• Online since: July 2012
• Authors: Yun Long Wang, Miao Wang, Zhao Hua Jiang
• Keywords: Ceramic Coating, Plasma Electrolytic Oxidation, Q235 Carbon Steel, Self-Lubricative

References

[1] A.L Yerokhin, X. Nie, A. Leyland, A. Matthews, J. Doweys, Plasma electrolysis for surface engineering, Surf Coat Technol. 122 (1999) 73-93.

DOI: 10.1016/s0257-8972(99)00441-7

[2] L. M. Chang, Growth regularity of ceramic coating on magnesium alloy by plasma electrolytic oxidation, J. Alloys Compd. 468 (2009) 462-465.

DOI: 10.1016/j.jallcom.2008.01.069

[3] Z.P. Yao, Y.L. Jiang, Z. H. Jiang, F. P. Wang, Z. D. Wu, Preparation and structure of ceramic coatings containing zirconium oxide on Ti alloy by plasma electrolytic oxidation, J. Mater. Process. Technol. 205 (2008) 303-307.

DOI: 10.1016/j.jmatprotec.2007.11.112

[4] S. H. Cui, J.M. Han, W.J. Li, S. B. Kang, J.M. Lee, Study on wear behavior of plasma electrolytic oxidation coatings on aluminum alloy, Rare Metals. 25 (2006) 141-145

DOI: 10.1016/s1001-0521(08)60069-8

[5] R.C. Barik, J.A. Wharton, R.J.K. Wood, K.R. Stokes, R.L. Jones, Corrosion, erosion and erosion–corrosion performance of plasma electrolytic oxidation (PEO) deposited Al2O3 coatings,Surf Coat Technol. 199 ( 2005) 158-167

DOI: 10.1016/j.surfcoat.2004.09.038

[6] F.Y. Jin, K. Wang, M. Zhu, L.R. Shen, J. Li, H. H. Hong, K. Paul, Infrared reflection by alumina films produced on aluminum alloy by plasma electrolytic oxidation, Mate. Chem. Phys. 114 (2009) 398-401

DOI: 10.1016/j.matchemphys.2008.09.060

[7] W. C. Gu, G. H. Lv, H. Chen, G. L. Chen, Preparation of ceramic coatings on inner surface of steel tubes using a combined technique of hot-dipping and plasma electrolytic oxidation, J. Alloys Compd. 430 (2007) 308

DOI: 10.1016/j.jallcom.2006.05.030

[8] Z. Q. Wu, Y. Xia, G. Li, F. T. Xu, Structure and mechanical properties of ceramic coatings fabricated by plasma electrolytic oxidation on aluminized steel, Appl. Surf. Sci.,253 (2007) 8398-8403

DOI: 10.1016/j.apsusc.2007.04.007

[10] X. Nie, Q. Hao, M. Wei, J. Wuhan Univ, A novel modification technique for metal surface, Technol. Mater. Sci. Ed. 33 (1996) 28-34

[11] H. E. Haring, The Mechanism of Electrolytic Rectification, J. Electrochem. Soc., 99 (1952) 30-37

[12] S.B. Du, S.Y. Song, X.H. Fan, N.C., Phosphatic Film as Lubricant Used in Gun Processing Gu, Lubr. Eng. 1 (1991) 40-42 (in Chinese)

[13] H. D. Wang, B. S. Xu, J. J. Liu, D. M. Zhuang, The tribological properties of solid lubrication graphite coatings prepared by a sol–gel method, Carbon, 43 (2005) 2017-202.

DOI: 10.1016/j.carbon.2005.02.030
