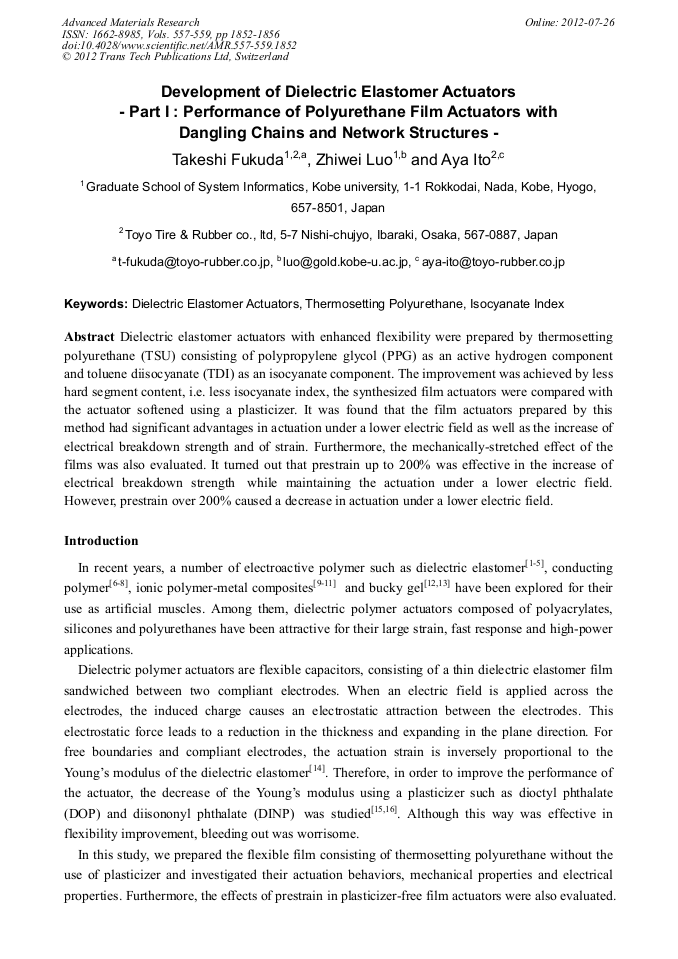

Development of Dielectric Elastomer Actuators - Part I: Performance of Polyurethane Film Actuators with Dangling Chains and Network Structures

Abstract:

Dielectric elastomer actuators with enhanced flexibility were prepared by thermosetting polyurethane (TSU) consisting of polypropylene glycol (PPG) as an active hydrogen component and toluene diisocyanate (TDI) as an isocyanate component. The improvement was achieved by less hard segment content, i.e. less isocyanate index, the synthesized film actuators were compared with the actuator softened using a plasticizer. It was found that the film actuators prepared by this method had significant advantages in actuation under a lower electric field as well as the increase of electrical breakdown strength and of strain. Furthermore, the mechanically-stretched effect of the films was also evaluated. It turned out that prestrain up to 200% was effective in the increase of electrical breakdown strength while maintaining the actuation under a lower electric field. However, prestrain over 200% caused a decrease in actuation under a lower electric field.

• Periodical: Advanced Materials Research (Volumes 557-559)
• Pages: 1852-1856
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.557-559.1852
• Online since: July 2012
• Authors: Takeshi Fukuda, Zhi Wei Luo, Aya Ito
• Keywords: Dielectric Elastomer Actuators, Isocyanate Index, Thermosetting Polyurethane

References

[1] R. Pelrine, R. Kornbluh, Q. Pei and J. Joseph: Science, 287, 836 (2000)

[2] R. Kornbluh, R. Pelrine, Q. Pei, S. Oh and J. Joseph: Proc. of SPIE, 3987, 51 (2000).

[3] T. Hirai, H. Sadatoh, T. Ueda, T. Kasazaki, Y. Kurita, M. Hirai and S. Hayashi: Makromol. Chem., 240, 221 (1996)

DOI: 10.1002/apmc.1996.052400121

[4] M. Watanabe, H. Shirai and T. Hirai: J. Appl. Phys., 90, 6316 (2001)

[5] Nam-Ju Jo, Do-Hee Lim, Gyeong-Mi Bark, Ho-Hwan Chun, In-Won Lee, Hyun Park: J. Mater. Sci. Technol., 26(8), 763 (2010)

[6] K.Kaneto, M. Kaneko, Y. Min and A.G.. MacDiarmid: Synth. Met.,71, 2211 (1995)

[7] S. Hara, T. Zama, W. Takashima and K. Kaneto: Synth. Met., 156, 351 (2006)

[8] S. Skaarup, L. Bay and K. West: Synth. Met., 157, 323 (2007)

[9] K.J. Kim and M. Shahinpoor: Polymer, 43, 797 (2002)

[10] M. Shahinpoor and K.J. Kim: Smart Mater. Struct., 14 197 (2005)

[11] XL. Wang, IK. Oh, J. Lu and S. Lee: Mater. Struct., 61, 5117 (2007)

[12] T. Fukushima, K. Asaka, A. Kosaka and T. Aida: Angew. Chem. Int. Ed., 44, 2410 (2005).

[13] K. Mukai, K. Asaka, K. Kiyohara, T. Sugino, I. Takeuchi, T. Fukushima, T. Aida: Electrochimica Acta., 53, 5555 (2008)

DOI: 10.1016/j.electacta.2008.02.113

[14] R. Pelrine, R. Kornbluh and J. Joseph: Sensors and Actuators A: Physical , 64（１）, 77 (1998)

[15] T. Hirai, T. Sugino and T. Kasazaki: J.P. Patent 3026042 (2000)

[16] H. Okuda, H. Yoshikawa, N. Katayama, A. Kobayashi and K. Hashimoto: J.P. Patent 2010−219380A (2010)

[17] D.M. Opris, M. Molberg, F. Nüesch, C. Löwe, C. Walder and B. Fischer: Proc. of SPIE, 7976, 7960G (2011).

[18] Y. Jang, T. Hirai, T. Ueki and T. Kato: Polym Int 2012, 61, 228 (2012)
