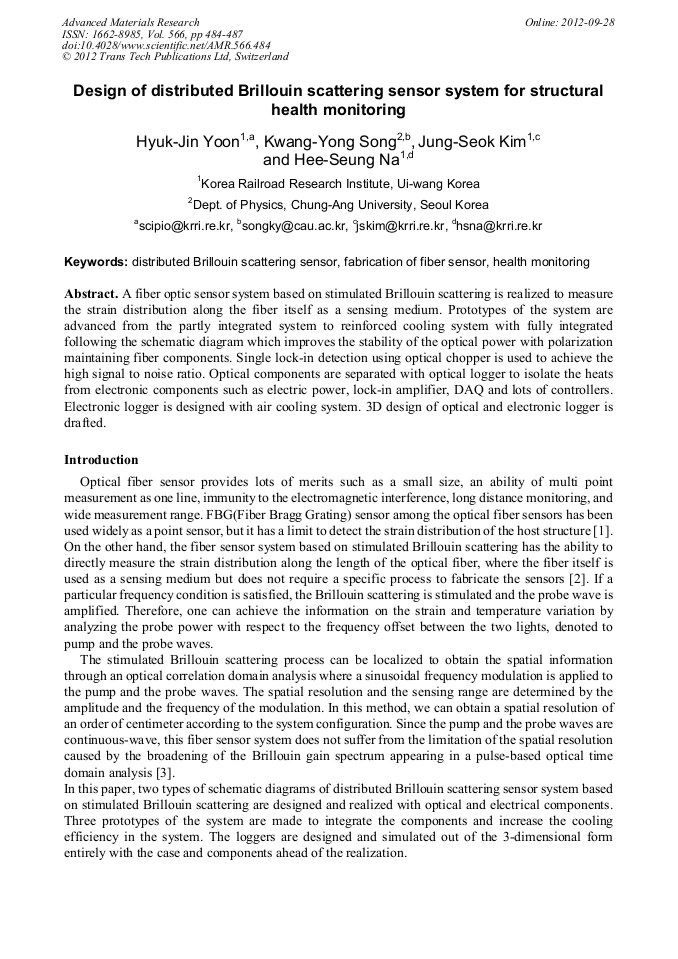

Design of Distributed Brillouin Scattering Sensor System for Structural Health Monitoring

Abstract:

A fiber optic sensor system based on stimulated Brillouin scattering is realized to measure the strain distribution along the fiber itself as a sensing medium. Prototypes of the system are advanced from the partly integrated system to reinforced cooling system with fully integrated following the schematic diagram which improves the stability of the optical power with polarization maintaining fiber components. Single lock-in detection using optical chopper is used to achieve the high signal to noise ratio. Optical components are separated with optical logger to isolate the heats from electronic components such as electric power, lock-in amplifier, DAQ and lots of controllers. Electronic logger is designed with air cooling system. 3D design of optical and electronic logger is drafted.

• Periodical: Advanced Materials Research (Volume 566)
• Pages: 484-487
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.566.484
• Online since: September 2012
• Authors: Hyuk Jin Yoon, Kwang Yong Song, Jung Seok Kim, Hee Seung Na
• Keywords: Distributed Brillouin Scattering Sensor, Fabrication of Fiber Sensor, Health Monitoring

References

[1] H.J. Yoon and G.G. Kim: Smart materials & structures Vol. 16(4) (2007), pp.1315-1319.

[2] X. Bao, J. Dhliwayo, N. Heron, D.J. Webb and D.A. Jackson: Journal of lightwave technology Vol. 13(7) (1995), pp.1340-1348.

DOI: 10.1109/50.400678

[3] K. Hotate and T. Hasegawa: IEICE transactions on electronics Vol. 83(3) (2000), pp.405-412.

[4] R. Bernini, A. Minardo and L. Zeni: Sensors, 2002. Proceedings of IEEE, pp.1006-1011.

[5] H.J. Yoon, K.Y. Song, J.S. Kim and D.S. Kim: NDT&E International Vol. 44 (2011), pp.637-644.
