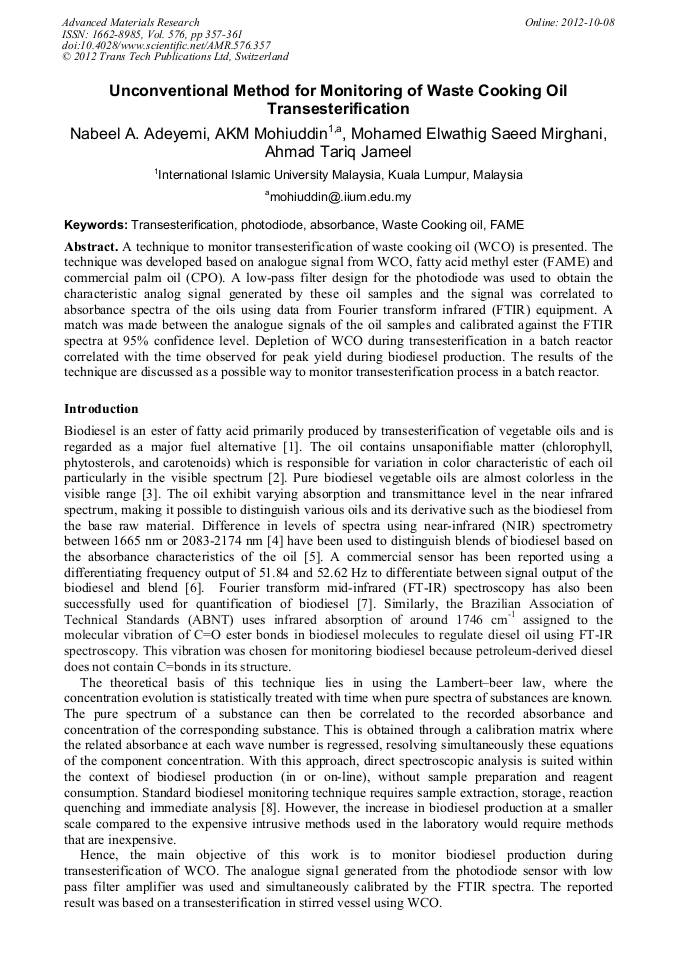

Unconventional Method for Monitoring of Waste Cooking Oil Transesterification

Abstract:

A technique to monitor transesterification of waste cooking oil (WCO) is presented. The technique was developed based on analogue signal from WCO, fatty acid methyl ester (FAME) and commercial palm oil (CPO). A low-pass filter design for the photodiode was used to obtain the characteristic analog signal generated by these oil samples and the signal was correlated to absorbance spectra of the oils using data from Fourier transform infrared (FTIR) equipment. A match was made between the analogue signals of the oil samples and calibrated against the FTIR spectra at 95% confidence level. Depletion of WCO during transesterification in a batch reactor correlated with the time observed for peak yield during biodiesel production. The results of the technique are discussed as a possible way to monitor transesterification process in a batch reactor.

• Periodical: Advanced Materials Research (Volume 576)
• Pages: 357-361
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.576.357
• Online since: October 2012
• Authors: Nabeel A. Adeyemi, A.K.M. Mohiuddin, Mohamed Elwathig Saeed Mirghani, Ahmad Tariq Jameel
• Keywords: Absorbance, FAME, Photodiode, Transesterification, Waste Cooking Oil (WCO)

References

[1] Berrios M, Skelton R. Comparison of purification methods for biodiesel. Chemical Engineering Journal. 144 (2008) 459-65.

DOI: 10.1016/j.cej.2008.07.019

[2] O'Connor RT, Field ET, Jefferson M, Dollear F. The influence of processing on the spectral properties of vegetable oils. Journal of the American Oil Chemists' Society. 26 (1949) 710-8.

DOI: 10.1007/bf02903179

[3] Zawadzki A. Biodiesel quality sensing using spectroscopy and artificial intelligence. (2008).

[4] Knothe G. Analyzing biodiesel: standards and other methods. Journal of the American Oil Chemists' Society. 83 (2006) 823-33.

DOI: 10.1007/s11746-006-5033-y

[5] B.N. Murthy, J.B. Joshi. Assessment of standard k–e, RSM and LES turbulence models in a baffled stirred vessel agitated by various impeller designs. Chemical Engineering Science. 63 (2008) 5468-95.

DOI: 10.1016/j.ces.2008.06.019

[6] Shrestha D, Artur Z. Biodiesel/diesel blend level detection using absorbance. Google Patents; (2007).

[7] Aliske MA, Zagonel GF, Costa BJ, Veiga W, Saul CK. Measurement of biodiesel concentration in a diesel oil mixture. Fuel. 86 (2007) 1461-4.

DOI: 10.1016/j.fuel.2006.11.008

[8] David F, Sandra P, Wylie PL. Improving the Analysis of Fatty Acid Methyl Esters Using Retention Time Locked Methods and Retention Time Databases: Application Food. In: Agilent Technologies I, editor. Agilent Application Note2003.

[9] Cleveland W. Robust locally weighted regression and smoothing scatterplots. Journal of the American Statistical Association. 74 (1979) 829-36.

DOI: 10.1080/01621459.1979.10481038

[10] Smith B. Infrared spectral interpretation: A Systematic Approach. CRC Press, Boca Raton; (1999).

[11] Adeyemi NA, Mohiuddin A, Jameel T. Waste Cooking Oil Transesterification: Influence of Impeller type, Speed and Bottom Clearance on FAME Yield. 2nd International Conference on Biotechnology Engineering ICBioE'11. Kuala Lumpur2011. pp.500-7.

DOI: 10.5897/ajb11.961
