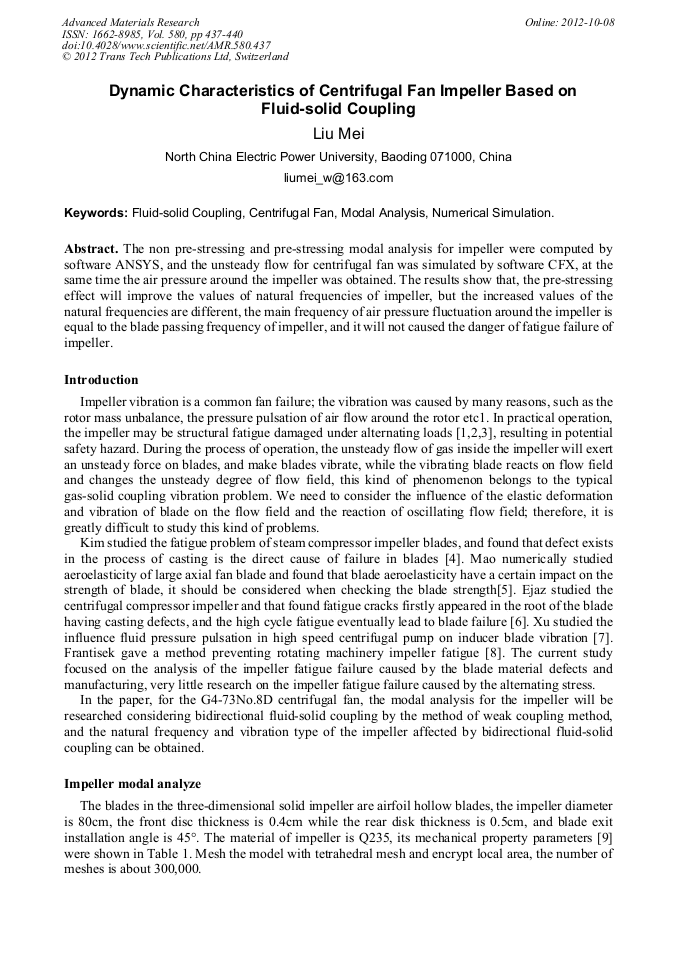

Dynamic Characteristics of Centrifugal Fan Impeller Based on Fluid-Solid Coupling

Abstract:

The non pre-stressing and pre-stressing modal analysis for impeller were computed by software ANSYS, and the unsteady flow for centrifugal fan was simulated by software CFX, at the same time the air pressure around the impeller was obtained. The results show that, the pre-stressing effect will improve the values of natural frequencies of impeller, but the increased values of the natural frequencies are different, the main frequency of air pressure fluctuation around the impeller is equal to the blade passing frequency of impeller, and it will not caused the danger of fatigue failure of impeller.

• Periodical: Advanced Materials Research (Volume 580)
• Pages: 437-440
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.580.437
• Online since: October 2012
• Authors: Mei Liu
• Keywords: Centrifugal Fan, Fluid Solid Coupling, Modal Analysis, Numerical Simulation

References

[1] J. Y. Liu, Editor, The Power Station Fan Restructures and Analysis Reliability, China Electric Power Press, Beijing (2002) , p.127.

[2] S. T. Li and Q. Y. Xu, Chinese Journal of Applied Mechanics. Vol. 3, 24 (2007) , p.353.

[3] H. Bourgeois, E. Dougherty and Phillips, Hydrocarbon Engineering. Vol. 5, 8 (2003) , p.61.

[4] T. G. Kim and H. C. Lee, Engineering Failure Analysis. Vol. 6, 17 (2003) , p.307.

[5] J. Mao, L. G. Yang and Y. H. Xi, Chinese Journal of Mechanical Engineering. Vol. 11, 45 (2009) , p.133.

[6] N. Ejaz, I. Salam and A. Tauqir, Engineering Failure Analysis. Vol. 7, 14 (2007) , p.313.

[7] Z. H. Xu, The Three-dimensional Unsteady Flow Vibration Analysis for High-speed Centrifugal Pump, Tsinghua University, Beijing (2003).

[8] L. Frantisek and Eisinger, Journal of Pressure Vessel Technology. Vol. 124 (2002) , p.154.

[9] A. X. Ma, Mechanics of Materials, Advanced Education Press, Beijing (1979).
