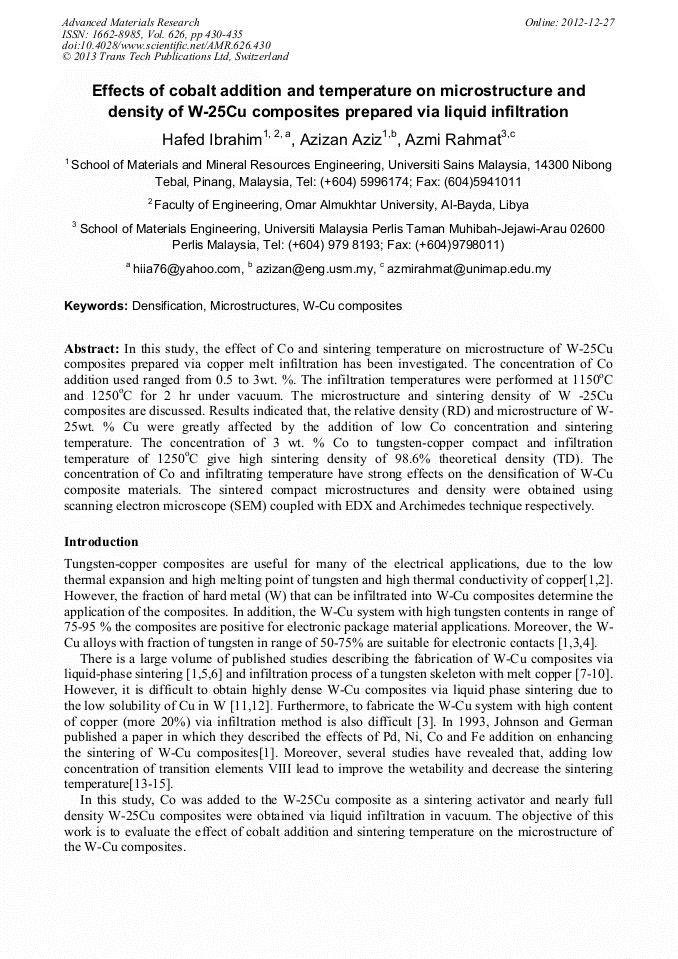

Effects of Cobalt Addition and Temperature on Microstructure and Density of W-25Cu Composites Prepared via Liquid Infiltration

Abstract:

In this study, the effect of Co and sintering temperature on microstructure of W-25Cu composites prepared via copper melt infiltration has been investigated. The concentration of Co addition used ranged from 0.5 to 3wt. %. The infiltration temperatures were performed at 1150°C and 1250°C for 2 hr under vacuum. The microstructure and sintering density of W-25Cu composites are discussed. Results indicated that, the relative density (RD) and microstructure of W-25wt. % Cu were greatly affected by the addition of low Co concentration and sintering temperature. The concentration of 3 wt. % Co to tungsten-copper compact and infiltration temperature of 1250°C give high sintering density of 98.6% theoretical density (TD). The concentration of Co and infiltrating temperature have strong effects on the densification of W-Cu composite materials. The sintered compact microstructures and density were obtained using scanning electron microscope (SEM) coupled with EDX and Archimedes technique respectively.

• Periodical: Advanced Materials Research (Volume 626)
• Pages: 430-435
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.626.430
• Online since: December 2012
• Authors: Ibrahim Hafed, Aziz Azizan, Rahmat Azmi
• Keywords: Densification, Microstructure, W-Cu Composites

References

[1] J. Johnson, R. German: Metall. Mater. Trans. A Vol. 24 (1993), p.2369.

[2] D. Li, Z. Liu, Y. Yu, E. Wang: Int. J. Refract. Met. H. Vol. 26 (2008), p.286.

[3] J. Fan, T. Liu, S. Zhu, Y. Han: Int. J. Refract. Met. H. Vol. 30 (2012), p.33.

[4] S.H. Hong, B.K. Kim, Z.A. Munir: Mater. Sci. Eng. A Vol. 405 (2005), p.325.

[5] G. Li, L. Lu, M. Lai: J. Mater. Process. Tech. Vol. 63 (1997), p.286.

[6] S.K. Joo, S.W. Lee, T.H. Ihn: Metall. Mater. Trans. A Vol. 25 (1994), p.1575.

[7] M.K. Yoo, J.K. Park, K.T. Hong, J. Choi, U.S. Patent 5, 963, 773. (1999).

[8] P. Yu, M. Qian, L. Li, G. Schaffer: Acta mater. Vol. 58 (2010), p.3790.

[9] A.G. Hamidi, H. Arabi, S. Rastegari: Int. J. Refract. Met. H. Vol. 29 (2011), p.538.

[10] Y.W. Zhao, Y.J. Wang, H.X. Peng, Y. Zhou: Int. J. Refract. Met. H. Vol. 30 (2012), p.196.

[11] P. Chen, G. Luo, M. Li, Q. Shen, L. Zhang: Mater. Design Vol. 36 (2012), p.108.

[12] K.S. Mohammad, A. Rahmat, A.B. Ismail: J. Alloy. Compd. Vol. 482 (2009), p.447.

[13] H. Hayden, J. Brophy: J. Electrochem. Soc. Vol. 110 (1963), p.805.

[14] G. Samsonov, V. Yakovlev: Powder Metall. Met. C+. Vol. 8 (1969), p.804.

[15] M. Ahangarkani, S. Borgi, H. Abbaszadeh, A. Rahmani, K. Zangeneh-Madar: Int. J. Refract. Met. H. Vol. 32 (2012), p.39.
