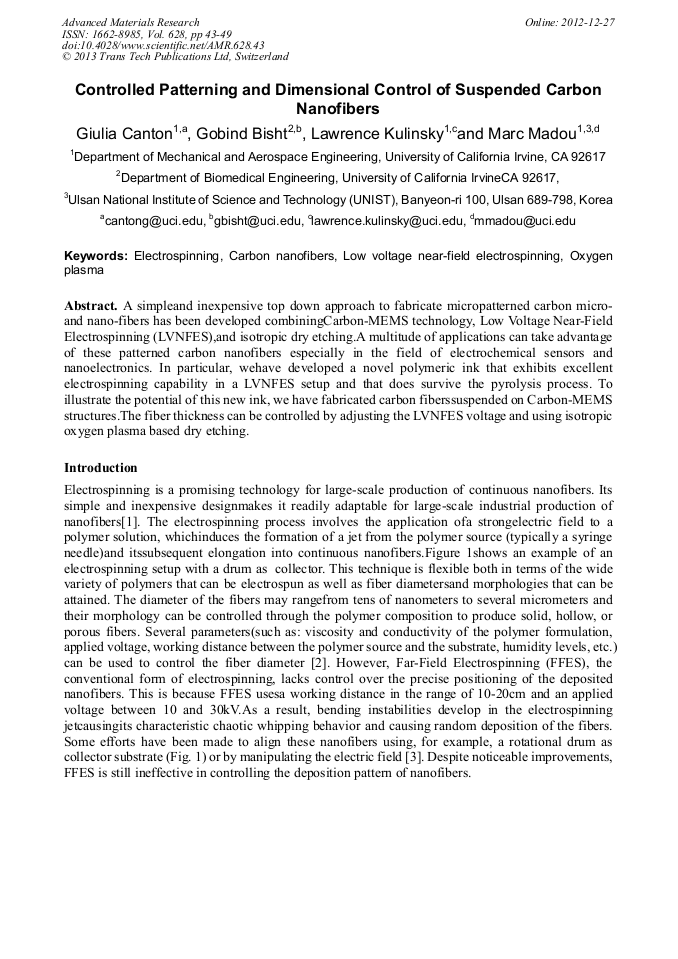

Controlled Patterning and Dimensional Control of Suspended Carbon Nanofibers

Abstract:

A simpleand inexpensive top down approach to fabricate micropatterned carbon micro- and nano-fibers has been developed combiningCarbon-MEMS technology, Low Voltage Near-Field Electrospinning (LVNFES),and isotropic dry etching.A multitude of applications can take advantage of these patterned carbon nanofibers especially in the field of electrochemical sensors and nanoelectronics. In particular, wehave developed a novel polymeric ink that exhibits excellent electrospinning capability in a LVNFES setup and that does survive the pyrolysis process. To illustrate the potential of this new ink, we have fabricated carbon fiberssuspended on Carbon-MEMS structures.The fiber thickness can be controlled by adjusting the LVNFES voltage and using isotropic oxygen plasma based dry etching.

• Periodical: Advanced Materials Research (Volume 628)
• Pages: 43-49
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.628.43
• Online since: December 2012
• Authors: Giulia Canton, Gobind Bisht, Lawrence Kulinsky, Marc Madou
• Keywords: Carbon Nanofiber, Electro-Spinning, Low Voltage Near-Field Electrospinning, Oxygen Plasma

References

[1] Li D and Xia Y, Electrospinning of nanofibers: Reinventing the wheel?, Advanced materials, 16(14), 1151-, (2004).

DOI: 10.1002/adma.200400719

[2] Huang Z-M, Zhang Y-Z, Kotaki M, and Ramakrishna S, A review on polymer nanofibers by electrospinning and their applications in nanocomposites, Composites Science and Technology, Volume 63, Issue 15, Pages 2223-2253, (2003).

DOI: 10.1016/s0266-3538(03)00178-7

[3] Li D, Ouyang G, McCann JT, and Xia Y, Collecting Electrospun Nanofibers with Patterned Electrodes, Nano Letters, 5 (5), 913-916, (2005).

DOI: 10.1021/nl0504235

[4] Sun D, Chang C, Li S, and Lin L, Near-Field Electrospinning, Nano Letters, 6 (4), 839-842, (2006).

DOI: 10.1021/nl0602701

[5] Bisht GB, Canton G, Mirsepassi A, Kulinsky L, Oh S, Dunn-Rankin D, and Madou MJ, Controlled Continuous Patterning of Polymeric Nanofibers on 3D Substrates Using Low-Voltage Near-Field Electrospinning, Nanoletters, 11 (4), (2011).

DOI: 10.1021/nl2006164

[6] Bisht GB, Canton G, Mirsepassi A, Dunn-Rankin D, Kulinsky L, Madou M, Novel Polymeric Inks for Precision Patterning of Carbon Micro/Nano-Fibers using Near-Field Electrospinning, Proceedings of Technologies for Future Micro-Nano Manufacturing, Napa, CA, Aug 8-10 (2011).

DOI: 10.1021/nl2006164

[7] Park B, Taherabadi L, Wang C, Zoval J, Madou M. Electrical properties and shrinkage of carbonized photoresist films and the implications for carbon microelectromechanical systems devices in conductive media. Journal of the Electrochemical Society 2005; 152(J136).

DOI: 10.1149/1.2116707

[8] Chang Y-H, Hsu C-L, Yuan C-J, Tang S-F, Chiang H-J, Jang H-D, Chang K-S, Improvement of the inter-electrode reproducibility of screen-printed carbon electrodes by oxygen plasma etching and an image color level method for quality control, Materials Science and Engineering: C, Volume 31, Issue 7, 10 October 2011, Pages 1265-1270.

DOI: 10.1016/j.msec.2011.01.001
