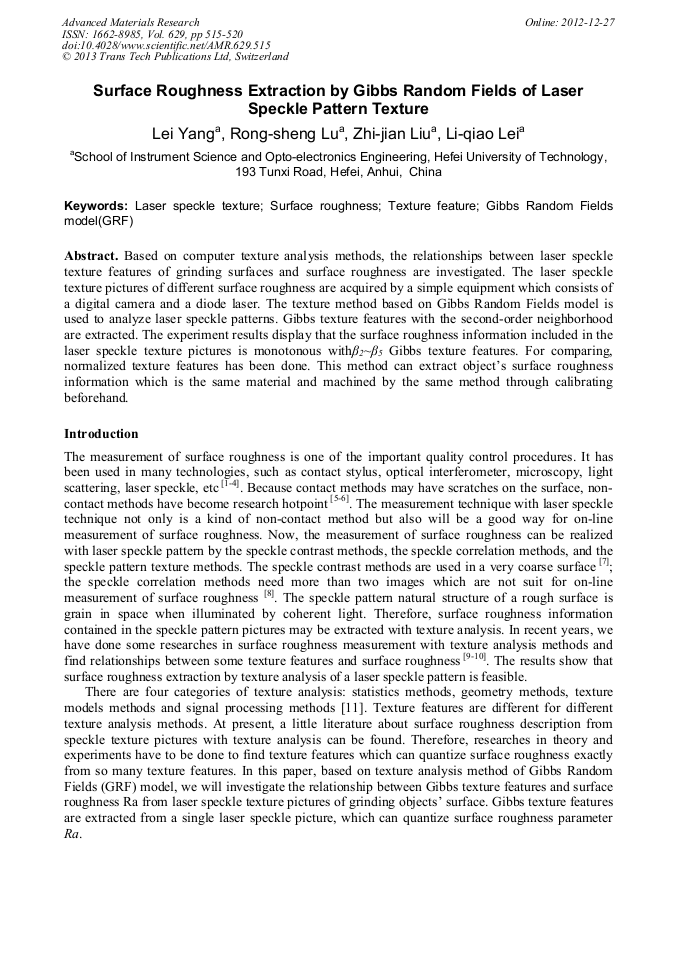

Surface Roughness Extraction by Gibbs Random Fields of Laser Speckle Pattern Texture

Abstract:

Based on computer texture analysis methods, the relationships between laser speckle texture features of grinding surfaces and surface roughness are investigated. The laser speckle texture pictures of different surface roughness are acquired by a simple equipment which consists of a digital camera and a diode laser. The texture method based on Gibbs Random Fields model is used to analyze laser speckle patterns. Gibbs texture features with the second-order neighborhood are extracted. The experiment results display that the surface roughness information included in the laser speckle texture pictures is monotonous withβ2~β5 Gibbs texture features. For comparing, normalized texture features has been done. This method can extract object’s surface roughness information which is the same material and machined by the same method through calibrating beforehand.

• Periodical: Advanced Materials Research (Volume 629)
• Pages: 515-520
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.629.515
• Online since: December 2012
• Authors: Lei Yang, Rong Sheng Lu, Zhi Jian Liu, Li Qiao Lei
• Keywords: Gibbs Random Fields Model (GRF), Laser Speckle Texture, Surface Roughness (SR), Texture Feature

References

[1] D. J. Whitehouse, Handbook of surface and Nanometrology, Institute of Physics Publishing (IOP), (2003).

[2] J. M. Bennett, Recent development in surface roughness characterization, Meas. Sci. Technol. Vol. 3, 1992, pp.1119-27.

[3] D. J. White, Stylus contact method for surface metrology in the ascendancy, Meas Control, Vol. 31, No. 2, 1998, pp.48-50.

DOI: 10.1177/002029409803100204

[4] J. M. Bennett and L. Mattsson, Introduction surface roughness and scattering, Optical Society of America, (1993).

[5] S. I. Chang, J. S. Ravathur, Computer vision based non-contact surface roughness assessment using wavelet transform and response surface methodology, Quality Engineering, Vol. 17, 2005, pp.735-451.

DOI: 10.1081/qen-200059881

[6] R. Kumar, P. Kulashekar, B. Dhanasekar, B. Ramamoorthy, Application of digital image magnification for surface roughness evaluation using machine vision, Int. J. of Machine Tools and Manufacture, Vol. 45, 2005, pp.228-234.

DOI: 10.1016/j.ijmachtools.2004.07.001

[7] L. C. Leonard, V. Toal, Roughness measurement of metallic surfaces based on the laser speckle contrast method, Optics and Lasers in Engineering. Vol. 30, pp.433-440, (1998).

DOI: 10.1016/s0143-8166(98)00036-0

[8] S. L. Toh, C. Quan, K. C. Woo, C. J. Tay, H.M. Shang, Whole field surface roughness measurement by laser speckle correlation technique, Optics & Laser Technology, Vol. 33, pp.427-434, (2001).

DOI: 10.1016/s0030-3992(01)00054-8

[9] R. S. Lu, G. Y. Tian, On-line measurement of surface roughness by laser light scattering, Measurement science and technology, 17(2006) 1496-1520.

DOI: 10.1088/0957-0233/17/6/030

[10] R. S. Lu, G. Y. Tian, Grinding surface roughness measurement based on the co-occurrence matrix of speckle pattern texture, Applied Optics, Vol. 45, No. 35, 2006, pp.1-9.

DOI: 10.1364/ao.45.008839

[11] M. Tuceryan, A. K. Jain, Texture analysis, The Handbook of Pattern Recognition and Computer Vision, 2nd Edition, By C. H. Chen, L. F. Pau, P. S. P. Wang, World Scientific Publishing Co. 1998, pp.207-248.

DOI: 10.1142/9789812384737_0007

[12] Haluk Derin, Howard Elliott, Modeling and segmentation of noisy and textured images using Gibbs Random Fields, IEEE transactions on pattern analysis and machine intelligence, vol. PAMI-9, No. 1, 1987, pp.39-55.

DOI: 10.1109/tpami.1987.4767871

[13] Z. B. Zheng, Y. Q. Zhou, Markov random parameter estimate and image texture classification, Mapping transaction, vol. 24, No. 1, pp.45-51, Feb. (1995).
