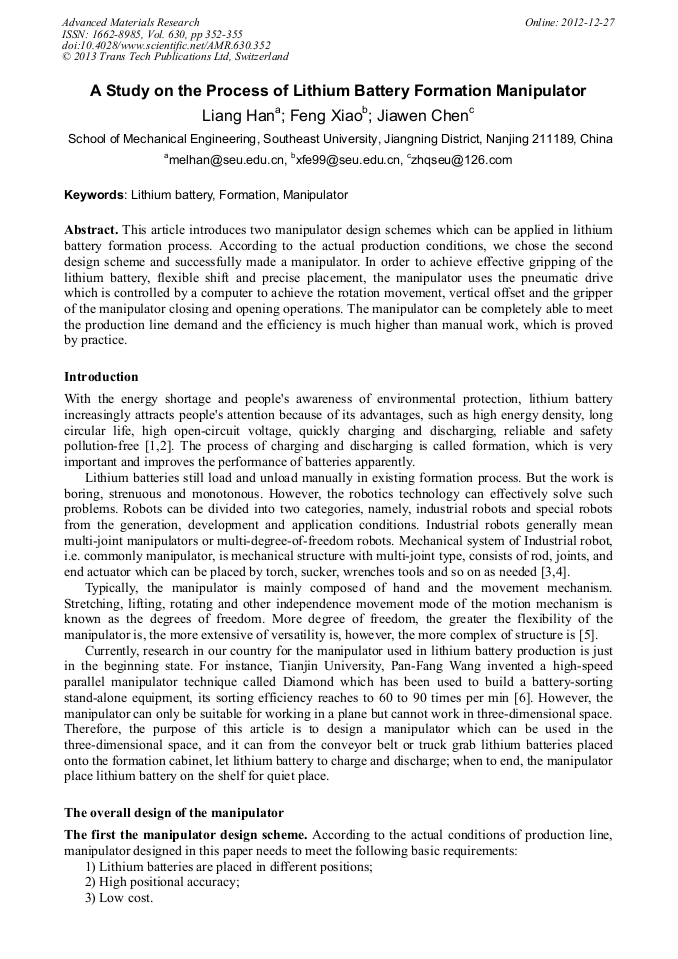

A Study on the Process of Lithium Battery Formation Manipulator

Abstract:

This article introduces two manipulator design schemes which can be applied in lithium battery formation process. According to the actual production conditions, we chose the second design scheme and successfully made a manipulator. In order to achieve effective gripping of the lithium battery, flexible shift and precise placement, the manipulator uses the pneumatic drive which is controlled by a computer to achieve the rotation movement, vertical offset and the gripper of the manipulator closing and opening operations. The manipulator can be completely able to meet the production line demand and the efficiency is much higher than manual work, which is proved by practice.

• Periodical: Advanced Materials Research (Volume 630)
• Pages: 352-355
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.630.352
• Online since: December 2012
• Authors: Liang Han, Feng Xiao, Jia Wen Chen
• Keywords: Formation, Lithium Battery, Manipulator

References

[1] HUANG Kun, Discussion about lithium battery technology［J］, Battery Bimonthly, 2000, 30(5): 217.

[2] Jin Ming-gang, The development situation of solid lithium battery in China［J］, Chinese Battery Industry, 2000, 5(2), 88.

[3] MENG Qing-xin, Wang Xiaodong, Fundamentals of Robotics [M], Harbin University of Technology Press, (2006).

[4] Luo Jun, Xie Shaorong, Zhai Yuyi, Wang Qi etc., Special Robots [M], Chemical Industry Press, (2006).

[5] Liang Xifeng, Mechanism Analysis and Optimization Design on Tomato Harvesting Manipulator [D], Zhejiang University, (2004).

[6] WANG Panfeng, MEI Jiangping, CHEN Hengjun, ZHAO Xueman, HUANG Tian, WANG Youyu, Control system design for automatic sorting of lithium-ion battery using multiple parallel manipulators [J], Journal of Mechanical Engineering, 2007, 43(11): 63-68.

DOI: 10.3901/jme.2007.11.063

[7] Shen Xiaoqiang, Development of a five degrees of Teaching handling manipulator [D], Soochow university, (2010).

[8] Zhao Zhongwei, Precise positioning control algorithm for assembly manipulator based embedded systems [D], Jiangsu University, (2010).

[9] Wang Wei, The inserts feeding PLC control system design of the robot [D], Soochow University, (2009).

[10] Chen Hong, Pneumatic Manipulator System Design [D], Changchun University of Science and Technology, (2010).

[11] Chen Kuisheng, Hydraulic and Pneumatic Drive [M], Wuhan University of Technology, (2009).
