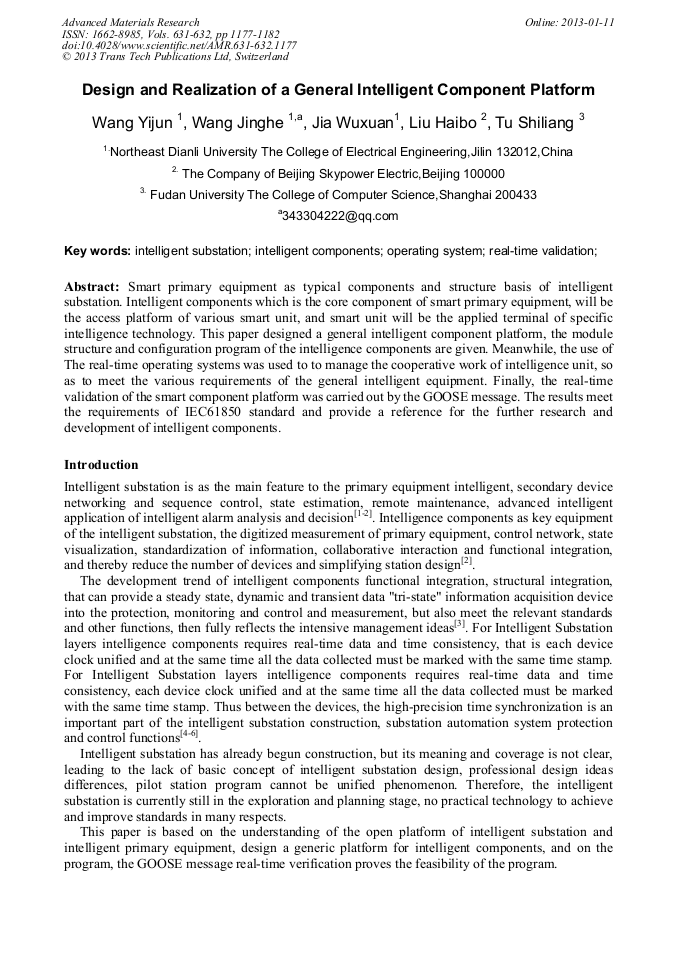

Design and Realization of a General Intelligent Component Platform

Abstract:

Smart primary equipment as typical components and structure basis of intelligent substation. Intelligent components which is the core component of smart primary equipment, will be the access platform of various smart unit, and smart unit will be the applied terminal of specific intelligence technology. This paper designed a general intelligent component platform, the module structure and configuration program of the intelligence components are given. Meanwhile, the use of The real-time operating systems was used to to manage the cooperative work of intelligence unit, so as to meet the various requirements of the general intelligent equipment. Finally, the real-time validation of the smart component platform was carried out by the GOOSE message. The results meet the requirements of IEC61850 standard and provide a reference for the further research and development of intelligent components.

• Periodical: Advanced Materials Research (Volumes 631-632)
• Pages: 1177-1182
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.631-632.1177
• Online since: January 2013
• Authors: Yi Jun Wang, Jing He Wang, Wu Xuan Jia, Hai Bo Liu, Shi Liang Tu
• Keywords: Intelligent Component, Intelligent Sub-Station, Operating System, Real-Time Validation

References

[1] Huang Can，Xiao Chifu，Fang Yi，et al．A method to deal with packettransfer delay of sampled value in smart substation[J]．Power SystemTechnology，2011，35(1)：5-10(in Chinese).

[2] Q/GDW 383—2009[S].

[3] Liu Youwei，Deng Yanguo，Wu Liyuan．Technical characteristics and solution of smart high-voltage equipment[J] ． Power System Technology，2010，34(7)：1-4(in Chinese).

[4] Wang Yijun, Wang Lin, Tu Shiliang. A design of computer key of anti-maloperation system based on networks[J] . Power System Protection and Control, 2009，37（23）：96-99.

[5] IEEE 1588 2008 IEEE Standard for a precision clock synchronization protocol f or networked measurement and control system . (2008).

DOI: 10.6028/nist.ir.7070

[6] Liu Huiyuan, Hao Houtang, Li Yanxin, et al. Research on a Synchronism Scheme for Digital Substations [J]. Automation of Electric Power Systems, 2009, 33( 3) : 55 58.

[7] Qin Lijun, Liu Lin, Shi Junfeng, et al. Distribution Automation System under IEC 61850 System[J]. Electrical Equipment, 2007，8（12）：13-15.

[8] Yin Zhiliang, Liu Wanshun, Yang Qixun, et al. Modeling and mapping implementation of a sampled value model based on IEC 61850[J]. Automation of Electric Power Systems, 2004, 28( 21) : 38 41.

[9] IEC. IEC61850 - 9 - 2 Communication networks and systems in substations，part 9-2: Specific Communication Service Mapping（SCSM）-sampled values over ISO /IEC8802-3[S]. ［S. l. ］: IEC，(2003).

DOI: 10.3403/30145362

[10] IEC60044-8 Instrument transformer: Part 8 electronic current transformers. (2002).
