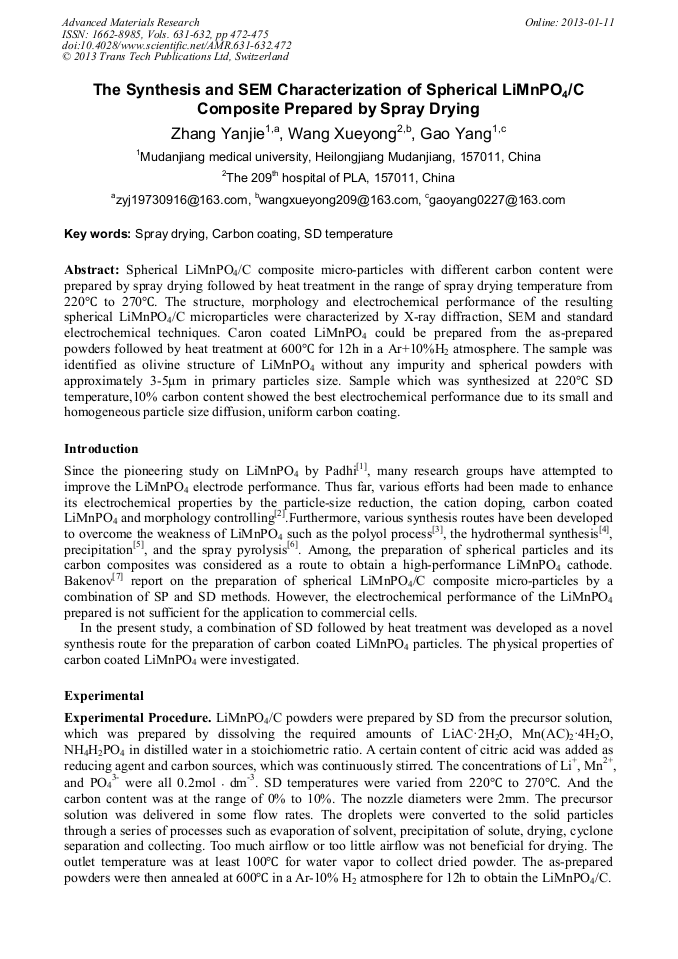

The Synthesis and SEM Characterization of Spherical LiMnPO₄/C Composite Prepared by Spray Drying

Abstract:

Spherical LiMnPO₄/C composite micro-particles with different carbon content were prepared by spray drying followed by heat treatment in the range of spray drying temperature from 220°C to 270°C. The structure, morphology and electrochemical performance of the resulting spherical LiMnPO₄/C microparticles were characterized by X-ray diffraction, SEM and standard electrochemical techniques. Caron coated LiMnPO₄ could be prepared from the as-prepared powders followed by heat treatment at 600°C for 12h in a Ar+10%H2 atmosphere. The sample was identified as olivine structure of LiMnPO₄ without any impurity and spherical powders with approximately 3-5μm in primary particles size. Sample which was synthesized at 220°C SD temperature,10% carbon content showed the best electrochemical performance due to its small and homogeneous particle size diffusion, uniform carbon coating.

You might also be interested in these eBooks

Materials Engineering for Advanced Technologies (ICMEAT 2012)

View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 631-632)

Pages:

472-475

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.631-632.472

Citation:

Cite this paper

Online since:

January 2013

Authors:

Yan Jie Zhang, Xue Yong Wang, Yang Gao

Keywords:

Carbon Coating, SD Temperature, Spray Drying

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] A. K. Padhi, K. S. Nanjundaswamy, J. B. Goodenough. Phospho-olivines as positive-electrode materials for rechargeable lithium batteries[J]. J. Electrochem. Soc, 1997, 144(4): 1188-1194.

DOI: 10.1149/1.1837571

Google Scholar

[2] S.K. Martha, B. Markovsky, J. Grinblat. LiMnPO4 as an Advanced cathode Material for Rechargeable lithium batteries[J]. J. Electrochem. Soc. 2009, 156(7): A541-A552.

DOI: 10.1149/1.3125765

Google Scholar

[3] M. Piana, B.L. Cushing, J.B. Goodenough, N. Penazzi. A new promising sol-gel synthesis of phosphor-olivines as environmentally friendly cathode materials for Li-ion cells[J]. Solid State Ionics, 2004, 175(1-4): 233-237.

DOI: 10.1016/j.ssi.2004.06.021

Google Scholar

[4] G.Y. Chen, T.J. Richardson. Thermal instability of Olivine-type LiMnPO4 cathodes[J]. J. Power Sources, 2010, 195(4): 1221-1224.

DOI: 10.1016/j.jpowsour.2009.08.046

Google Scholar

[5] J. Xiao, W. Xu, D. Choi, J. -G. Zhang. Synthesis and Characterization of Lithium Manganese Phosphate by a precipitation method[J]. J. Electrochem. Soc. 2010, 157(2): A142-A147.

DOI: 10.1149/1.3265440

Google Scholar

[6] T.N.L. Doan, Z. Bakenov, I. Taniguchi. Preparation of carbon coated LiMnPO4 powders by a combination of spray pyrolysis with dry ball-milling followed by heat treatment[J]. Adv. Powder Technol, 2010, 21(2): 187-196.

DOI: 10.1016/j.apt.2009.10.016

Google Scholar

[7] Zhumababy Bakenov, Izumi Taniguchi. Synthesis of spherical LiMnPO4/C composite microparticles[J]. Materials Research Bulletin, 2011, 46(8): 1311-1314.

DOI: 10.1016/j.materresbull.2011.03.020

Google Scholar
