On the Practice of the Microstructure Adjustment to Improve the Strength-Plastic Comprehensive Performance of a C-Si-Mn Alloyed High-Strength Steel

Shuang Kuang; Guo Sen Zhu; Yin Hua Jiang

doi:10.4028/www.scientific.net/AMR.631-632.467

Paper Titles

Influence of Calcium Ion on Thermal Degradation and Flame Retardance Behaviour of Alginate Fiber
p.447

Preparation of BiFe_1-xCo_xO₃ Ceramics via a Simple Solid Method and Enhanced Multiferroic Properties
p.452

Using Split Hopkinson Pressure Bars to Perform Large Strain Compression Tests on Neoprene at Intermediate and High Strain Rates
p.458

Effects of Environmental Humidity on the Tribological Properties of Modified PTFE Three-Layer Composites
p.463

On the Practice of the Microstructure Adjustment to Improve the Strength-Plastic Comprehensive Performance of a C-Si-Mn Alloyed High-Strength Steel
p.467

The Synthesis and SEM Characterization of Spherical LiMnPO₄/C Composite Prepared by Spray Drying
p.472

The Effect of Ferrous-Titanium Addition on Microstructure of TiB₂+TiC Duplex Particles Reinforced Surface Composite with Carbon Steel Matrix
p.476

Effect of Raw Rubber on CH₄ Formation from NBR Applied in Transformer Oil
p.481

Study on the Fabrication of Carbon Nanotube - Mesocarbon Microbead Composites
p.486

HomeAdvanced Materials ResearchAdvanced Materials Research Vols. 631-632On the Practice of the Microstructure Adjustment...

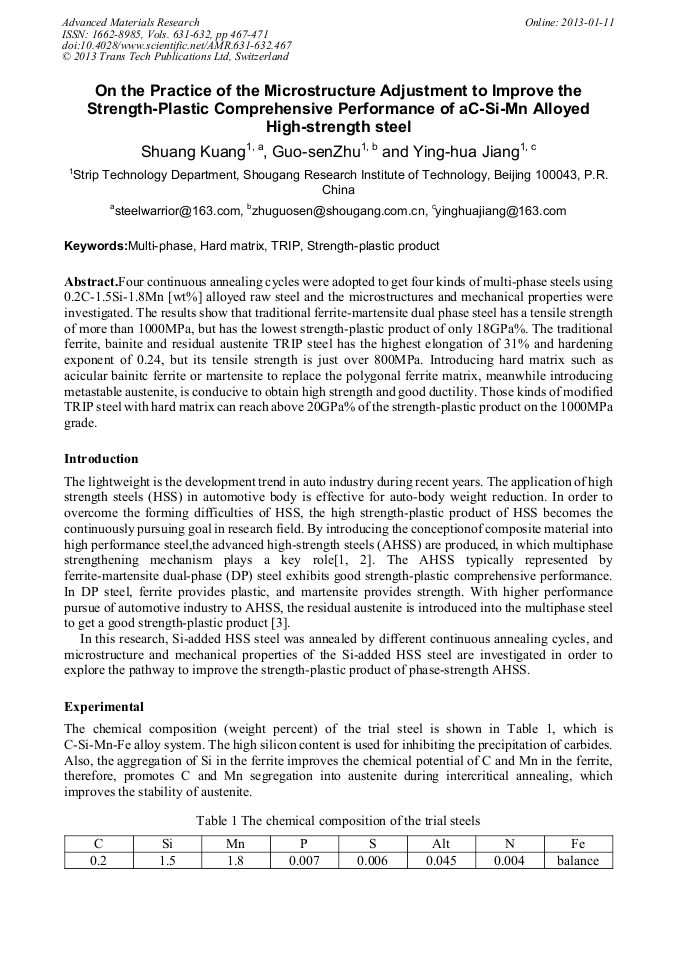

On the Practice of the Microstructure Adjustment to Improve the Strength-Plastic Comprehensive Performance of a C-Si-Mn Alloyed High-Strength Steel

Abstract:

Four continuous annealing cycles were adopted to get four kinds of multi-phase steels using 0.2C-1.5Si-1.8Mn [wt%] alloyed raw steel and the microstructures and mechanical properties were investigated. The results show that traditional ferrite-martensite dual phase steel has a tensile strength of more than 1000MPa, but has the lowest strength-plastic product of only 18GPa%. The traditional ferrite, bainite and residual austenite TRIP steel has the highest elongation of 31% and hardening exponent of 0.24, but its tensile strength is just over 800MPa. Introducing hard matrix such as acicular bainitc ferrite or martensite to replace the polygonal ferrite matrix, meanwhile introducing metastable austenite, is conducive to obtain high strength and good ductility. Those kinds of modified TRIP steel with hard matrix can reach above 20GPa% of the strength-plastic product on the 1000MPa grade.
