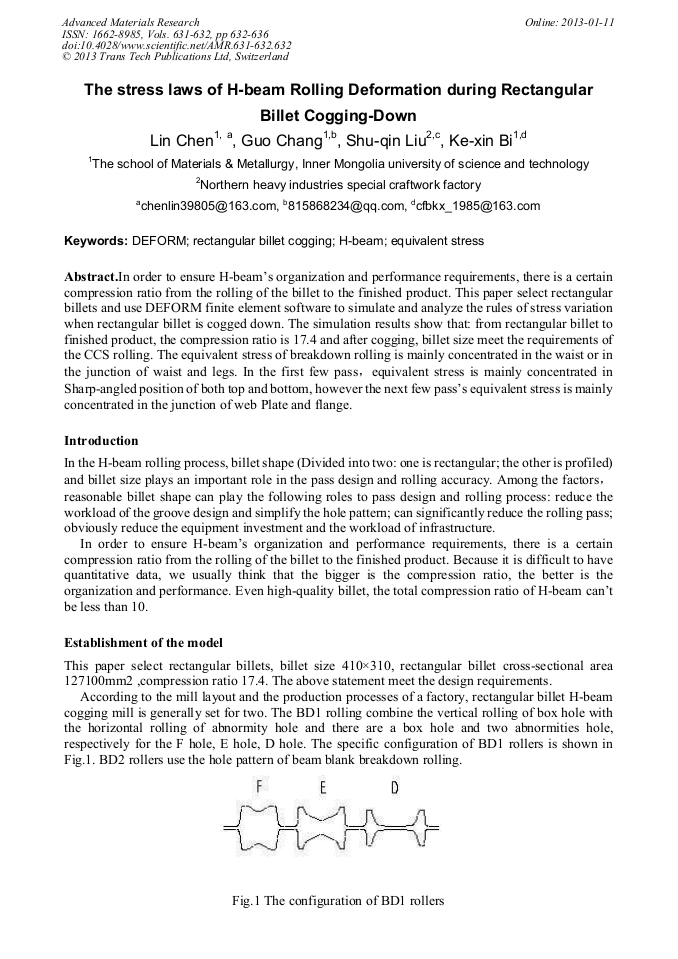

The Stress Laws of H-Beam Rolling Deformation during Rectangular Billet Cogging-Down

Abstract:

In order to ensure H-beam’s organization and performance requirements, there is a certain compression ratio from the rolling of the billet to the finished product. This paper select rectangular billets and use DEFORM finite element software to simulate and analyze the rules of stress variation when rectangular billet is cogged down. The simulation results show that: from rectangular billet to finished product, the compression ratio is 17.4 and after cogging, billet size meet the requirements of the CCS rolling. The equivalent stress of breakdown rolling is mainly concentrated in the waist or in the junction of waist and legs. In the first few pass，equivalent stress is mainly concentrated in Sharp-angled position of both top and bottom, however the next few pass’s equivalent stress is mainly concentrated in the junction of web Plate and flange.
