Simulation Study on Virtual Prototype of Pumping Well System

Abstract:

The virtual prototype simulation of the underground pumping system can’t realize the timing analysis with the ground pumping unit system. In order to solve this problem, the simulation analysis model of the pumped well virtual prototype was established via the multibody dynamics simulation software Adams by analyzing the working characteristic of the sucker rod string. The simulation was in accordance with the dynamic indicator diagram which verifies the correctness of the simulation analysis model of the pumped well virtual prototype and also offers a new analysis method for the underground pump dianamograph and pumping unit balance, etc.

You might also be interested in these eBooks

Materials Engineering for Advanced Technologies (ICMEAT 2012)

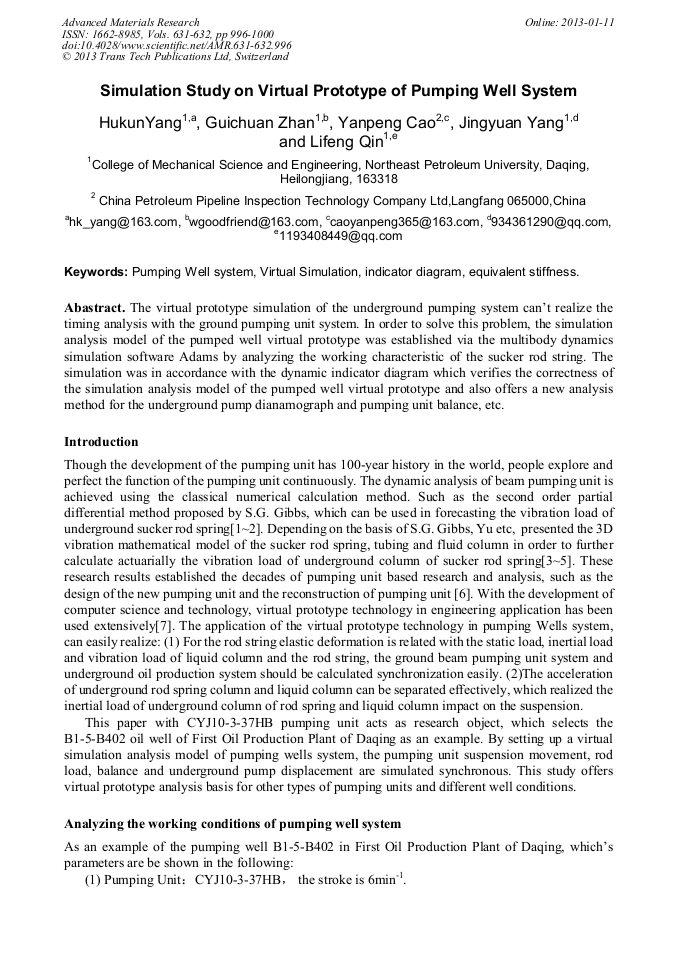

View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 631-632)

Pages:

996-1000

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.631-632.996

Citation:

Cite this paper

Online since:

January 2013

Authors:

Hu Kun Yang, Gui Chuan Zhan, Yan Peng Cao, Jing Yuan Yang, Li Feng Qin

Keywords:

Equivalent Stiffness, Indicator Diagram, Pumping Well System, Virtual Simulation

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] S.G. Gibbs. Predicting the behavior of sucker rod pumping system. SPE588, 1963: 769~778.

DOI: 10.2118/588-pa

Google Scholar

[2] S.G. Gibbs. General Method for Predicting Rod Pumping System Performance. SPE6580, 1977: 1~19.

Google Scholar

[3] Yu Guoan, Wu Yijiong, Wang Guoyuan. Three dimensional vibration in a sucker rod beam pumping system. Acta petrolei sinica, 1989, 10(2): 76~83.

Google Scholar

[4] Yu Guoan, Wu Yijiong, Wang Guoyuan. Three dimensional vibration of Multi rod pumping well. China Petroleum Machinery, 1989, 17(6): 16~21.

Google Scholar

[5] Yu Guoan, Wu Yijiong, Wang Guoyuan. A New Mathematical Model for Oilwells Where Sucker-Rod Pumps Used. China Petroleum Machinery, 1988, 16(3): 24~31.

Google Scholar

[6] Sun Libo, Liu Xiping．The design of a new type of kinetic energy equilibrium system for long sroke pumping units. Journal of Southwest Petroleum University， 2007，29( 6) : 165-167.

Google Scholar

[7] Yang Dongping, Gao Xueshi, Dai Yang. Dynamic Simulation System of Variable Parameter Flexible Linkage Mechanism of Dual Horse Head Pump Unit. Chinese Journal of Mechanical Engineering, 2010, 46(9): 59~65.

DOI: 10.3901/jme.2010.09.059

Google Scholar
