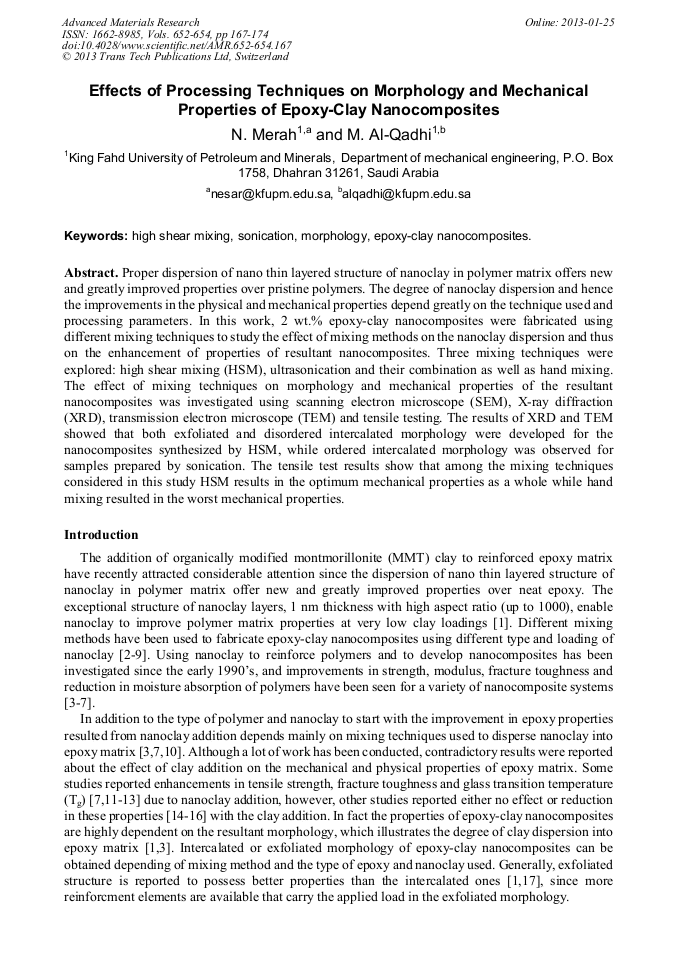

Effects of Processing Techniques on Morphology and Mechanical Properties of Epoxy-Clay Nanocomposites

Abstract:

Proper dispersion of nano thin layered structure of nanoclay in polymer matrix offers new and greatly improved properties over pristine polymers. The degree of nanoclay dispersion and hence the improvements in the physical and mechanical properties depend greatly on the technique used and processing parameters. In this work, 2 wt.% epoxy-clay nanocomposites were fabricated using different mixing techniques to study the effect of mixing methods on the nanoclay dispersion and thus on the enhancement of the properties of the resultant nanocomposites. Three mixing techniques were explored: high shear mixing (HSM), ultrasonication and their combination as well as hand mixing. The effect of mixing techniques on morphology and mechanical properties of the resultant nanocomposites was investigated using scanning electron microscope (SEM), X-ray diffraction (XRD), transmission electron microscope (TEM) and tensile testing. The results of XRD and TEM showed that both exfoliated and disordered intercalated morphology were developed for the nanocomposites synthesized by HSM, while ordered intercalated morphology was observed for samples prepared by sonication. The tensile test results show that among the mixing techniques considered in this study HSM results in the optimum mechanical properties as a whole while hand mixing resulted in the worst physical and mechanical properties.

• Periodical: Advanced Materials Research (Volumes 652-654)
• Pages: 167-174
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.652-654.167
• Online since: January 2013
• Authors: Nesar Merah, Muneer Al-Qadhi
• Keywords: Epoxy-Clay Nanocomposites, High Shear Mixing, Morpholoy, Sonication

References

[1] L.A. Utracki: Clay-Containing Polymeric Nanocomposites (First ed., Rapra Technology Limited, UK 2004).

[2] K. Wang, S. Zhou, Z. Jiang and X. Zhu: Advanced Materials Research Vols. 418-420 (2012), p.670.

[3] W. Liu, S. V. Hoa, M. Pugh: Composites Science and Technology Vol. 65 (2005), p.2364.

[4] M. J. Adinoyi, N. Merah , Z. Gasem and N. Al-Aqeeli: Key Engineering Materials Vols. 471-472 (2011), p.496.

DOI: 10.4028/www.scientific.net/kem.471-472.496

[5] S. Ghafarloo and M. Kokabi: Advanced Materials Research Vols. 123-125 (2010), p.145.

[6] K. Dean, J. Krstina, W. Tian and R.J. Varley: Macromolecular Material and Engineering Vol. 292 (2007), p.415.

[7] L. Wang, K. Wang, L. Chen, Y. Zhang and C. He: Composites: Part A Vol. 37 (2006), p.1890.

[8] T. D. Ngo, M. T. Ton-That, S. V. Hoa, K. C. Cole: Composites Science and Technology Vol. 69 (2009), p.1831.

[9] J. Wang, X. Kong, L. Cheng and Y. He: Journal of University of Science and Technology Beijing Vol.15(3) (2008), p.320.

[10] S. C. Zunjarrao, R. Sriraman and R. P. Singh: Journal of Material Science Vol. 41 (2006), p.2219.

[11] S.R. Ha, S.H. Ryu, S.J. Park and K.Y. Rhee: Materials Science and Engineering Part A Vol. 448 (2007), p.264.

[12] P I. Xidas and K. S. Triantafyllidis: European Polymer Journal Vol. 46 (2010), p.404.

[13] S. Zainuddin, M.V. Hosur, Y. Zhou, A. T. Narteh, A. Kumar and S. Jeelani, Materials Science and Engineering A Vol. 527 (2010), p.7920.

DOI: 10.1016/j.msea.2010.08.078

[14] F. Hussain, J. Chen and M. Hujjati: Materials Science and Engineering A Vols. 445-446 (2007), p.467.

[15] B. Akbari and R. Bagheri: European Polymer Journal Vol. 43 (2007), p.782.

[16] S. R. Ha, K. Y. Rhee, H. C. Kim and J. T. Kim: Colloid and Surfaces A: Physicochem. Eng. Vols. 313-314 (2008), p.112.

[17] C. Chen, M. Khobaib and D. Curliss: Progress in Organic Coatings Vol. 47 (2003), p.376.

DOI: 10.1016/s0300-9440(03)00130-9

[18] B.C. Kim, S.W. Park and D.G. Lee, Composite Structure Vol. 86 (2008), p.69.

[19] M. Al-Qadhi, N. Merah, Z. Khan, K. Mezghani and J. Adinoyi: ECCM15 – 15th European Conference on Composite Materials, Venice, Italy, 24-28 June (2012)

[20] M. Al-Qadhi, N. Merah and K. Mezghani: Key Engineering Materials Vol. 471-472 (2011), pp.415-419.

DOI: 10.4028/www.scientific.net/kem.471-472.415

[21] M. J. Adinoyi, N. Merah, N. Al-Aqeeli and Z. Gasem: Key Engineering Materials Vols. 471-472 (2011), p.490.

DOI: 10.4028/www.scientific.net/kem.471-472.490

[22] B. Qi, Q. X. Zhang, M. Bannister and Y. W. Mai: Composite Structures Vol. 75 (2006), p.514.

[23] H. Miyagawa, L. T. Drzal: Journal of Adhesion Science and Technology Vol. 18 (2004), p.1571.
