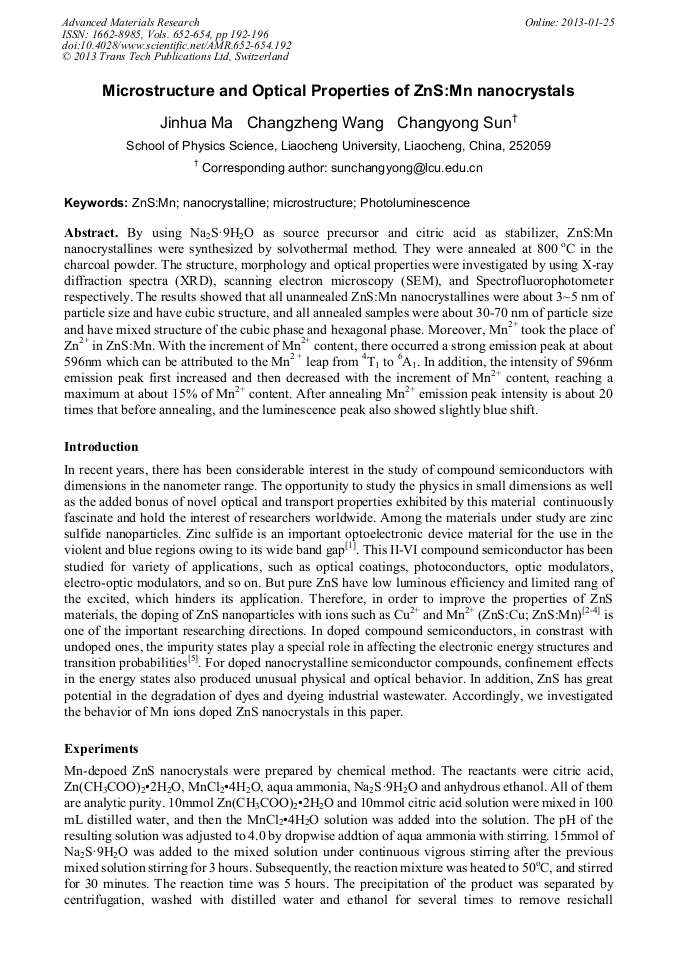

Microstructure and Optical Properties of ZnS:Mn Nanocrystals

Abstract:

Abstract. By using Na2S•9H2O as source precursor and citric acid as stabilizer, ZnS:Mn nanocrystallines were synthesized by solvothermal method. They were annealed at 800 oC in the charcoal powder. The structure, morphology and optical properties were investigated by using X-ray diffraction spectra (XRD), scanning electron microscopy (SEM), and Spectrofluorophotometer respectively. The results showed that all unannealed ZnS:Mn nanocrystallines were about 3~5 nm of particle size and have cubic structure, and all annealed samples were about 30-70 nm of particle size and have mixed structure of the cubic phase and hexagonal phase. Moreover, Mn2+ took the place of Zn2+ in ZnS:Mn. With the increment of Mn2+ content, there occurred a strong emission peak at about 596nm which can be attributed to the Mn2 + leap from 4T1 to 6A1. In addition, the intensity of 596nm emission peak first increased and then decreased with the increment of Mn2+ content, reaching a maximum at about 15% of Mn2+ content. After annealing Mn2+ emission peak intensity is about 20 times that before annealing, and the luminescence peak also showed slightly blue shift.

• Periodical: Advanced Materials Research (Volumes 652-654)
• Pages: 192-196
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.652-654.192
• Online since: January 2013
• Authors: Jin Hua Ma, Chang Zheng Wang, Chang Yong Sun
• Keywords: Microstructure, Nanocrystalline, Photoluminescence (PL), ZnS:Mn

References

[1] N. Karar, F. Singh, B.R. Mehta, J. Appl. Phys., 2004, 95(2):656-661.

[2] R.N. Bhargava, J. Lumin., 1996, 70(1-6):85-94.

[3] L. Brus, Appl. Phys.A, 1991,53(6):465-474.

[4] A.A. Bol, A. Meijerink, Phys. Rev. B, 1998, 58 (24) 15997-16000.

[5] Y.L. Soo, Z.H. Ming, S.W. Huang, Y.H. Kao, Phys. Rev. B, 1994, 50(11):7602-7607.

[6] Mart-Mari Biggs. Synthesis, South Africa:University of the Free State, 2009.

[7] W.Q. Peng, S.C. Qu, G.W. Cong, Z.G. Wang, J. Crystal Growth, 2005, 282(1-2):179-185.

[8] R.G. Zhang, B.Y. Wang, L. Wei, Vacuum, 2008, 82(11):1208-1211.

[9] Dong D Q,Li L ,Zhang X S, et al. Chinese Physics Letters, 2007 , 24 (9): 2661 -2663

[10] Yu X E. Beiji ng : Light Industrial Press , 1997: 42-45 ( i n Chinese) .

[11] K. Sooklal, B.S. Cullum, S.M. Angel, C.J. Murphy, J. Phys. Chem., 1996, 100(11):4551-4555.

[12] A.A. Khosravi, M. Kundu, B.A. Kuruvilla, G.S. Shekhawat, R.P. Gupta, A.K. Sharma, P.D. Vyas, S.K. Kulkarni, Appl. Phys. Lett., 1995, 67(17):2506-2573.

DOI: 10.1063/1.114440

[13] J. Leeb, V. Gebhardt, G. Muller, D. Haarer, D. Su, M. Giersig, G. Mcmahon, L. Spanhel, J. Phys. Chem. B, 1999, 103(37):7839-7845.

DOI: 10.1021/jp991514r
