An Algorithm for Determining the Nested Relation between Contours of Complex Parts Applied in Laser Cutting

Shi De Wu; Ze Yu Ma; Jing Feng Yang

doi:10.4028/www.scientific.net/AMR.655-657.1256

Paper Titles

The Research on Edged Detecting in CNC Engraving Technology Based on Reverse Engineering
p.1237

How to Guarantee the Machining Accuracy of the Improved Numerical Control Machine
p.1242

Research of NURBS Based Approach for Fitting Contour of Windshield
p.1246

Automated Layer Aligning and Stacking System for the Fully Dense Freeform Fabrication Process
p.1251

An Algorithm for Determining the Nested Relation between Contours of Complex Parts Applied in Laser Cutting
p.1256

Method of Corner Smooth Transition Based on Interpolation Spline
p.1260

Supporting Force Analysis of Oil Pads in Hydrostatic Rotary Table of Heavy Duty CNC Machine
p.1267

Design of a Cutting Tools Information Integrated System
p.1273

Modeling of Dynamic Errors for a Table-Tilting Type 5-Axis Machine Tools
p.1277

HomeAdvanced Materials ResearchAdvanced Materials Research Vols. 655-657An Algorithm for Determining the Nested Relation...

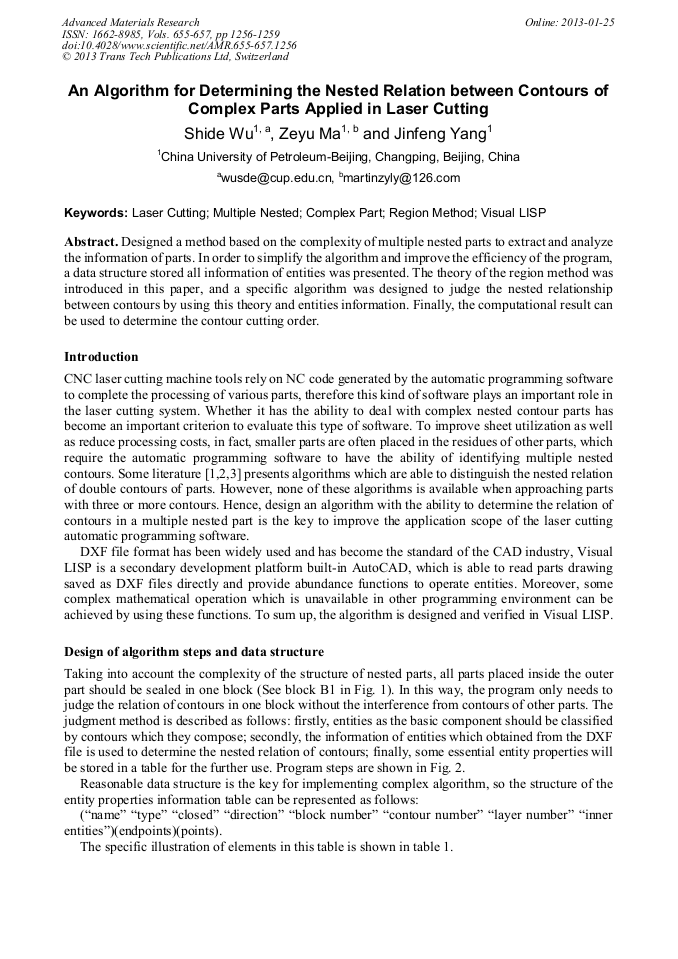

An Algorithm for Determining the Nested Relation between Contours of Complex Parts Applied in Laser Cutting

Abstract:

Designed a method based on the complexity of multiple nested parts to extract and analyze the information of parts. In order to simplify the algorithm and improve the efficiency of the program, a data structure stored all information of entities was presented. The theory of the region method was introduced in this paper, and a specific algorithm was designed to judge the nested relationship between contours by using this theory and entities information. Finally, the computational result can be used to determine the contour cutting order.
