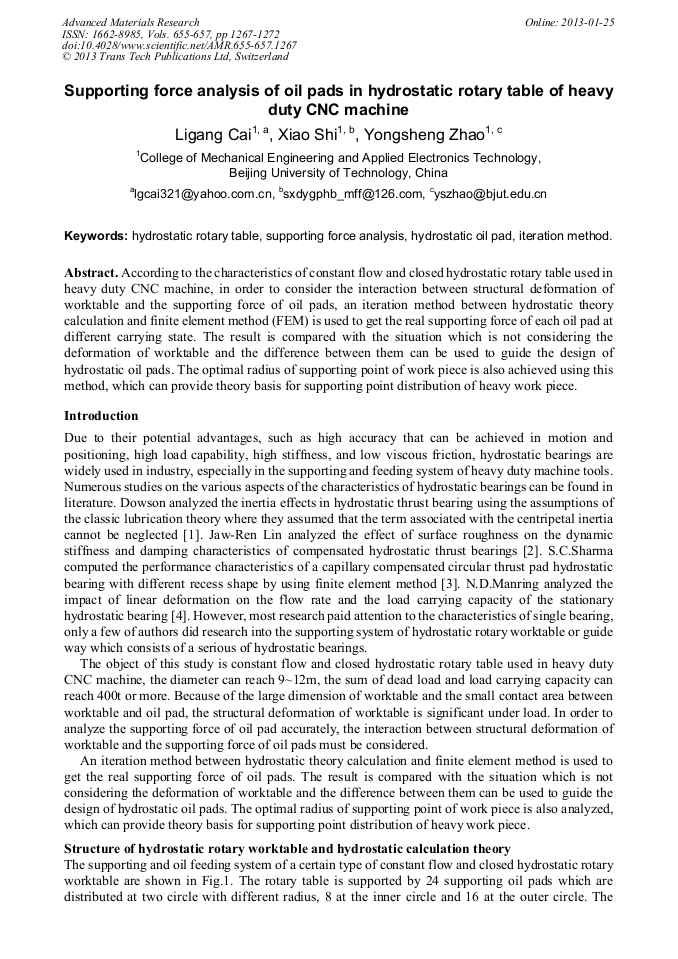

Supporting Force Analysis of Oil Pads in Hydrostatic Rotary Table of Heavy Duty CNC Machine

Abstract:

According to the characteristics of constant flow and closed hydrostatic rotary table used in heavy duty CNC machine, in order to consider the interaction between structural deformation of worktable and the supporting force of oil pads, an iteration method between hydrostatic theory calculation and finite element method (FEM) is used to get the real supporting force of each oil pad at different carrying state. The result is compared with the situation which is not considering the deformation of worktable and the difference between them can be used to guide the design of hydrostatic oil pads. The optimal radius of supporting point of work piece is also achieved using this method, which can provide theory basis for supporting point distribution of heavy work piece.
