Dynamic Simulation of Automatic Feeding Punch Mechanism Based on ADAMS

Abstract:

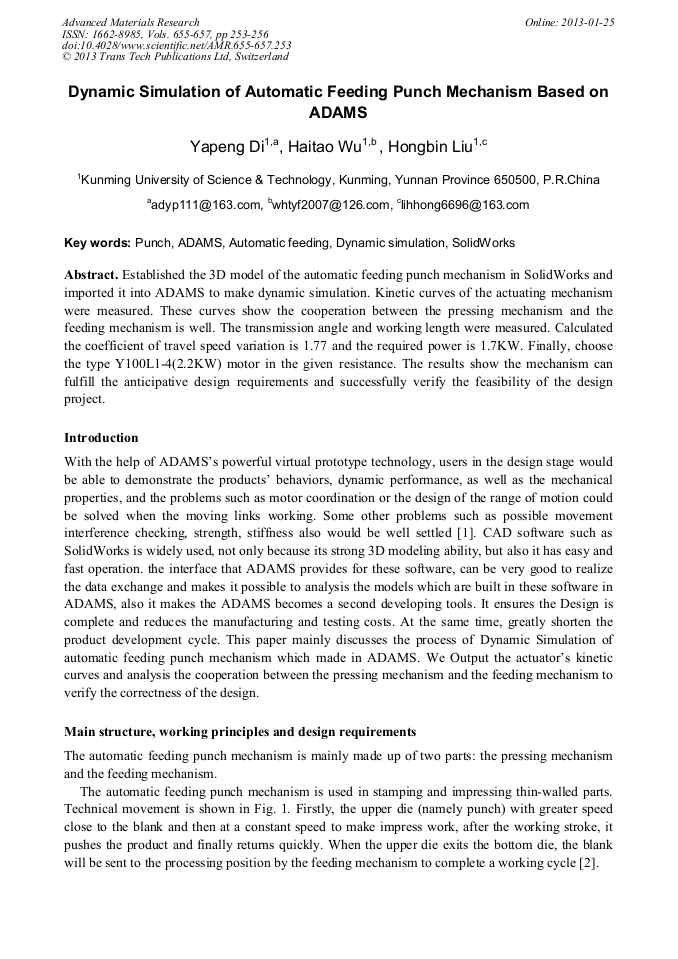

Established the 3D model of the automatic feeding punch mechanism in SolidWorks and imported it into ADAMS to make dynamic simulation. Kinetic curves of the actuating mechanism were measured. These curves show the cooperation between the pressing mechanism and the feeding mechanism is well. The transmission angle and working length were measured. Calculated the coefficient of travel speed variation is 1.77 and the required power is 1.7KW. Finally, choose the type Y100L1-4(2.2KW) motor in the given resistance. The results show the mechanism can fulfill the anticipative design requirements and successfully verify the feasibility of the design project.
