Parametric Design of Friction Plate Based on VB and Pro/E

Abstract:

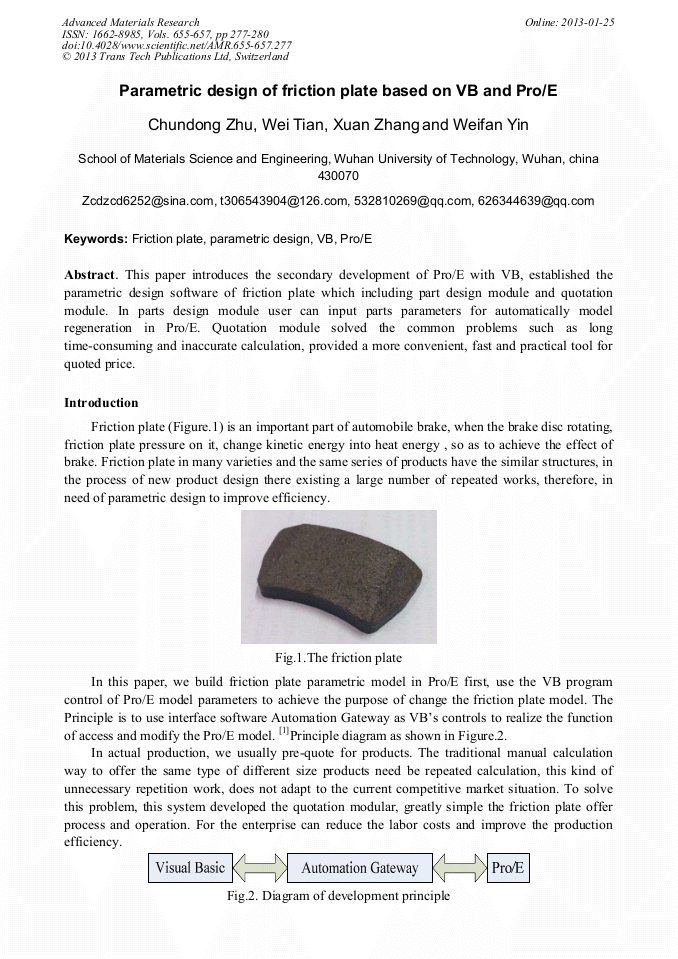

This paper introduces the secondary development of Pro/E with VB , established the parametric design software of friction plate which including part design module and quotation module. In parts design module user can input parts parameters for automatically model regeneration in Pro/E. Quotation module solved the common problems such as long time-consuming and inaccurate calculation, provided a more convenient, fast and practical tool for quoted price.

• Periodical: Advanced Materials Research (Volumes 655-657)
• Pages: 277-280
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.655-657.277
• Online since: January 2013
• Authors: Chun Dong Zhu, Wei Tian, Xuan Zhang, Wei Fan Yin
• Keywords: Friction Plate, Parametric Design, Pro/E, Visual Basic (VB)
