Optimal Design of Modified Cylindrical Gear Based on Minimum Flash Temperature of Tooth Surfaces

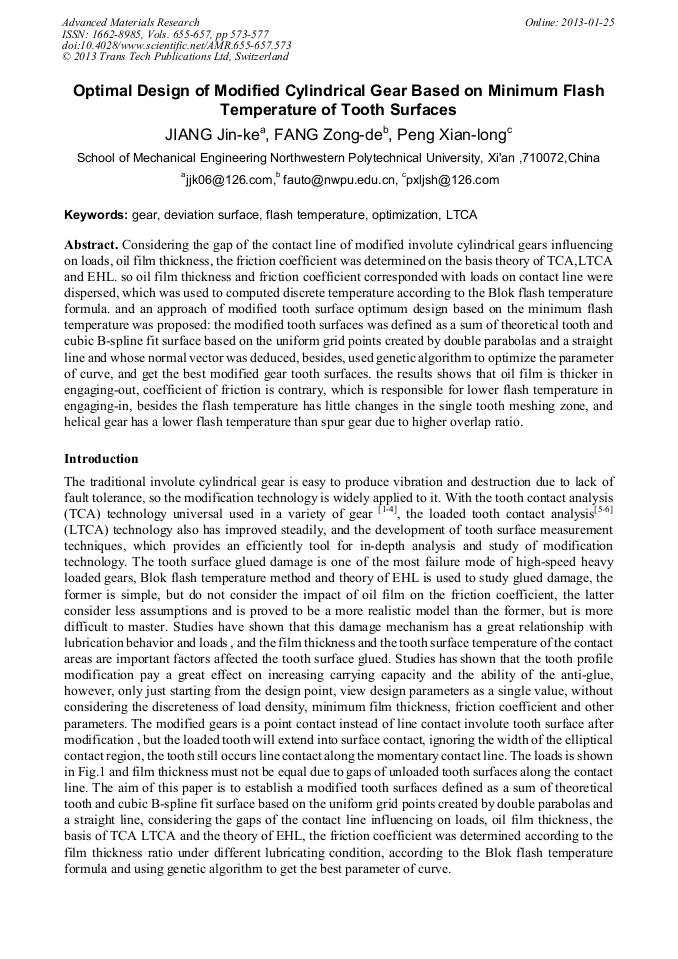

Abstract:

Considering the gap of the contact line of modified involute cylindrical gears influencing on loads, oil film thickness, the friction coefficient was determined on the basis theory of TCA、 LTCA and EHL. so oil film thickness and friction coefficient corresponded with loads on contact line were dispersed, which was used to computed discrete temperature according to the Blok flash temperature formula. and an approach of modified tooth surface optimum design based on the minimum flash temperature was proposed: the modified tooth surfaces was defined as a sum of theoretical tooth and cubic B-spline fit surface based on the uniform grid points created by double parabolas and a straight line and whose normal vector was deduced, besides, used genetic algorithm to optimize the parameter of curve, and get the best modified gear tooth surfaces. the results shows that oil film is thicker in engaging-out, coefficient of friction is contrary, which is responsible for lower flash temperature in engaging-in, besides the flash temperature has little changes in the single tooth meshing zone, and helical gear has a lower flash temperature than spur gear due to higher overlap ratio.

• Periodical: Advanced Materials Research (Volumes 655-657)
• Pages: 573-577
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.655-657.573
• Online since: January 2013
• Authors: Jin Ke Jiang, Zong De Fang, Xian Long Peng
• Keywords: Deviation Surface, Flash Temperature, Gear, LTCA, Optimization

References

[1] Qi Fan. Computerized design of new type spur, helical, spiral bevel and hypoid gear drives[D]. University of Illinois at Chicago,(2002), pp.20-22.

[2] Litvin.F.L:Computer Methods in Applied Mechanics and Engineering.Vol.192 (2002), pp.3619-3655.

[3] Litvin.F.L, Qi Fan:Computer Methods in Applied Mechanics and Engineering. Vol. 190 (2001), pp.5037-505.

[4] Alfonso Fuentes:Computer Methods in Applied Mechanics and Engineering.Vol.199(2010): pp.1677-1690.

[5] Zongde Fang: Journal of Aerospace Power. Vol.12(1997), pp.247-250. In Chinese.

[6] Y.Zhang.Z.Fang: Mechanism and Machine Theory.Vol.34 (1999), pp.41-57.

[7] Song He, Sungmin Cho. Journal of Sound and Vibration, Vol.309 (2008), pp.843-851.

[8] Hai Xu, B.S., M.S.E.,M.S. Development of a generalized mechanical efficiency prediction methodology for gear pairs[D]. The Ohio State University,2005.

[9] Gao Chuang-kuan. Study of Involute gearing Mixed EHL [D].ShanXi: TaiYuan University of Technology doctoral thesis,(2005). In Chinese.

[10] Yang Peiran, Wen Shizhu. A new solution method and more accurate film thickness formula based on EHL line contact. Tsinghua University Science Report, (1988). In Chinese.
