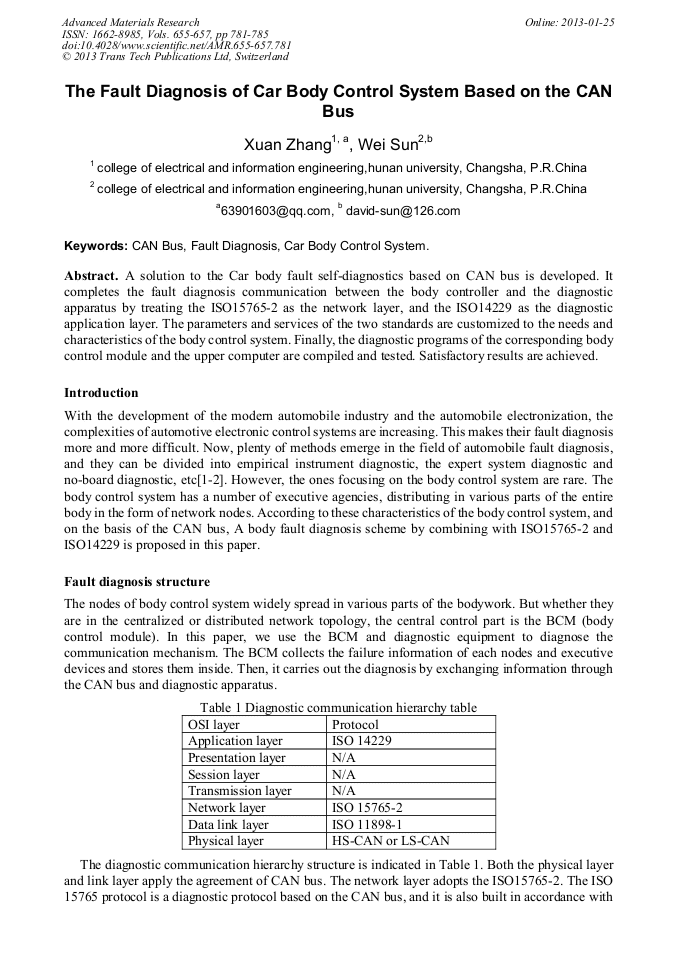

The Fault Diagnosis of Car Body Control System Based on the CAN Bus

Abstract:

A solution to the Car body fault self-diagnostics based on CAN bus is developed. It completes the fault diagnosis communication between the body controller and the diagnostic apparatus by treating the ISO15765-2 as the network layer, and the ISO14229 as the diagnostic application layer. The parameters and services of the two standards are customized to the needs and characteristics of the body control system. Finally, the diagnostic programs of the corresponding body control module and the upper computer are compiled and tested. Satisfactory results are achieved.

• Periodical: Advanced Materials Research (Volumes 655-657)
• Pages: 781-785
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.655-657.781
• Online since: January 2013
• Authors: Xuan Zhang, Wei Sun
• Keywords: CAN Bus, Car Body Control System, Fault Diagnosis

References

[1] Lili Zhang, Wei Chujiang, Tiangang Qiang, Daming Han, Cun Zouben: MECHANICAL RESEARCH & APPLICATION. 2008, 21(1), 2-16(in Chinese).

[2] Chunhua Song, Guangwei Xu: Equipment Maufactring Technology. 2011, 4, 128-130(in Chinese).

[3] Hong Zhang, Dekai Zan, Changjia Lin: Automotive Engineering. 2008, 30(10), 934-937(in Chinese).

[4] ISO15765-2. Road Vehicles -Diagnostics on Controller Area Networks (CAN). www. iso. org.

[5] ISO14229. Road vehicles — Unified diagnostic services (UDS) —Specification and requirements. www. iso. org.
