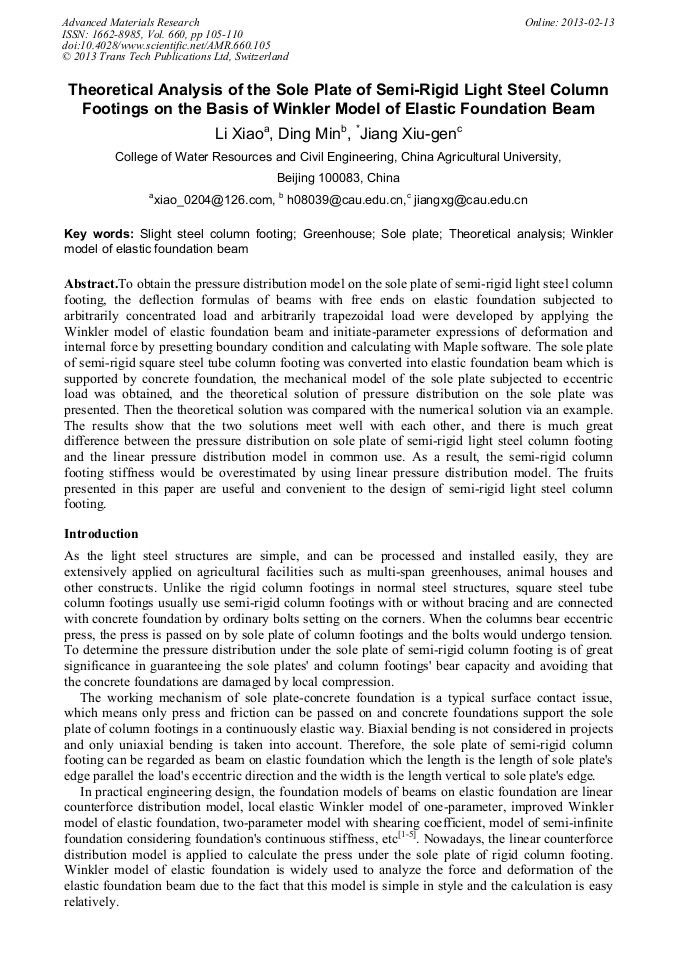

Theoretical Analysis of the Sole Plate of Semi-Rigid Light Steel Column Footings on the Basis of Winkler Model of Elastic Foundation Beam

Abstract:

To obtain the pressure distribution model on the sole plate of semi-rigid light steel column footing, the deflection formulas of beams with free ends on elastic foundation subjected to arbitrarily concentrated load and arbitrarily trapezoidal load were developed by applying the Winkler model of elastic foundation beam and initiate-parameter expressions of deformation and internal force by presetting boundary condition and calculating with Maple software. The sole plate of semi-rigid square steel tube column footing was converted into elastic foundation beam which is supported by concrete foundation, the mechanical model of the sole plate subjected to eccentric load was obtained, and the theoretical solution of pressure distribution on the sole plate was presented. Then the theoretical solution was compared with the numerical solution via an example. The results show that the two solutions meet well with each other, and there is much great difference between the pressure distribution on sole plate of semi-rigid light steel column footing and the linear pressure distribution model in common use. As a result, the semi-rigid column footing stiffness would be overestimated by using linear pressure distribution model. The fruits presented in this paper are useful and convenient to the design of semi-rigid light steel column footing.

• Periodical: Advanced Materials Research (Volume 660)
• Pages: 105-110
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.660.105
• Online since: February 2013
• Authors: Xiao Li, Min Ding, Xiu Gen Jiang
• Keywords: Greenhouse, Slight Steel Column Footing, Sole Plate, Theoretical Analysis, Winkler Model of Elastic Foundation Beam

References

[1] Long Yuqiu. Caculation method in elastic foundation beam [M]. Beijing: People's Education Press, 1981. (in Chinese).

[2] Bowles Joseph E．Foundation analysis and design[M]. New York McGraw—Hill Companies, Inc，1996.

[3] Hetenyi M．Beams on elastic foundation[M]. Michigan Ann Arbor：University of Michigan Press，1946.

[4] Yang Weijia. Trigonometric series method in elastic foundation beam [M]. Beijing: China WaterPower Press, 2005. (in Chinese).

[5] Selvadurai A P S．Elastic analysis of soil-foundation interaction[M]．Elsevier scientific publishing Co. ，1979.

[6] Liu Chang, Zheng Gang. Analysis of the influence of ground unequal settlement on the structure with elastic support model method [J]. Journal of Building Structures, 2004, 25(4): 124-128. (in Chinese).

[7] Chen Yuan, Qian Jiang. Fuzzy finite element analysis of beams and pileson winkler foundation [J]. Engineering Mechanics, 2004, 21(1): 125-130. (in Chinese).

[8] Zhang Qiangyong. Application of bar system FEM for beam on elastic foundation in supporting design for a deep and large foundation pit engineering [M]. Journal of Building Structures, 2005, 26(3): 114-117, 121. (in Chinese).

[9] Chen Tianyu, Zhang Kexu, Shan Xinbo. Modifying stiffness matrix method of elastic foundation beam [J]. Journal of Harbin University of Civil Engineering and Architecture, 2000, 33(2): 44-48. (in Chinese).

[10] Huang Yi, He Fangshe. Beam, plate and shell on elastic foundation [M]. Beijing: Science Press, 2005. (in Chinese).
