Joining Active Metals with Al₂O₃ by Use of Solders

Abstract:

The work deals with joining active metals as Ti, Zr and Hf with Al₂O₃ ceramics. The solubility of these active metals in selected Sn and In based solders was studied at a selected soldering temperature. Capability of active metals to wet Al₂O₃ ceramics and to form a diffusion bind was ascertained. Soldering was performed with Sn, Sn5Ag, In and In30Sn solders, which were enriched by an active element from metallic substrate of the joint in soldering process. Soldering temperature in vacuum varied from 770 to 870 °C and soldering time was selected from 8 to 20 min. It was found out that the most suitable metal for active solders is Ti, because it is dissolved in Sn solder already at temperature 780 °C. Wetting of ceramic Al₂O₃ substrate and formation of a diffusion bond was achieved already at temperature 830 °C/8 min. Diffusion bond with Zr was formed just at temperature 870 °C/20 min. and it was impossible to form a diffusion bond with Hf.

You might also be interested in these eBooks

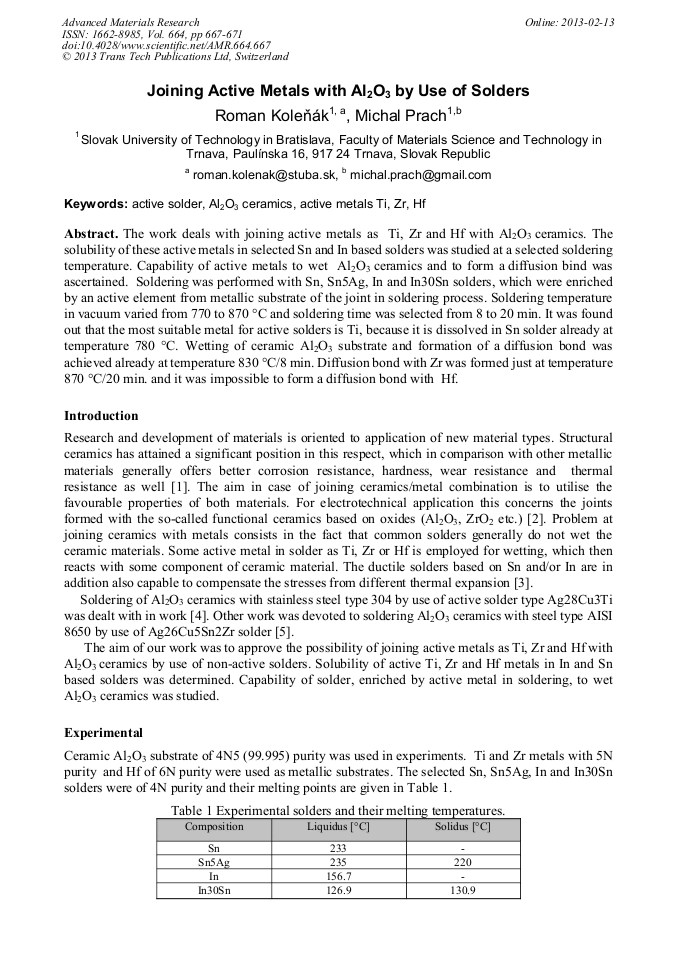

View Preview

Info:

Periodical:

Advanced Materials Research (Volume 664)

Pages:

667-671

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.664.667

Citation:

Cite this paper

Online since:

February 2013

Authors:

Roman Koleňák, Michal Prach

Keywords:

Active Metals Ti, Active Solder, Al₂O₃ Ceramics, HF, Zr

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] L. A. Dobrzański, J. Mikula: The structure and functional properties of PVD and CVD coated Al2O3 + ZrO2 oxide tool ceramics. In Journal of Materials Processing Technology, Vol. 167, Issues 2-3, 8/2005, pp.438-446.

DOI: 10.1016/j.jmatprotec.2005.05.034

Google Scholar

[2] Y. Zhang, D. Feng, Z. He, X. Chen: Progress in Joining Ceramics to Metals. In Journal of Iron and Steel Research, Vol. 13, Issue 2, 3/2006, pp.1-5.

Google Scholar

[3] R. Koleňák, P. Šebo, M. Koleňáková, K. Ulrich: Shear strength and wettability of active Sn3. 5Ag4Ti(Ce, Ga) solder on Al2O3 ceramics. In Materials & Design, Vol. 32, Issue 7, 8/2011, pp.3997-4003.

DOI: 10.1016/j.matdes.2011.03.022

Google Scholar

[4] Kar A., Mandal S., et al.: Characterization of interface of Al2O3–304 stainless steel braze joint. In Materials Characterization, Vol. 58, Issue 6, June 2007, pp.555-562.

DOI: 10.1016/j.matchar.2006.12.001

Google Scholar

[5] Yoo Y.C., Kim J.H., Park K.: Microstructural characterization of Al2O3/AISI 8650 steel joint brazed with Ag-Cu-Sn-Zr alloy. In Materials Letters, Vol. 42, Issue 6, March 2000, pp.362-366.

DOI: 10.1016/s0167-577x(99)00212-8

Google Scholar
