Nano Composite PVA-TiO₂ Thin Films for OTFTs

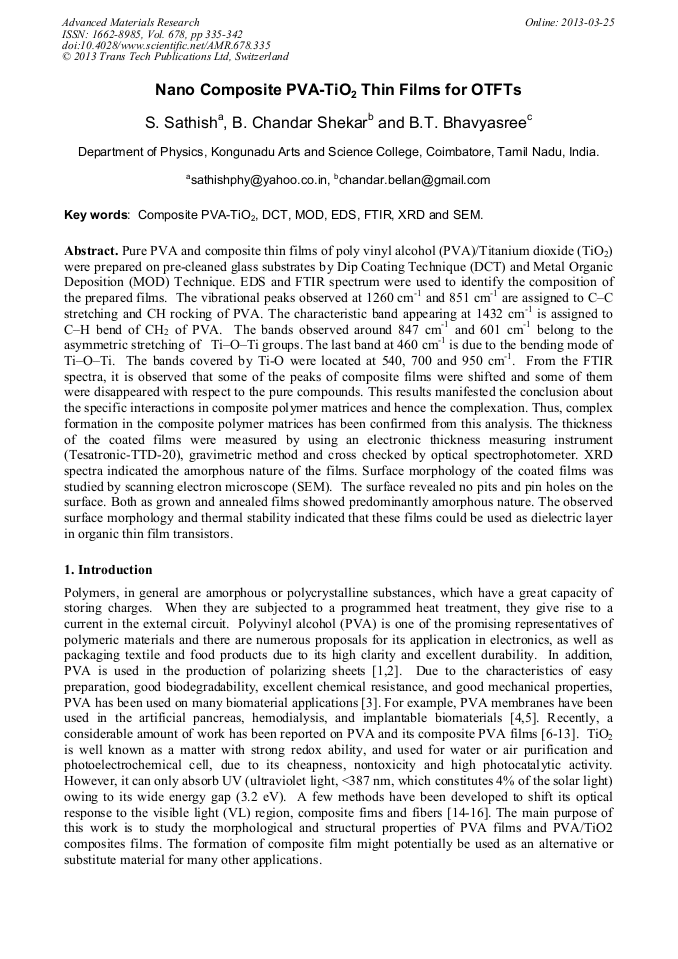

Article Preview

Abstract:

Pure PVA and composite thin films of poly vinyl alcohol (PVA)/Titanium dioxide (TiO2) were prepared on pre-cleaned glass substrates by Dip Coating Technique (DCT) and Metal Organic Deposition Technique (MODT). EDS and FTIR spectrum were used to identify the composition of the prepared films. The vibrational peaks observed at 1260 cm-1 and 851 cm-1 are assigned to C–C stretching and CH rocking of PVA. The characteristic band appearing at 1432 cm-1 is assigned to C–H bend of CH2 of PVA. The bands observed around 847 cm-1 and 601cm-1 belong to the asymmetric stretching of Ti–O–Ti groups. The last band at 460 cm-1 is due to the bending mode of Ti–O–Ti. The bands covered by Ti-O were located at 540, 700 and 950 cm-1. From the FTIR spectra, it is observed that some of the peaks of composite films were shifted and some of them were disappeared with respect to the pure compounds. This results manifested the conclusion about the specific interactions in composite polymer matrices and hence the complexation. Thus, complex formation in the composite polymer matrices has been confirmed from this analysis. The thickness of the coated films were measured by using an electronic thickness measuring instrument (Tesatronic-TTD-20), gravimetric method and cross checked by optical spectrophotometer. XRD spectra indicated the amorphous nature of the films. Surface morphology of the coated films was studied by scanning electron microscope (SEM). The surface revealed no pits and pin holes on the surface. Both as grown and annealed films showed predominantly amorphous nature. The observed surface morphology and thermal stability indicated that these films could be used as dielectric layer in organic thin film transistors.

You might also be interested in these eBooks

Advances in Nanoscience and Nanotechnology

Info:

Periodical:

Advanced Materials Research (Volume 678)

Pages:

335-342

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.678.335

Citation:

Cite this paper

Online since:

March 2013

Authors:

S. Sathish, Bellan Chandar Shekar, B.T. Bhavyasree

Keywords:

Composite PVA-TiO₂, DCT, EDS, FT-IR, MOD, SEM, X-Ray Diffraction (XRD)

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2013 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

[1] E.H. Land, Some aspects of the development of sheet polarizers, J. Opt. Soc. Am., 41(1951) 957-962.

DOI: 10.1364/josa.41.000957

[2] H. Klauk, D.J. Gundlach, M. Bonse, C-C. Kuo and T.N. Jackson, A Reduced Complexity Process for Organic Thin Film Transistors, Appl. Phys. Lett. 76 (2000) 1692-1694.

DOI: 10.1063/1.126138

[3] J.S., Park J.W. Park and E. Ruckenstein, Thermal and dynamic mechanical analysis of PVA/MC blend hydrogels Polym. 42 (2001) 4271–4280.

DOI: 10.1016/s0032-3861(00)00768-0

[4] K. Burczak, E. Gamian and A. Kochman A, Long-term in vivo performance and bio-compatibility of poly(vinyl alcohol) hydrogel macrocapsules for hybrid-type artificial pancreas, Bio.mater. 17 (1996) 2351–2356.

DOI: 10.1016/s0142-9612(96)00076-2

[5] K.Y. Jung and S.B. Park, Linear relationship between the crystallite size and the photoactivity of non-porous titania ranging from nanometer to micrometer size, Appl. Catal. A 224 (2002) 229–237.

DOI: 10.1016/s0926-860x(01)00784-0

[6] S.K. Tzeng, M.H. Hon, I.C. Leu, Growth characteristics of ultra long double-ended acicular ZnO synthesized by a hydrothermal process,J.Cryst Growth, 311 (2009) 4510-4517.

DOI: 10.1016/j.jcrysgro.2009.08.015

[7] S.Tripathi, G.K. Mehrotra and P.K. Dutta, Physicochemical and bioactivity of cross-linked chitosan–PVA film for food packaging applications, J. Bio.Macro. 45 (2009) 372-376.

DOI: 10.1016/j.ijbiomac.2009.07.006

[8] A. Sionkowska, A. Planecka, J. Koza, J. owska, Surface properties of UV- irradiated poly(vinyl alcohol) films containing small amount of collagen, Appl. Surf. Sci. 255 (2009) 4135-4139.

DOI: 10.1016/j.apsusc.2008.10.108

[9] Sandra Jeck, Philip Scharfer, Matthias Kind, Water sorption in physically crosslinked poly(vinyl alcohol) membranes: An experimental investigation of Schroeder's paradox, J. Memb. Sci. 337 (2009) 291-296.

DOI: 10.1016/j.memsci.2009.03.056

[10] A.EL-Khodary, Vibrational, thermal, optical and magnetic investigations of PVA films filled with FeCl3 and CoCl2 Physica B:Condensed Matter. 404 (2009) 1287-1294.

DOI: 10.1016/j.physb.2008.11.238

[11] B.P. Tripathi and V.K. Shahi, Organic–inorganic nanocomposite polymer electrolyte membranes for fuel cell Applications, Prog. Polym. Sci. 36 ( 2011) 945-979.

DOI: 10.1016/j.progpolymsci.2010.12.005

[12] S.J. Lue, K.P.O. Mahesh, W.T. Wang, J.Y. Chen and C.C. Yang , Permeant transport properties and cell performance of potassium hydroxide doped poly(vinyl alcohol)/fumed silica nanocomposites, J. Memb. Sci. 367 (2011) 256-264.

DOI: 10.1016/j.memsci.2010.11.009

[13] D. Saikia, P.K. Saikia, P.K. Gogoi and P. Saikia, Synthesis, characterization and photovoltaic application of silver doped CdS/PVA nanocomposite thin films, Digest Journal of nanomaterials and Biostructures. 6 (2011) 589-597.

DOI: 10.1016/j.matchemphys.2011.09.011

[14] R.M. Mohamed, A.A. Ismail, I. Othman and I.A. Ibrahim, Preparation of TiO2-ZSM-5 zeolite for photodegradation of EDTA, J. Mol.Catal. A- Chem. 238 (2005) 151-157.

DOI: 10.1016/j.molcata.2005.05.023

[15] M. Gratzel, Dye-sensitized Solar cells, J. Photochem. Photobiol. C: Photochem. Rev. 4 (2003) 145 -153.

[16] N.Ristolainen, P. Heikkila, A. Harlin and J. Seppala, Electrospun nanofibers prepared by two methods: In situ emulsion polymerized PVA/NanoTiO2 and mixing of functional PVA with nano TiO2, AUTEX Research Journal. 8 (2008) 35-40.

[17] J. Li, J.F. Revol and R.H. Marchessault, Effect of degree of deacetylation of chitin on the properties of chitin crystallites, J .Appl. Poly. Sci. 65 (1998) 373-380.

DOI: 10.1002/(sici)1097-4628(19970711)65:2<373::aid-app18>3.0.co;2-0

[18] R.Jayasckara,I.Bowater G.B.Y. Christic and G.T. Lonergan, Preparation,surface modification and characterization of solution cost starch PVA blended films, Polym.Test.23(2004)17-27.

DOI: 10.1016/s0142-9418(03)00049-7

[19] B.V.K. Naidu, M.Sairam, K.V.S.N. Raju and T.M. Aminabhavi, Pervaporation separation of water + isopropanol mixtures using novel nanocomposite membranes of poly(vinyl alcohol) and polyaniline J. Memb.Sci. 260 (2005) 142-155.

DOI: 10.1016/j.memsci.2005.03.037

[20] M.Tsukada, G.Freedi and J.S. Crighton, Structure and compatibility of poly (vinyl alcohol)- silk fibroin (PVA/SF) blend films,J. Polym. Sci. 32 (1994) 243-248.

DOI: 10.1002/polb.1994.090320205

[21] J.F. Kenny and G.W. Willcockson, J. Polym. Sci:A.1 4 (1996) 67.

[22] S.Krimm, C.Y. Liang and G.B.B.M. Sutherland, Infrared spectra of high polymers vs poly- vinyl alcohol, J. Polym. Sci. 22 (1956) 227-247.

DOI: 10.1002/pol.1956.1202210106

[23] A.Elliot E.J. Ambrose and R.B. Temple, Polarized infrared radiation as an aid to the structural analysis of long-chain polymers, J. Chem Phys. 16 (1948) 877-886.

DOI: 10.1063/1.1747026

[24] K. Ogura, T. Saino, M. Nakayama and H. Shiigi, The humidity dependance of the electrical conductivity of a soluble polyaniline-polyvinlalcogol composite film, J. Mater. Chem. 12 (1997) 2363-2366.

DOI: 10.1039/a705463g

[25] A. M. Shehap, thermal and spectroscopic studies of polyvinyl alcogol/sodium carboxy methyl cellulose blends, Egypt. J. Solids. 31 (2008) 75-91.

DOI: 10.21608/ejs.2008.148824

[26] P. K. Khanna, N Singh and S. Charan, Synthesis of nano-particles of anatase-TiO2 and preparation of its optically transparent film in PVA, Mater. Let. 61 (2007) 4725-4730.

DOI: 10.1016/j.matlet.2007.03.064

[27] A. Lagashetty, V. Havanoor, S. Basavaraja and A. Venkataraman, Synthesis of MoO3 and its polyvinyl alcohol nanostructured film, Bull. Mater. Sci. 28 (2005) 477-481.

DOI: 10.1007/bf02711240

[28] M.Tsukada, G.Freddt and J.S. Crighton, Structure and compatibility of poly (vinyl alcohol)- silk fibroin (PVA/SF) blend films, J.of Polym Sci. 32 (1994) 243-248.

DOI: 10.1002/polb.1994.090320205

[29] H. Kangarlou and S. Rafizadeh, Investigation of optical and structural properties of titanium very thin layer under heat process, Aust. J. Basic Appl. Sci. 5 (2011) 1182-1187.

[30] B.Chandar Shekar, V.Veeravazhuthi, S.Sakthivel, D.Mangalaraj and Sa.K. Narayandass, Growth, structure, dielectric and AC conduction properties of solution grown PVA films, Thin Solid Films. 348 (1999) 122-129.

DOI: 10.1016/s0040-6090(99)00027-9
