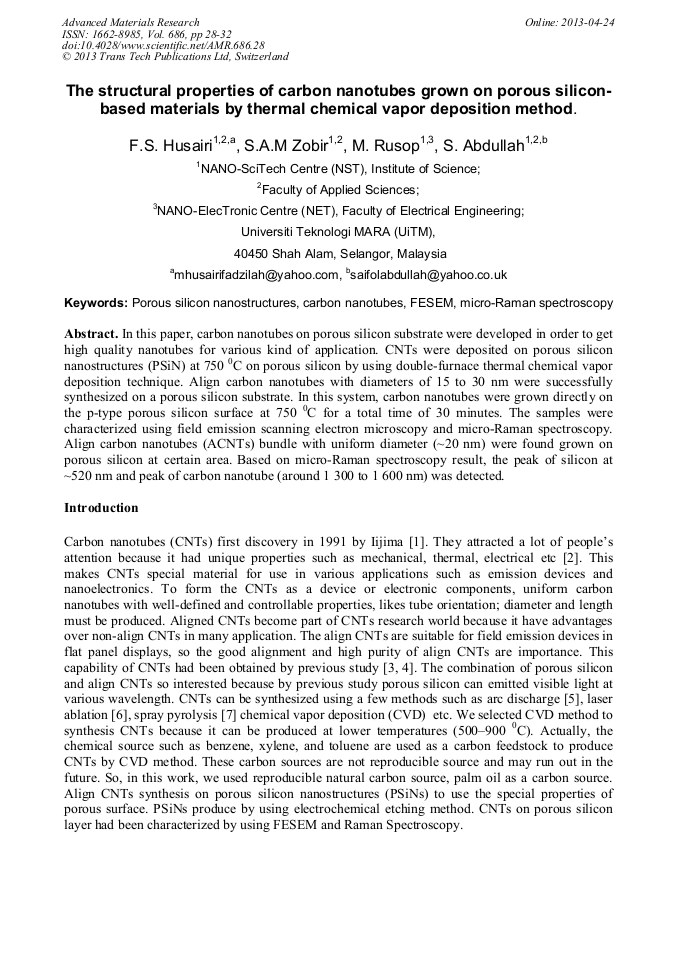

The Structural Properties of Carbon Nanotubes Grown on Porous Silicon-Based Materials by Thermal Chemical Vapor Deposition Method

Abstract:

In this paper, carbon nanotubes on porous silicon substrate were developed in order to get high quality nanotubes for various kind of application. CNTs were deposited on porous silicon nanostructures (PSiN) at 750 0C on porous silicon by using double-furnace thermal chemical vapor deposition technique. Align carbon nanotubes with diameters of 15 to 30 nm were successfully synthesized on a porous silicon substrate. In this system, carbon nanotubes were grown directly on the p-type porous silicon surface at 750 0C for a total time of 30 minutes. The samples were characterized using field emission scanning electron microscopy and micro-Raman spectroscopy. Align carbon nanotubes (ACNTs) bundle with uniform diameter (~20 nm) were found grown on porous silicon at certain area. Based on micro-Raman spectroscopy result, the peak of silicon at ~520 nm and peak of carbon nanotube (around 1 300 to 1 600 nm) was detected.

• Periodical: Advanced Materials Research (Volume 686)
• Pages: 28-32
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.686.28
• Online since: April 2013
• Authors: Mohd Husairi Fadzilah Suhaimi, S.A.M. Zobir, Mohamad Rusop, Saifolah Abdullah
• Keywords: Carbon Nanotube (CN), FESEM, Micro-Raman Spectroscopy, Porous Silicon Nanostructures

References

[1] S. Iijima, Helical microtubules of graphitic carbon, Nature, vol. 354, pp.56-58, (1991).

DOI: 10.1038/354056a0

[2] R. Saito, M. S. Dresselhaus, and G. Dresselhaus, Physical Properties of Carbon Nanotubes Paperback ed.: Physical Properties of Carbon Nanotubes (1998).

DOI: 10.1142/p080

[3] Z. F. Ren, Z. P. Huang, J. W. Xu, J. H. Wang, P. Bush, M. P. Siegal, and P. N. Provencio, Synthesis of Large Arrays of Well-Aligned Carbon Nanotubes on Glass, Science, vol. 282. , pp.1105-1107, (1998).

DOI: 10.1126/science.282.5391.1105

[4] R. Andrews, D. Jacques, A. M. Rao, F. Derbyshire, D. Qian, X. Fan, E. C. Dickey, and J. Chen, Continuous production of aligned carbon nanotubes: a step closer to commercial realization, Chemical Physics Letters, vol. 303, pp.467-474, (1999).

DOI: 10.1016/s0009-2614(99)00282-1

[5] C. Journet, W. K. Maser, P. Bernier, A. Loiseau, M. L. d. l. Chapelle, S. Lefrant, P. Deniard, R. Lee, and J. E. Fischer, Large scale production of single wall carbon nanotubes by the electric arc technique, Nature 388, pp.756-758, (1997).

DOI: 10.1038/41972

[6] T. Guo, P. Nikolaev, A. Thess, D. T. Colbert, and R. E. Smalley, Catalytic growth of single-walled nanotubes by laser vaporization, Chemical Physics Letters, vol. 243, pp.49-54, (1995).

DOI: 10.1016/0009-2614(95)00825-o

[7] R. A. Afre, T. Soga, T. Jimbo, M. Kumar, Y. Ando, M. Sharon, P. R. Somani, and M. Umeno, Carbon nanotubes by spray pyrolysis of turpentine oil at different temperatures and their studies, Microporous and Mesoporous Materials, vol. 96, p.184–190, (2006).

DOI: 10.1016/j.micromeso.2006.06.036

[8] S. A. Bakar, S. Muhamad, P. S. M. Saad, S. A. M. Zobir, R. M. Nor, Y. M. Siran, S. A. M. Rejab, A. J. Asis, S. Tahiruddin, S. Abdullah, and M. R. Mahmood, The Effect of Precursor Vaporization Temperature on the Growth of Vertically Aligned Carbon Nanotubes using Palm Oil, Defect and Diffusion Forum, vol. 312-315 pp.906-911, (2011).

DOI: 10.4028/www.scientific.net/ddf.312-315.906

[9] W. Y. Lee, T. X. Liao, Z. Y. Juang, and C. H. Tsai, Patterned aligned growth of carbon nanotubes on porous structure templates using chemical vapor deposition methods, Diamond and Related Materials, vol. 13, pp.1232-1236, (2004).

DOI: 10.1016/j.diamond.2004.01.030

[10] M. S. Dresselhaus, G. Dresselhaus, A. Jorio, A. G. Souza Filho, and R. Saito, Raman spectroscopy on isolated single wall carbon nanotubes, Carbon, vol. 40, pp.2043-2061, (2002).

DOI: 10.1016/s0008-6223(02)00066-0
