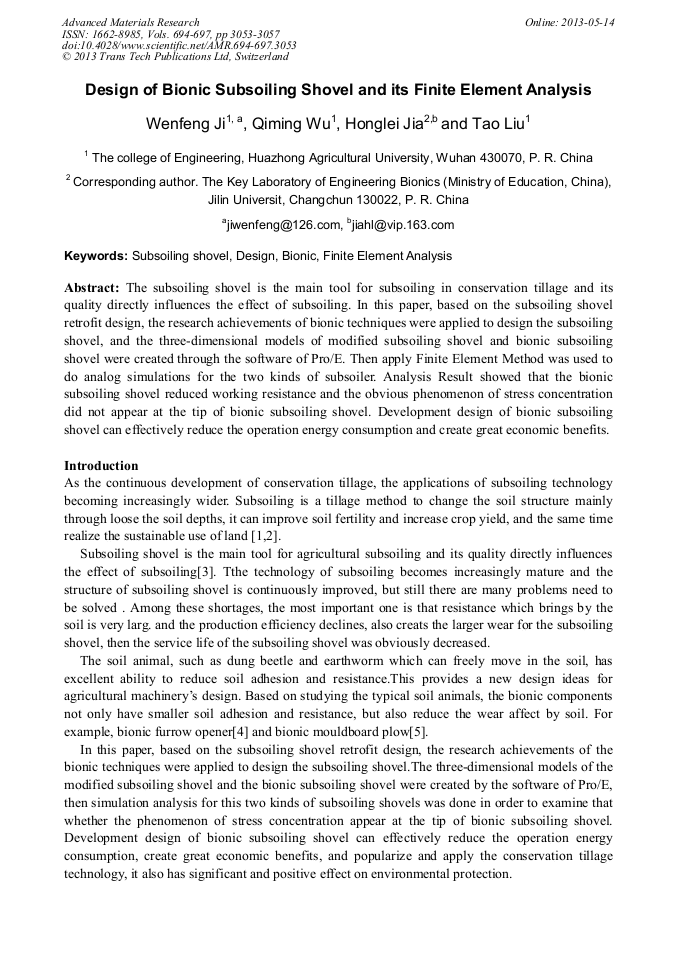

Design of Bionic Subsoiling Shovel and its Finite Element Analysis

Abstract:

The subsoiling shovel is the main tool for subsoiling in conservation tillage and its quality directly influences the effect of subsoiling. In this paper, based on the subsoiling shovel retrofit design, the research achievements of bionic techniques were applied to design the subsoiling shovel, and the three-dimensional models of modified subsoiling shovel and bionic subsoiling shovel were created through the software of Pro/E. Then apply Finite Element Method was used to do analog simulations for the two kinds of subsoiler. Analysis Result showed that the bionic subsoiling shovel reduced working resistance and the obvious phenomenon of stress concentration did not appear at the tip of bionic subsoiling shovel. Development design of bionic subsoiling shovel can effectively reduce the operation energy consumption and create great economic benefits.

• Periodical: Advanced Materials Research (Volumes 694-697)
• Pages: 3053-3057
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.694-697.3053
• Online since: May 2013
• Authors: Wen Feng Ji, Qi Ming Wu, Hong Lei Jia, Tao Liu
• Keywords: Bionic, Design, Finite Element Analysis (FEA), Subsoiling Shovel

References

[1] H. Gao, and W. Li. in: Conservation Tillage Technology and Equipment. Chemical Industry Press of China (2004) (in Chinese)

[2] J. He, H. Li, X. Wang, A.D. McHugh, W. Li, H. Gao, N.J. Kuhn. The adoption of annual subsoiling as conservation tillage in dryland maize and wheat cultivation in northern China: submitted to Soil and Tillage Research (2007)

DOI: 10.1016/j.still.2006.10.005

[3] I. Akinci, E. Cakir, M. Topakci, M. Canakci, and O. Inan. The effect of subsoiling on soil resistance and cotton yield: submitted to Soil and Tillage Research (2004)

DOI: 10.1016/j.still.2003.12.006

[4] J. Tong, B. Z. Moayad, D. Chen, and J. Sun. Effects of biomimetic surface on designs on furrow opener performance: submitted to Journal of Bionic Engineering (2009)

DOI: 10.1016/s1672-6529(08)60128-6

[5] J. Li, L. Ren, Z. Cui, J. Tong, and B. Chen. Experiments on plow mold boards with bionics unsmoothed surface: submitted to Proceedings of the 13th International Conference of the ISTVS (1999)

[6] H. Wang, W. Zhang. Optimization design of the subsoiling shovel structural parameters based on Pro/E: submitted to Journal of Agricultural Mechanization Research (2011)

[7] Q. Deng: The Mechanism of Reducing Soil Adhesion and the Design of Bionic Plow (2004).

[8] Q. Cone, L. Ren, B. Chen. Using characteristic of borrowing animals to reduce soil-tool adhesion: submitted to Transaction of the ASAE (1999)
