Electrical Conductivity and Hardness Property of CNTs/Epoxy Nanocomposites

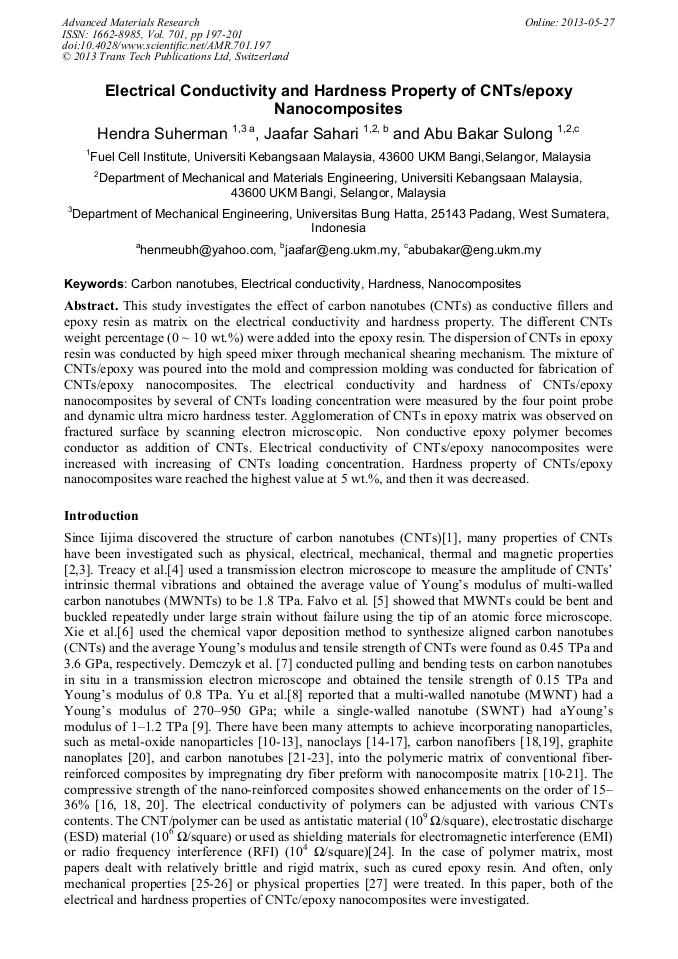

Article Preview

Abstract:

This study investigates the effect of carbon nanotubes (CNTs) as conductive fillers and epoxy resin as matrix on the electrical conductivity and hardness property. The different CNTs weight percentage (0 ~ 10 wt.%) were added into the epoxy resin. The dispersion of CNTs in epoxy resin was conducted by high speed mixer through mechanical shearing mechanism. The mixture of CNTs/epoxy was poured into the mold and compression molding was conducted for fabrication of CNTs/epoxy nanocomposites. The electrical conductivity and hardness of CNTs/epoxy nanocomposites by several of CNTs loading concentration were measured by the four point probe and dynamic ultra micro hardness tester. Agglomeration of CNTs in epoxy matrix was observed on fractured surface by scanning electron microscopic. Non conductive epoxy polymer becomes conductor as addition of CNTs. Electrical conductivity of CNTs/epoxy nanocomposites were increased with increasing of CNTs loading concentration. Hardness property of CNTs/epoxy nanocomposites ware reached the highest value at 5 wt.%, and then it was decreased.

You might also be interested in these eBooks
Key Engineering Materials III View Preview

Info:

Periodical:

Advanced Materials Research (Volume 701)

Pages:

197-201

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.701.197

Citation:

Cite this paper

Online since:

May 2013

Authors:

Hendra Suherman, Jaafar Sahari, Abu Bakar Sulong

Keywords:

Carbon Nanotube (CN), Electrical Conductivity, Hardness, Nanocomposite

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2013 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

References

[1] S. Iijima: Nature. Vol. 354 (1991), p.56

Google Scholar

[2] F. Beguin and P. Ehrburger: Carbon Vol. 40 (2002), p.1619.

Google Scholar

[3] S. Subramoney: Adv Mater. Vol. 10 (1998), p.1157

Google Scholar

[4] M.M.J. Treacy, T.W. Ebbesen and J.M. Gibson: Nature Vol. 381 (1996), p.678

Google Scholar

[5] M.R. Falvo, G.J. Clary, S.Washburn and R. Superfine: Nature Vol. 389 (1997), p.582

Google Scholar

[6] S, Xie. W. Li, Z. Pan, B. Chang and L. Sun: J. Phys. Chem. Solids Vol. 61 (2000), p.1153

Google Scholar

[7] B.G. Demczyk, Y.M. Wang, J. Cumings, M. Hetman, W. Han, A. Zettl and R.O. Ritchie: Material science engineering A Vol. 334 (2002), p.173

DOI: 10.1016/s0921-5093(01)01807-x

Google Scholar

[8] M.F. Yu, O. Lourie, M.J. Dyer, K. Moloni, T.F. Kelly and R.S. Ruoff: Science Vol.287 (2000), p.637

Google Scholar

[9] E.T. Thostenson, Z. Ren and T.W. Chou: Compos. Sci. Tech. Vol. 61 (2001), p.1899

Google Scholar

[10] M. Hussain, A. Nakahira and K. Niihara: Material Letters Vol. 26 (1996), p.185

Google Scholar

[11] L.X. Jiang, S.Y. He and D.Z. Yang: J. Material Research Vol. 18 (2003), p.654

Google Scholar

[12] N. Shahid, R.G. Villate and A.R. Barron: Compos. Sci. Techn. Vol 65 (2005), p.2250

Google Scholar

[13] F.H. Su, Z.Z. Zhang and W.M. Liu: Wear Vol. 260 (2006), p.861

Google Scholar

[14] D.Dean, A.M. Obore, S.Richmond and E. Nyairo: Compos.Sci.Tech. Vol. 66 (2006), p.2135

Google Scholar

[15] N.A. Siddiqui, R.S.C. Woo, J.K. Kim, C.C.K. Leung and A. Munir: Compos. A. Applied Science Manufacturing Vol. 38 (2007), p.449

Google Scholar

[16] A.K. Subramaniyan and C.T. Sun: Compos. A. Applied Science Manufacturing Vol. 37 (2006), p.2257

Google Scholar

[17] J.F. Timmerman, B.S. Hayes and J.C Seferis: Compos. Sci. Tech. Vol. 62 (2002), p.1249

Google Scholar

[18] Y. Iwahori, S. Ishiwata, T. Sumizawa and T. Ishikawa: Compos. A. Applied Science Manufacturing Vol. 36 (2005), p.1430

Google Scholar

[19] Y.Z. Zhou, F. Pervin, V.K. Rangari and S. Jeelani: Mater. Sci. Eng. A Vol. 426 (2006), p.221

Google Scholar

[20] J. Cho, J.Y. Chen and I.M. Daniel: Scr. Mater Vol. 56 (2007), 685

Google Scholar

[21] F.H. Gojny, M.H.G. Wichmann, B. Fiedler, W. Bauhofer and K. Schulte: Compos. A Appl. Sci. Manuf. Vol. 36 (2005), p.1525

Google Scholar

[22] H. Suherman, J. Sahari and A.B. Sulung: Advanced Materials Research Vol. 264-265 (2011), p.559

Google Scholar

[23] H. Suherman, J. Sahari and A.B. Sulung: Key Engineering Materials Vol. 447-448 (2010), p.614

Google Scholar

[24] S.M. Yuen, C.C. Ma, H.H. Wu, H.C. Kuan, W.J. Chen and S.H. Liao: J. Applied Polymer Science Vol. 103 (2007), p.1272

Google Scholar

[25] S. Kumar, H. Doshi, M. Srinivasarao, J.O. Park and D.A. Schiraldi: Polymer Vol. 43 (2002), p.1701

Google Scholar

[26] D. Qian, E.C. Dickey, R. Andrews and T. Rantell: Applied Physical Letter Vol. 76 (2000), p.2868

Google Scholar

[27] J. Sandler, M.S.P. Shaffer, T. Prasse, T. Bauhofer, W. Schulte K and Windle, A.H: Polymer Vol. 40 (1999), p.5967

DOI: 10.1016/s0032-3861(99)00166-4

Google Scholar

[28] H. Suherman, A.B. Sulung and J. Sahari: International Journal of Mechanical and Materials Engineering (IJMME) Vol. 5 (2010), p.74

Google Scholar

[29] H. Suherman, A.B. Sulung and J. Sahari: Ceramics International Vol. 39 (2013), p.1277

Google Scholar

[30] J.H. Lee, Y.K. Jang, C.E. Hong, N.H. Kim, P. Lee and H.K. Lee: Journal of Power Sources Vol. 193 (2009), p.523

Google Scholar
