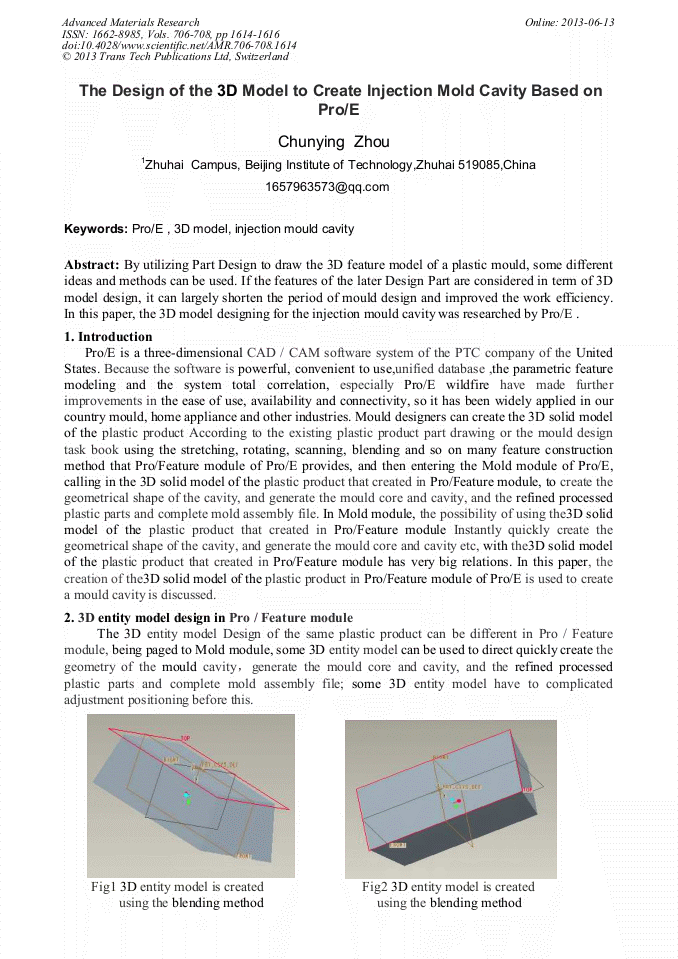

The Design of the 3D Model to Create Injection Mold Cavity Based on Pro/E
Abstract:
By utilizing Part Design to draw the 3D feature model of a plastic mould, some different ideas and methods can be used. If the features of the later Design Part are considered in term of 3D model design, it can largely shorten the period of mould design and improved the work efficiency. In this paper, the 3D model designing for the injection mould cavity was researched by Pro/E .
