Hardware Design of Microcomputer Relay Protection Device Based on ARM&DSP

Abstract:

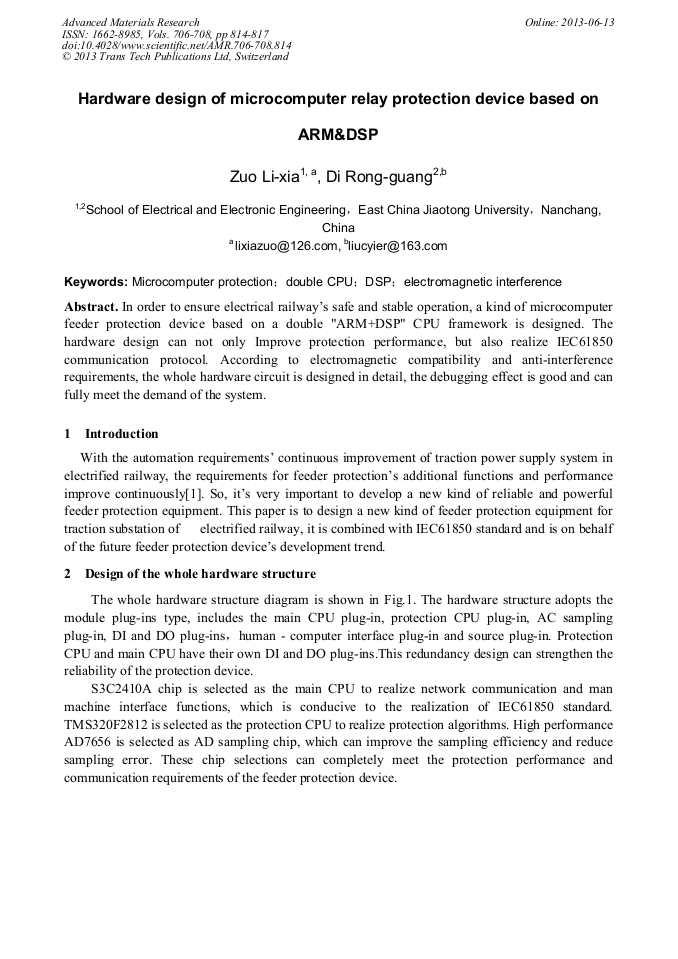

In order to ensure electrical railway’s safe and stable operation, a kind of microcomputer feeder protection device based on a double "ARM+DSP" CPU framework is designed. The hardware design can not only Improve protection performance, but also realize IEC61850 communication protocol. According to electromagnetic compatibility and anti-interference requirements, the whole hardware circuit is designed in detail, the debugging effect is good and can fully meet the demand of the system.
