Impact Damage Research of Composite Laminates with AL Ply

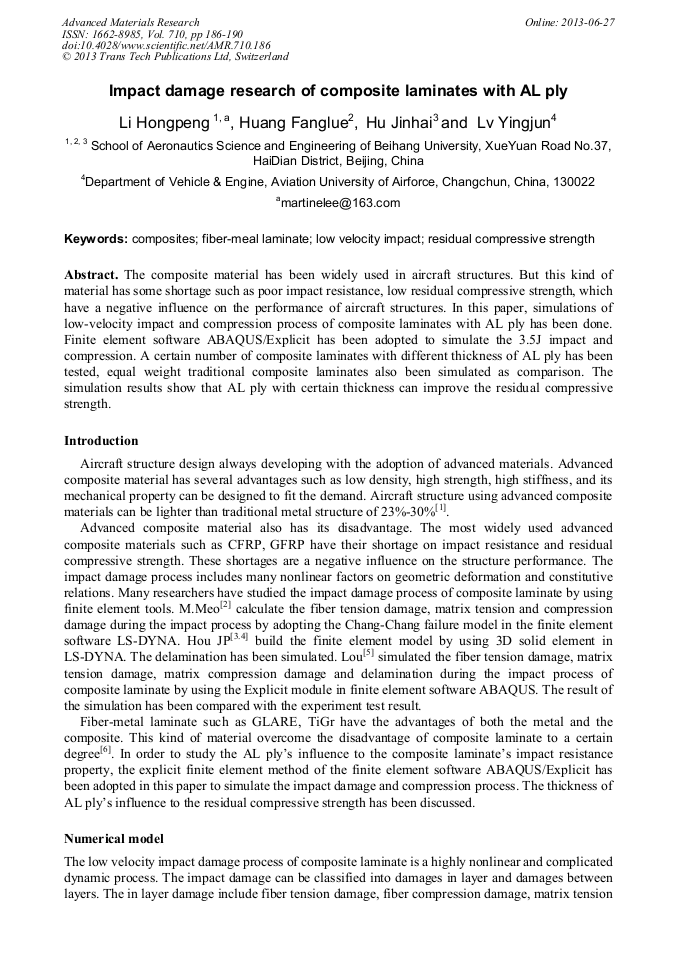

Article Preview

Abstract:

The composite material has been widely used in aircraft structures. But this kind of material has some shortage such as poor impact resistance, low residual compressive strength, which have a negative influence on the performance of aircraft structures. In this paper, simulations of low-velocity impact and compression process of composite laminates with AL ply has been done. Finite element software ABAQUS/Explicit has been adopted to simulate the 3.5J impact and compression. A certain number of composite laminates with different thickness of AL ply has been tested, equal weight traditional composite laminates also been simulated as comparison. The simulation results show that AL ply with certain thickness can improve the residual compressive strength.

You might also be interested in these eBooks
Advanced Technologies and Solutions in Industry View Preview

Info:

Periodical:

Advanced Materials Research (Volume 710)

Pages:

186-190

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.710.186

Citation:

Cite this paper

Online since:

June 2013

Authors:

Hong Peng Li, Fang Lue Huang, Jin Hai Hu, Ying Jun Lv

Keywords:

Composite, Fiber-Meal Laminate, Low Velocity Impact (LVI), Residual Compressive Strength

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2013 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

References

[1] Zhen Shen. Xiaojing Zhang: Introduction to design and verification for composite aircraft structures (Shanghai Jiao Tong University Press, Shanghai 2011).

Google Scholar

[2] M.Meo, A.J. Morris, R.Vignjevic and G.Marengo: Composite structures. Forum Vol. 62 (2003), pp.353-360.

DOI: 10.1016/j.compstruct.2003.09.035

Google Scholar

[3] J.P. Hou, N.Petrinic, C.Ruiz and S.R. Hallett: Composites science and technology. Forum Vol. 60(2000), pp.273-281.

Google Scholar

[4] J.P. Hou, N.Petrinic, and C.Ruiz: Composites science and technology. Forum Vol. 61(2001), pp.2069-2074.

Google Scholar

[5] R. K. Luo: Composites science and technology. Forum Vol. 60(2000), pp.49-58.

Google Scholar
