Finite Element Analysis about the Influence that High-Speed Motorized Spindle Spindle System Material has on its Temperature Field

Abstract:

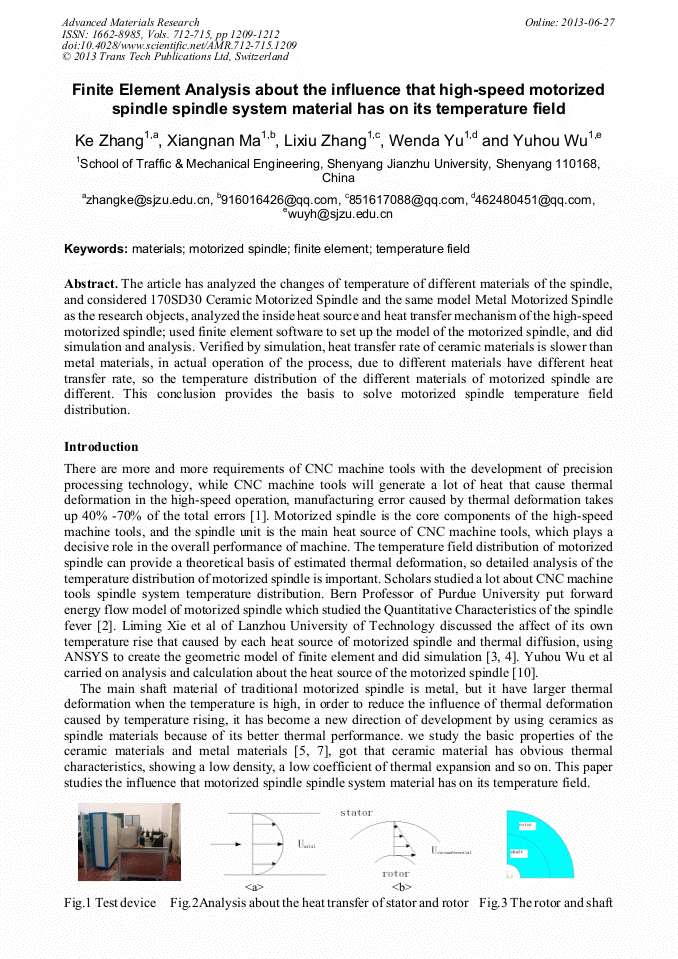

The article has analyzed the changes of temperature of different materials of the spindle, and considered 170SD30 Ceramic Motorized Spindle and the same model Metal Motorized Spindle as the research objects, analyzed the inside heat source and heat transfer mechanism of the high-speed motorized spindle; used finite element software to set up the model of the motorized spindle, and did simulation and analysis. Verified by simulation, heat transfer rate of ceramic materials is slower than the metallic materials, in actual operation of the process, due to different materials have different heat transfer rate, so the temperature distribution of the different materials of motorized spindle are different. This conclusion provides the basis to solve motorized spindle temperature field distribution.
