Preparation of Novel Corona-Resistance Polyimide/Spherical SiO₂ Hybrid Films

Abstract:

In this study, a novel type of corona-resistance polyimide/spherical SiO₂ hybrid films based on 3,3,4,4-biphenyltetracarboxylic dianhydride (s-BPDA) and 1,3-bis (4-aminophenoxy) benzene (1,3,4-APB) was synthesized by incorporation with different loadings of spherical SiO₂ particles via in-situ polymerization. All the films were prepared by a so called two-step procedure and finally cured at 300°C. TEM images showed the SiO₂ particles were homogeneously dispersed in the polyimide matrix by means of ultrasonic method and the addition of coupling agent. Experimental results indicated that the hybrid films with much higher inorganic content exhibited good thermal and mechanical properties as well as low water absorption. Especially, the dielectric strength and electric aging time of the hybrid films were obviously enhanced, which was attributed to the highly dispersed spherical SiO₂. The morphology changes of the film surface caused by the electric field were also studied by scanning electron microscope (SEM).

You might also be interested in these eBooks

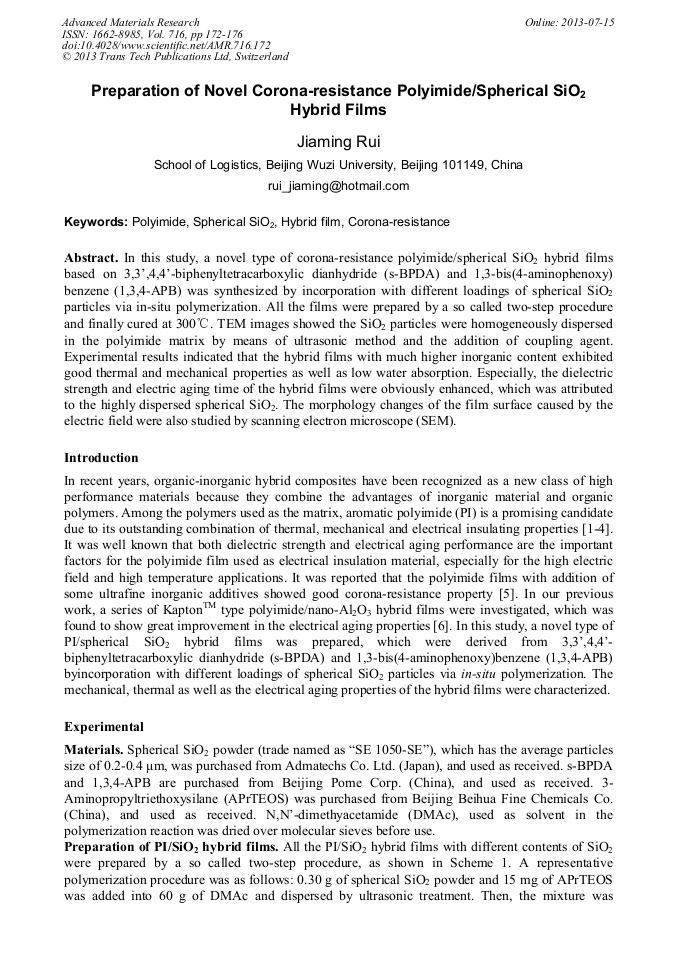

View Preview

Info:

Periodical:

Advanced Materials Research (Volume 716)

Pages:

172-176

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.716.172

Citation:

Cite this paper

Online since:

July 2013

Authors:

Jia Ming Rui

Keywords:

Corona-Resistance, Hybrid Film, Polyimide, Spherical SiO₂

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] J.L. Hedrick, H.J. Cha, R.D. Miller, D.Y. Yoon, H.R. Brown, S. Srinivasan, R. Di Pietro, R.F. Cook, J.P. Hummel, D.P. Klaus, E.G. Liniger and E.E. Simonyi: Macromolecules Vol. 30 (1997), p.8512.

DOI: 10.1021/ma970135y

Google Scholar

[2] Y. Chen and J.O. Iroh: Chem Mater Vol. 11 (1999), p.1218.

Google Scholar

[3] Z.K. Zhu, Y. Yang, J. Yin and Z.N. Qi: J Appl Polym Sci Vol. 73 (1999), p.2977.

Google Scholar

[4] W.L. Qiu, Y.J. Luo, F.T. Chen, Y.Q. Duo and H.M. Tan: Polymer Vol. 44 (2003), p.5821.

Google Scholar

[5] R.E. Draper, G.P. Jones, R.H. Rehder and M. Stutt, U.S. Patent 5,989,702. (1999)

Google Scholar

[6] J.T. Wu, S.Y. Yang, S.Q. Gao, A.J. Hu, J.G. Liu and L. Fan: Eur Polym J Vol. 41 (2005), p.73.

Google Scholar
