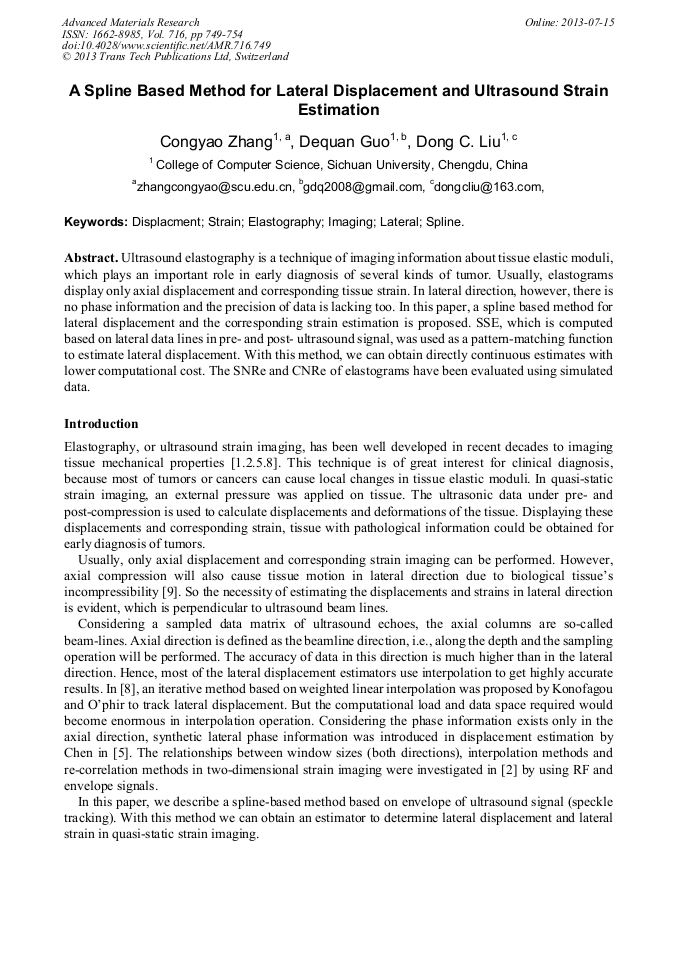

A Spline Based Method for Lateral Displacement and Ultrasound Strain Estimation

Abstract:

Ultrasound elastography is a technique of imaging information about tissue elastic moduli, which plays an important role in early diagnosis of several kinds of tumor. Usually, elastograms display only axial displacement and corresponding tissue strain. In lateral direction, however, there is no phase information and the precision of data is lacking too. In this paper, a spline based method for lateral displacement and the corresponding strain estimation is proposed. SSE, which is computed based on lateral data lines in pre-and post-ultrasound signal, was used as a pattern-matching function to estimate lateral displacement. With this method, we can obtain directly continuous estimates with lower computational cost. The SNRe and CNRe of elastograms have been evaluated using simulated data.

• Periodical: Advanced Materials Research (Volume 716)
• Pages: 749-754
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.716.749
• Online since: July 2013
• Authors: Cong Yao Zhang, De Quan Guo, Dong C. Liu
• Keywords: Displacment, Elastography, Imaging, Lateral, Spline, Strain

References

[1] O'phir J, Cespedes I, Ponnekanti H, Yazdi Y and Li X, Elastography: a quantitative method for imaging the elasticity of biological tissues, Ultrason Imaging, vol. 13, no. 2 (1991), pp.111-134.

DOI: 10.1177/016173469101300201

[2] Richard G.P. Lopata, Maartje M. Nillesen, Hendrik H.G. Hansen, Inge H. Gerrits, Johan M. Thijssen, and Chris L. De Korte, Performance evaluation of methods for two-dimensional displacement and strain estimation using ultrasound radio frequency data, Ultrasound in Med. & Biol., Vol. 35, No. 5 (2009), p.796–812.

DOI: 10.1016/j.ultrasmedbio.2008.11.002

[3] M. Unser, Splines: A perfect fit for signal and image processing, IEEE Signal Processing Mag., vol. 16 (1999), p.22–38.

DOI: 10.1109/79.799930

[4] F. Viola and W. F.Walker, A spline-based algorithm for continuous time-delay estimation using sampled data, IEEE Trans. Ultrason., Ferroelect., Freq. Contr., vol. 52 (2005), p.80–93.

DOI: 10.1109/tuffc.2005.1397352

[5] Chen XC, Zohdy MJ, Emelianov SY, O'Donnell M. Lateral speckle tracking using synthetic lateral phase, IEEE Trans. Ultrason. Ferroelectr. Freq. Control. vol 51 (2004), p.540–550.

DOI: 10.1109/tuffc.2004.1320827

[6] Luo JW, Bai J, He P and Ying K, A axial strain calculation using a low-pass digital differentiator in ultrasound elastograhy, IEEE Trans Ultrason Ferroelec Freq Control,vol. 51, No. 9 (2004), pp:1119-1127.

DOI: 10.1109/tuffc.2004.1334844

[7] T.Varg hese and J. Ophir, A theoretical framework for performance characterization of elastography: the strain filter, IEEE Trans. Ultrason. Ferroelectr. Gre. Control, vol.44, no.1 (1997), pp.164-172.

DOI: 10.1109/58.585212

[8] Elisa Konofagou, Jonathan Ophir, A new elastography method for estimation and imaging of lateral displacemetns, lateral strains, corrected axial strains and poisson's ratios in tissues, Ultrasound in Med. & Biol. vol. 24, no. 8 (1998), pp.1183-1199.

DOI: 10.1016/s0301-5629(98)00109-4

[9] Mark A. Lubinski, Stanislav Y. Emelianov, K. R. Raghavan, Andrew E. Yagle, Andrei R. Skovoroda, and Matthew O'Donnell, Lateral displacement estimation using tissue incompressibility, IEEE Trans Ultrason Ferroelec Freq Control, vol. 43, no. 2 (1996), pp.247-256.

DOI: 10.1109/58.485950

[10] M. Bilgen, Target detectability in acoustic elastography, IEEE Trans.Ultrason. Ferroelectr. Freq. Control, vol. 46, no. 5 (1999), pp.1128-1133.

DOI: 10.1109/58.796118
