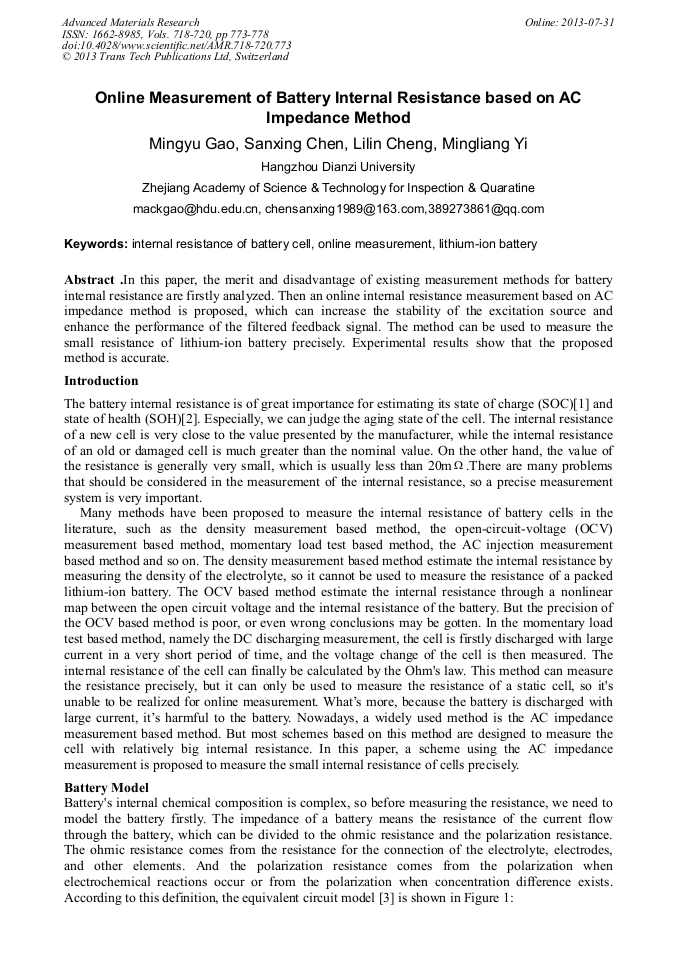

Online Measurement of Battery Internal Resistance Based on AC Impedance Method

Abstract:

In this paper, the merit and disadvantage of existing measurement methods for battery internal resistance are firstly analyzed. Then an online internal resistance measurement based on AC impedance method is proposed, which can increase the stability of the excitation source and enhance the performance of the filtered feedback signal. The method can be used to measure the small resistance of lithium-ion battery precisely. Experimental results show that the proposed method is accurate.

• Periodical: Advanced Materials Research (Volumes 718-720)
• Pages: 773-778
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.718-720.773
• Online since: July 2013
• Authors: Ming Yu Gao, San Xing Chen, Li Lin Cheng, Ming Liang Yi
• Keywords: Internal Resistance of Battery Cell, Lithium-Ion Battery, Online Measurement

References

[1] S. Piller, M. Perrin, A. Jossen, "Methods for state-of-charge determination and their applications." [J] . Journal of Power Sources. Vol. 116, pp.110-117

[2] Alvin J. Salkind, Craig Fennie, Pritpal Singh et al.Determination of state-of-charge and state-of-health of batteries by fuzzy logic methodology [J]. Journal of Power Sources, Vol 80, 1999, pp.293-300

DOI: 10.1016/s0378-7753(99)00079-8

[3] Tetsuro Okoshi, Keizo Yamada, Tokiyoshi Hirasawa, Akihiko Emori, "Battery condition monitoring (BCM) technology about lead-acid batteries"[J], J. Power Source 158 (2006) 874-878

DOI: 10.1016/j.jpowsour.2005.11.008

[4] Zhang Qingfu, "The on-line monitor technology for battery internal resistance and its actual application" [J], Chinese Journal of Power Sources application, 2006, 9 (6):57-61

[5] Liding Chen. Waveform Signal Generator Produced by ICL8038[J] International Electronic Elements，1999（3）：37-38

[6] Liwei Li, Fang Zhang, Ping Ma. Study and Realization on the Internal Impedance of Single Cell On-line Detector, IEEE Transactions on International Conference, page:2718∼2721, Sep. (2008)

DOI: 10.1109/ical.2008.4636634

[7] Zhiwei Huang .The Design of the Modem[M] Xi'an: Xi'an Electronic Sience &Technology University Press

[8] Guanglin Liu. The Conspectus of Technics on Battery [M]. Beijing: Mechanician Industry Publishing Company, (2008)

[9] Martin Coleman, William Gerard Hurley. An Improved Battery haracterization Method Using A Two-Pulse Load Test, IEEE Transactions on evergy conversion, vol.23, NO.2:708∼713, June.(2008)

DOI: 10.1109/tec.2007.914329

[10] MA Chao, TIAN Shulin Realization of internal resistance measurement of lithium battery with auto calibration technology.CHINA MEASUREMENT TECHNOLOGY.2006，32(5): 36-38
