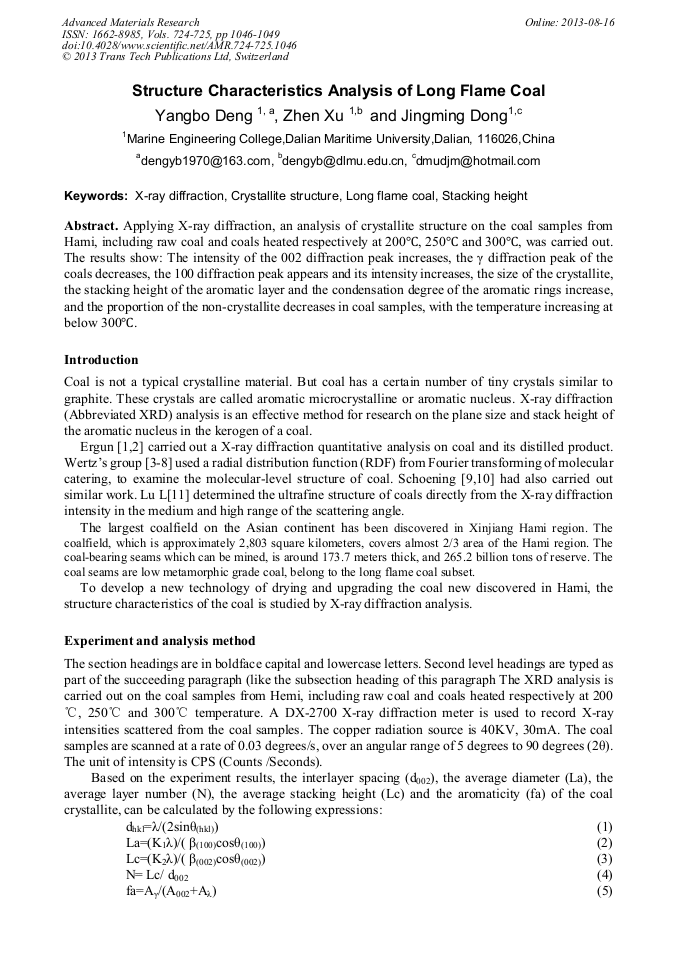

Structure Characteristics Analysis of Long Flame Coal

Abstract:

Applying X-ray diffraction, an analysis of crystallite structure on the coal samples from Hami, including raw coal and coals heated respectively at 200°C, 250°C and 300°C, was carried out. The results show: The intensity of the 002 diffraction peak increases, the γ diffraction peak of the coals decreases, the 100 diffraction peak appears and its intensity increases, the size of the crystallite, the stacking height of the aromatic layer and the condensation degree of the aromatic rings increase, and the proportion of the non-crystallite decreases in coal samples, with the temperature increasing at below 300°C.

• Periodical: Advanced Materials Research (Volumes 724-725)
• Pages: 1046-1049
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.724-725.1046
• Online since: August 2013
• Authors: Yang Bo Deng, Zhen Xu, Jing Ming Dong
• Keywords: Crystallite Structure, Long Flame Coal, Stacking Height, X-Ray Diffraction (XRD)

References

[1] S. Ergun and V.H. Tiensuu. Interpretation of the intensities of X-rays scattered by coals. Fuel Vol.38 (1959), p.64

[2] Ergun S. Graphite like layers in coals and high vacuum distillation products. Fuel Vol.37 (1958), p.365

[3] D.L. Wertz. X-ray analysis of the Argonne premium coals. 1. Use of absorption/diffraction methods. Energy & Fuels Vol.4 (1990), p.442

DOI: 10.1021/ef00023a006

[4] D.L. Wertz, C.B. Smithhart and S.L. Wertz. X-ray mass absorption coefficients: measurements and uses in the quantitative of charactive diffraction analysis of pyrite in coals. 38th applications of X-ray analysis, Denver, CO: Plenum (1989).

DOI: 10.1154/s037603080001990x

[5] D.L. Wertz and M. Bissell. One-dimensional description of the average polycyclic aromatic unit in Pocahontas no. 3 coal: an X-ray scattering study. Fuel Vol.74 (1995), p.1431

DOI: 10.1016/0016-2361(95)00107-g

[6] D.L. Wertz and M. Bissel. Analysis of the average poly-cyclic aromatic unit in meta-anthracite coal using conventional X-ray powder diffraction and intensity separation methods. 42nd applications of X-ray analysis, Denver, CO: Plenum (1993).

DOI: 10.1007/978-1-4615-2528-8_60

[7] D.L. Wertz and M. Bissell. Relating the nonideal diffraction from the graphene layer stacking peak to the aliphatic carbon abundance in bituminous coals. Energy & Fuels Vol.8 (1994),p.613–7.

DOI: 10.1021/ef00045a016

[8] D.L. Wertz. X-ray scattering analysis of the average polycyclic aromatic unit in Argonne premium coal 401. Fuel Vol.77 (1998), p.43

DOI: 10.1016/s0016-2361(97)00150-6

[9] FRL Schoening. X-ray structure of some South African coals before and after heat treatment at 500 and 1000℃. Fuel Vol.62 (1983),p.1315

DOI: 10.1016/s0016-2361(83)80016-7

[10] FRL Schoening. X-ray structure parameters of coal. Fuel Vol.61 (1982),p.695

[11] L. Lu, V. Sahajwalla, C. Kong and D. Harris. Quantitative X-ray diffraction analysis and its application to various coals. Carbon Vol.39 (2001), p.1821

DOI: 10.1016/s0008-6223(00)00318-3

[12] T.F. Yen, J.G. Erdman and S.S. Pollack. Investigation of the structure of petroleum asphaltenes by X-ray diffraction. Anal. Chem. Vol.33 (1961), p.1587

DOI: 10.1021/ac60179a039
