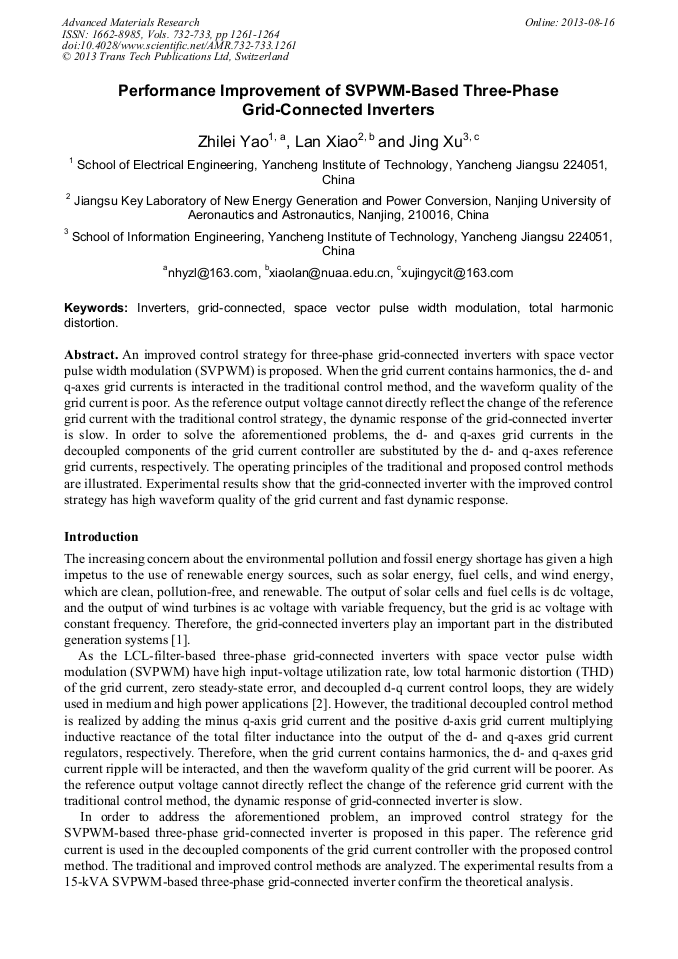

Performance Improvement of SVPWM-Based Three-Phase Grid-Connected Inverters

Abstract:

An improved control strategy for three-phase grid-connected inverters with space vector pulse width modulation (SVPWM) is proposed. When the grid current contains harmonics, the d-and q-axes grid currents is interacted in the traditional control method, and the waveform quality of the grid current is poor. As the reference output voltage cannot directly reflect the change of the reference grid current with the traditional control strategy, the dynamic response of the grid-connected inverter is slow. In order to solve the aforementioned problems, the d-and q-axes grid currents in the decoupled components of the grid current controller are substituted by the d-and q-axes reference grid currents, respectively. The operating principles of the traditional and proposed control methods are illustrated. Experimental results show that the grid-connected inverter with the improved control strategy has high waveform quality of the grid current and fast dynamic response.

• Periodical: Advanced Materials Research (Volumes 732-733)
• Pages: 1261-1264
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.732-733.1261
• Online since: August 2013
• Authors: Zhi Lei Yao, Lan Xiao, Jing Xu
• Keywords: Grid Connected, Inverter, Space Vector Pulse Width Modulation, Total Harmonic Distortion (THD)

References

[1] Z. Yao and L. Xiao: IEEE Trans. Power Electron. vol. 27 (2012), p.3310–3318.

[2] A. Timbus, M. Liserre, R. Teodorescu, P. Rodriguez and F. Blaabjerg: IEEE Trans. Power Electron. vol. 24 (2009), p.654–664.

DOI: 10.1109/tpel.2009.2012527

[3] M. Liserre, F. Blaabjerg and S. Hansen: IEEE Trans. Ind. Appl. vol. 41 (2005), p.1281–1291.

[4] Z. Wang and L. Chang: IEEE Trans. Power Electron. vol. 23 (2008), p.1118–1125.

[5] V. Soares, P. Verdelho and G. D. Marques: IEEE Trans. Power Electron. vol. 15 (2000), p.660–669.
