Preparation and Characterization of Electrospun PVDF/PMMA Composite Fibrous Membranes-Based Separator for Lithium-Ion Batteries

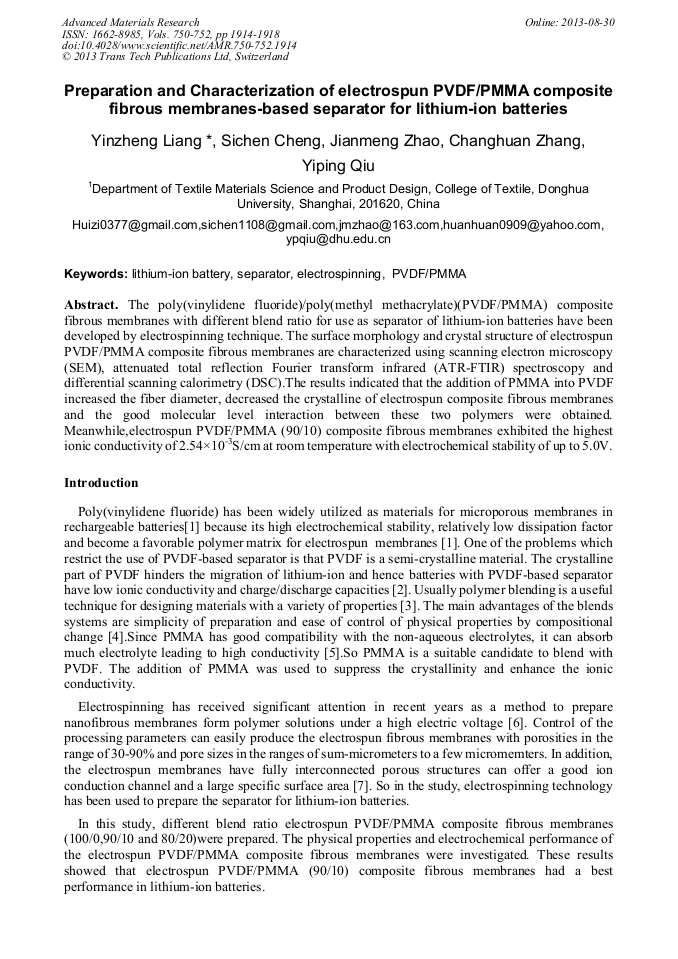

Article Preview

Abstract:

The poly (vinylidene fluoride)/poly (methyl methacrylate)(PVDF/PMMA) composite fibrous membranes with different blend ratio for use as separator of lithium-ion batteries have been developed by electrospinning technique. The surface morphology and crystal structure of electrospun PVDF/PMMA composite fibrous membranes are characterized using scanning electron microscopy (SEM), attenuated total reflection Fourier transform infrared (ATR-FTIR) spectroscopy and differential scanning calorimetry (DSC).The results indicated that the addition of PMMA into PVDF increased the fiber diameter, decreased the crystalline of electrospun composite fibrous membranes and the good molecular level interaction between these two polymers were obtained. Meanwhile,electrospun PVDF/PMMA (90/10) composite fibrous membranes exhibited the highest ionic conductivity of 2.54×10-3S/cm at room temperature with electrochemical stability of up to 5.0V.

You might also be interested in these eBooks
Advanced Engineering Materials III View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 750-752)

Pages:

1914-1918

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.750-752.1914

Citation:

Cite this paper

Online since:

August 2013

Authors:

Yin Zheng Liang, Si Chen Cheng, Jian Meng Zhao, Chang Huan Zhang, Yi Ping Qiu

Keywords:

Electro-Spinning, Lithium-Ion Battery, PVDF/PMMA, Separator

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2013 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

References

[1] Z Jiang, B Carroll, KM Abraham: Eletrochim. Acta 1997; 42: 2667-2677.

Google Scholar

[2] S Abbrent, J Pletstil, D Hlavata, J Lindgren , J Tegenfeldt and A Wendsjo. Polymer 2001; 42: 1407-1416.

DOI: 10.1016/s0032-3861(00)00517-6

Google Scholar

[3] M Tang, WR Liau: POLYM.J. Vol 36(2000), pp.2597-2603.

Google Scholar

[4] CG Wu, MI Lu, HJ Chuang : Polymer. Vol 26(2005), pp.5929-5938.

Google Scholar

[5] WZ Ma, J Zhang, XL Wang: Appl Surface Sci. Vol 253(2007), pp.8377-88.

Google Scholar

[6] X Wang, C Drew, SH Lee, KJ Senecal, J Kumer and LA Samuelson. : Nano Lett. Vol 2(2002), pp.1273-1275.

Google Scholar

[7] N Bhardwaj, SC Kundu, : Biotechnol Adv. Vol 28(2010), pp.325-347.

Google Scholar

[8] HR Jung, DH Ju, WJ Lee, XW Zhang and R Ketek, : Electrochim. Acta. Vol 54 (2009) , pp.3630-3637.

Google Scholar
