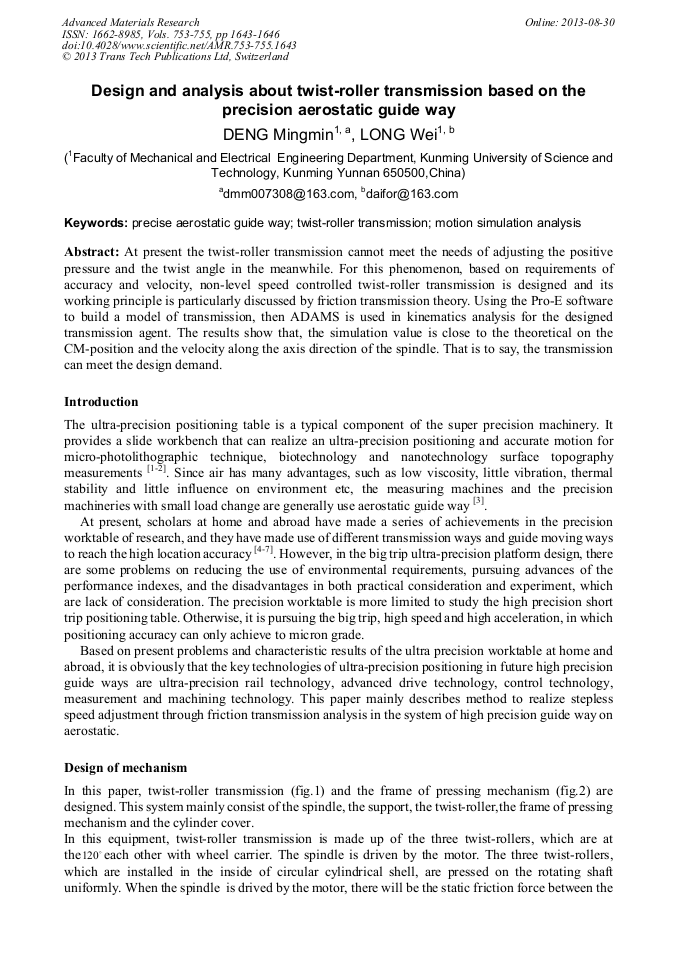

Design and Analysis about Twist-Roller Transmission Based on the Precision Aerostatic Guide Way

Abstract:

At present the twist-roller transmission cannot meet the needs of adjusting the positive pressure and the twist angle in the meanwhile. For this phenomenon, based on requirements of accuracy and velocity, non-level speed controlled twist-roller transmission is designed and its working principle is particularly discussed by friction transmission theory. Using the Pro-E software to build a model of transmission, then ADAMS is used in kinematics analysis for the designed transmission agent. The results show that, the simulation value is close to the theoretical on the CM-position and the velocity along the axis direction of the spindle. That is to say, the transmission can meet the design demand.
