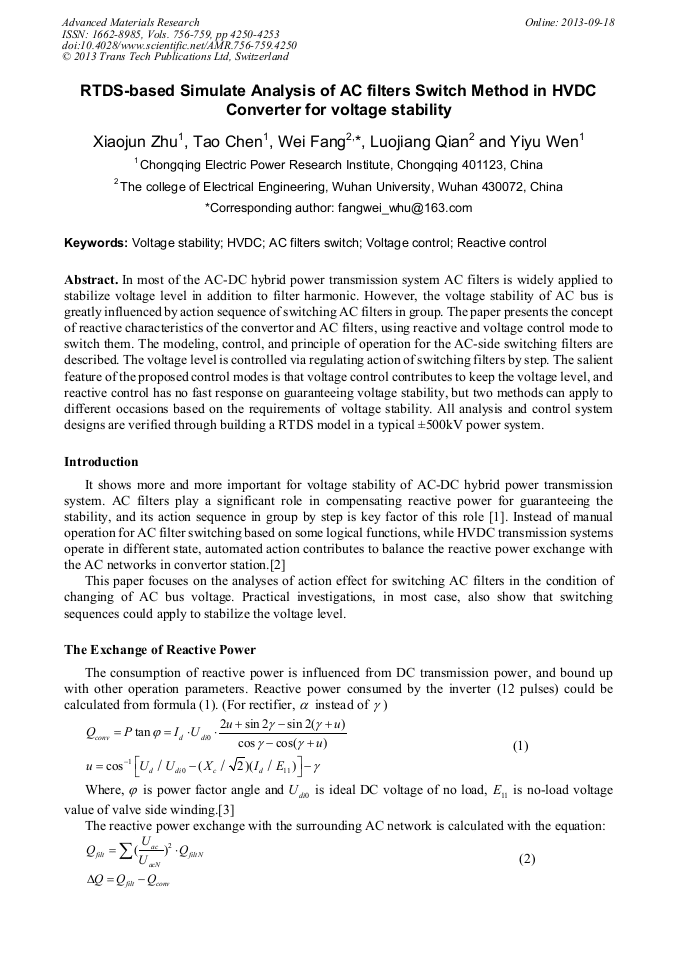

RTDS-Based Simulate Analysis of AC Filters Switch Method in HVDC Converter for Voltage Stability

Abstract:

In most of the AC-DC hybrid power transmission system AC filters is widely applied to stabilize voltage level in addition to filter harmonic. However, the voltage stability of AC bus is greatly influenced by action sequence of switching AC filters in group. The paper presents the concept of reactive characteristics of the convertor and AC filters, using reactive and voltage control mode to switch them. The modeling, control, and principle of operation for the AC-side switching filters are described. The voltage level is controlled via regulating action of switching filters by step. The salient feature of the proposed control modes is that voltage control contributes to keep the voltage level, and reactive control has no fast response on guaranteeing voltage stability, but two methods can apply to different occasions based on the requirements of voltage stability. All analysis and control system designs are verified through building a RTDS model in a typical ±500kV power system.

• Periodical: Advanced Materials Research (Volumes 756-759)
• Pages: 4250-4253
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.756-759.4250
• Online since: September 2013
• Authors: Xiao Jun Zhu, Tao Chen, Wei Fang, Luo Jiang Qian, Yi Yu Wen
• Keywords: AC Filters Switch, HVDC, Reactive Control, Voltage Control, Voltage Stability

References

[1] Hanlin Wang, Lan Li and Anping Wu, Analysis of the capacitive reactive power in convertor station of ±800kV Xiangjiaba HVDC, Sichuan Electrical Technology, vol. 31. pp.9-11, No. 3, (2008).

[2] Luojiang Qian, Hongying Deng and Yu Tao, RTDS Testing Model of Lingbao BTB HVDC Engineering, High Voltage Engineering, vol. 31, pp.45-47, No. 12, (2005).

[3] Xijie Dai, Guoyan Wu, Lisheng Zhao, Baoshan Ni and Zhida Zhao, Direct Current Power Transmission, Hydraulic & Electric Issue, (1985).

[4] Liang Ma, Caixia Rong and Luojiang Qian, Technology Report-Analysis of Operation Condition on Reactive Power Compensate Equipments in Substation and Study of Preventive Measures against Failures, Jiangxi EPRI, (2008).

[5] Fischer de Toledo. Paulo, Zaki Taam. Maurucio, Andersson and Goran, Reactive Power Balance and AC Filter Switching Schemes of The Itaipu HVDC Converter Stations, International Symposium on HVDC Technology, (1983).
